AngleBisector

✖
`AngleBisector`

[Experimental]

✖

AngleBisector[{q₁,p,q₂}]

gives the bisector of the interior angle at p formed by the triangle with vertex points p, q₁ and q₂.

✖

AngleBisector[{q₁,p,q₂},"type"]

gives the angle bisector of the specified type.

Details

AngleBisector gives an InfiniteLine object.
The q_i and p in AngleBisector[{q₁,p,q₂}] can be lists of coordinates or explicit Point objects.
AngleBisector[p{q₁,q₂}] is equivalent to AngleBisector[{q₁,p,q₂}].
AngleBisector gives the line that divides the angle into two equal angles and that passes through the point p.

The following bisector type specifications "type" can be given:
"Interior" bisector of the interior angle of the triangle at p

"Exterior" bisector of the exterior angle of the triangle at p
AngleBisector only works in 2D.
AngleBisector can be used with symbolic points in GeometricScene.

Examples

open allclose all

Basic Examples (1)Summary of the most common use cases

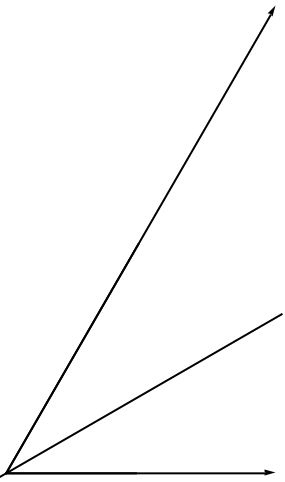

Calculate an angle bisector:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-hi7kyk

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0fq65i2z32j0u-e61lmr

Out[2]=2

Scope (2)Survey of the scope of standard use cases

Find an interior angle bisector:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-86fb9m

Out[1]=1

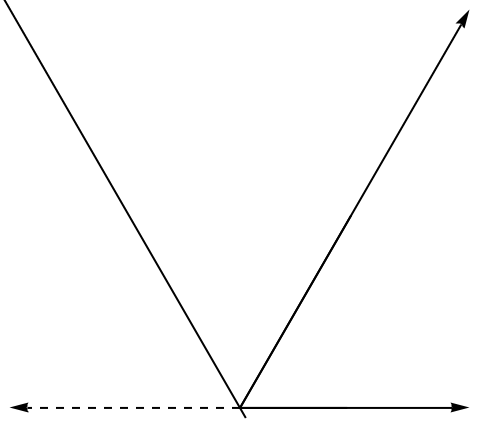

Find an exterior angle bisector:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-4a7ghx

Out[1]=1

Properties & Relations (4)Properties of the function, and connections to other functions

AngleBisector finds the interior angle bisector by default:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-ybhc

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0fq65i2z32j0u-i7i7wo

Out[2]=2

The angle bisector divides the angle into two equal angles:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-gda6u4

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0fq65i2z32j0u-5iw9ao

Out[2]=2

In[3]:=3

✖

https://wolfram.com/xid/0fq65i2z32j0u-201o02

Out[3]=3

In[4]:=4

✖

https://wolfram.com/xid/0fq65i2z32j0u-3pml7s

Out[4]=4

The exterior angle bisector divides the exterior angle into two equal angles:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-qlwr32

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0fq65i2z32j0u-5u2htu

Out[2]=2

In[3]:=3

✖

https://wolfram.com/xid/0fq65i2z32j0u-lm6ofl

Out[3]=3

In[4]:=4

✖

https://wolfram.com/xid/0fq65i2z32j0u-zheqb4

Out[4]=4

TriangleConstruct[{a,b,c},"AngleBisector"] is equivalent to AngleBisector[{a,b,c}]:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-qdoui3

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0fq65i2z32j0u-m7u0mi

Out[2]=2

Possible Issues (2)Common pitfalls and unexpected behavior

The three points must be distinct:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-8xpomj

Out[1]=1

AngleBisector only works in 2D:

In[1]:=1

✖

https://wolfram.com/xid/0fq65i2z32j0u-119biw

Out[1]=1
