AppellF2

AppellF2[a,b1,b2,c1,c2,x,y]

is the Appell hypergeometric function of two variables .

Details

  • AppellF2 belongs to the family of Appell functions that generalize the hypergeometric series and solves the system of Horn PDEs with polynomial coefficients.
  • Mathematical function, suitable for both symbolic and numerical manipulation.
  • has a primary definition through the hypergeometric series , which is convergent inside the region TemplateBox[{x}, Abs]+TemplateBox[{y}, Abs]<1.
  • The region of convergence of the Appell F2 series for real values of its arguments is the following:
  • In general, satisfies the following Horn PDE system »:
  • reduces to when or .
  • For certain special arguments, AppellF2 automatically evaluates to exact values.
  • AppellF2 can be evaluated to arbitrary numerical precision.

Examples

open allclose all

Basic Examples  (7)

Evaluate numerically:

The defining sum:

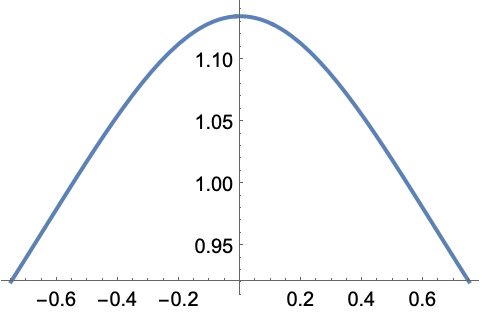

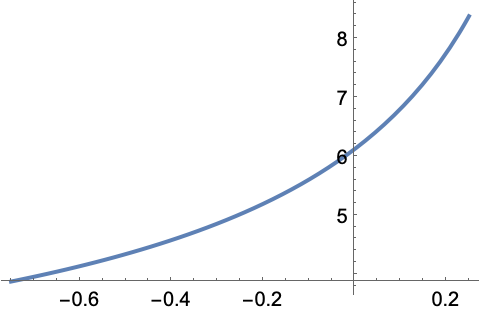

Plot over a subset of the reals:

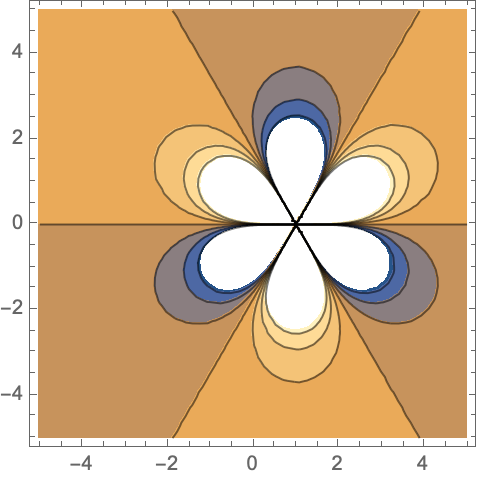

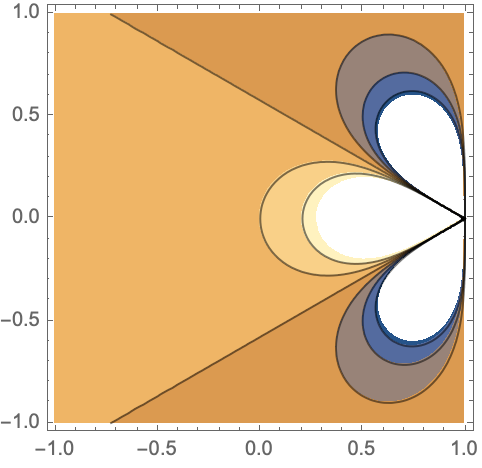

Plot over a subset of the complexes:

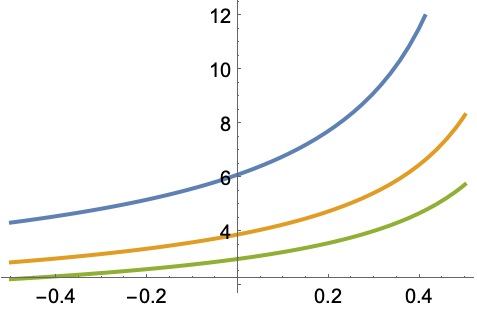

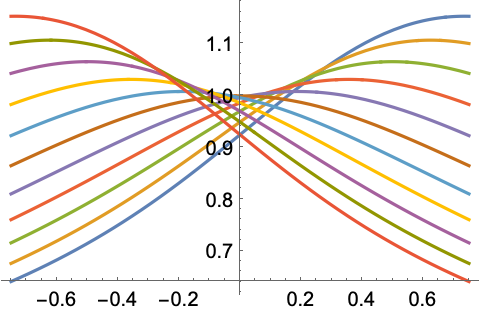

Plot a family of AppellF2 functions:

Series expansion at the origin:

TraditionalForm formatting:

Scope  (17)

Numerical Evaluation  (6)

Evaluate numerically:

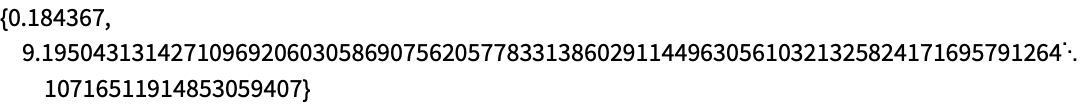

Evaluate to high precision:

The precision of the output tracks the precision of the input:

Complex number inputs:

Evaluate AppellF2 efficiently at high precision:

Compute average-case statistical intervals using Around:

Compute the elementwise values of an array:

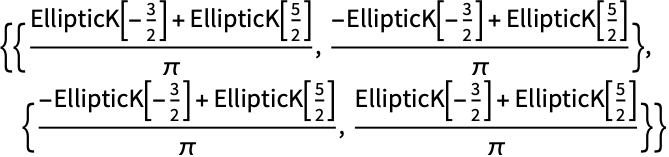

Or compute the matrix AppellF2 function using MatrixFunction:

Specific Values  (3)

Values at fixed points:

Simplify to Hypergeometric2F1 functions:

Value at zero:

Visualization  (3)

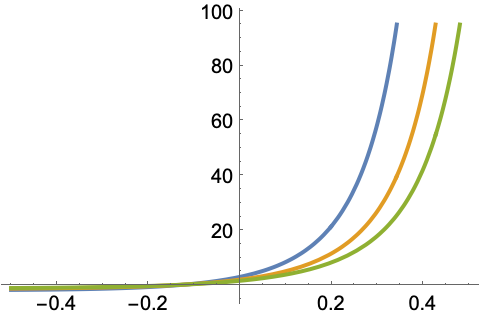

Plot the AppellF2 function for various parameters:

Plot AppellF2 as a function of its second parameter :

Plot the real part of :

Plot the imaginary part of :

Differentiation  (4)

First derivative with respect to x:

First derivative with respect to y:

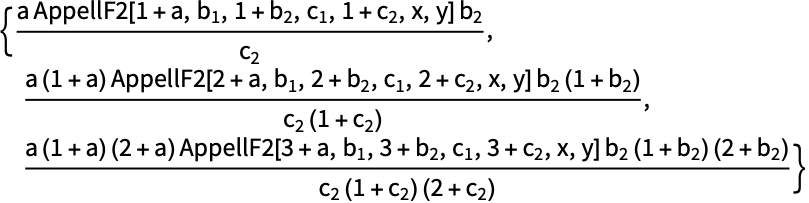

Higher derivatives with respect to y:

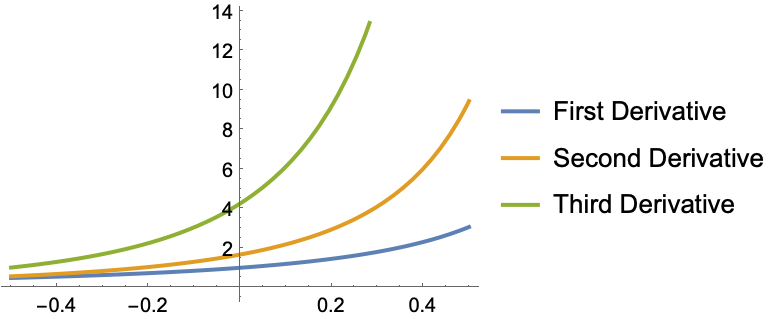

Plot the higher derivatives with respect to y when a=b1=b2=2, c1=c2=5 and x=1/5:

Formula for the ^(th) derivative with respect to y:

Series Expansions  (1)

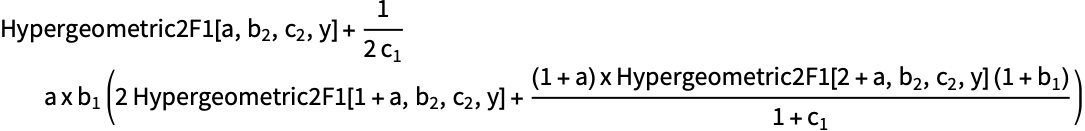

Find the Taylor expansion using Series:

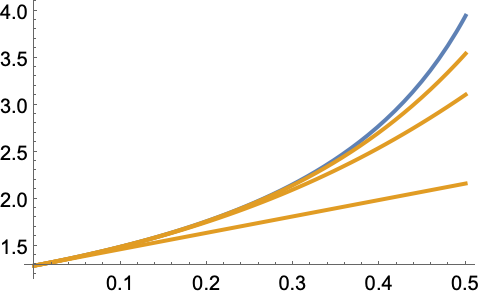

Plots of the first three approximations around :

Applications  (1)

The Appell function solves the following system of PDEs with polynomial coefficients:

Check that is a solution:

Neat Examples  (1)

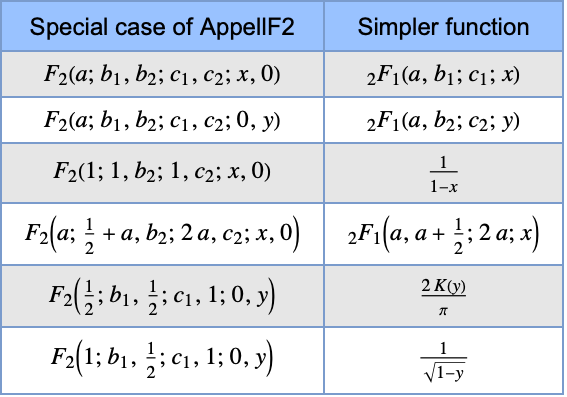

Many elementary and special functions are special cases of AppellF2:
