AudioChannelMix
✖
AudioChannelMix

Updated in 14.1

✖

mixes channels of audio by averaging and returns a center-panned stereo audio object.

✖
AudioChannelMix[audio,desttype]

mixes audio channels into the specified desttype.

✖
AudioChannelMix[video,…]

mixes audio channels of video.

Details

  • The following destination type desttype can be specified for an m channel audio object:
  • "Mono"mono signal, using the average channel value
    {"Mono",{w1,…,wm}}mono signal, using a weighted average
    "Stereo"stereo signal, using the average value and center panning
    {"Stereo",{w1,…,wm}}stereo signal, using weighted average and center panning
    {"Stereo",{w1,…,wm},{p1,…,pm}}stereo signal, using weighted average and specified panning
    nn-channel signal, evenly distributing the m input channels
    {n,mat}n-channel signal, using an arbitrary m×n distribution matrix mat
  • In the distribution matrix mat, the element wij is the amount of input channel i that goes into the output channel j.
  • The given weights wi can be given as scalar multipliers or in decibels.
  • A scalar multiplier wi is equivalent to in decibels.
  • For "Stereo" mixing, sinusoidal panning is used.
  • The AudioType of the returned object is either "Real32" or "Real".

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

Convert mono audio to stereo:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-d6moe5
In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-nmoeax
Out[2]=2

Downmix stereo audio to mono:

In[3]:=3
✖
https://wolfram.com/xid/0bc6k05vux36hgw-2h86as
Out[3]=3

Scope  (5)Survey of the scope of standard use cases

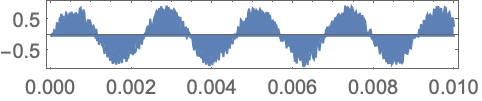

When downmixing to mono, the average of all input channels is used by default:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-4a2cli
In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-dpvymx
Out[2]=2

Specify the weights assigned to the input channels:

In[3]:=3
✖
https://wolfram.com/xid/0bc6k05vux36hgw-slyxue
Out[3]=3

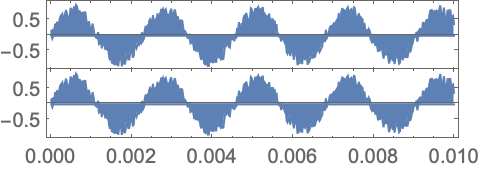

When mixing to stereo, the average of all input channels is replicated on both output channels by default:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-84wdvl
Out[1]=1

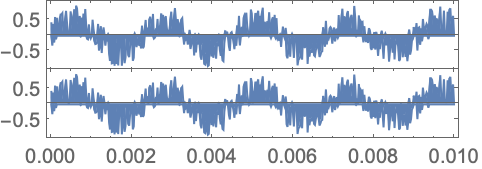

Use different weights for each input channel:

In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-hm3vwk
Out[2]=2

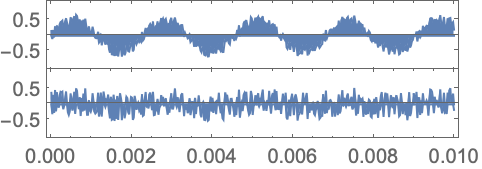

By default, all input channels are center panned. Specify the amount of panning for each input channel:

In[3]:=3
✖
https://wolfram.com/xid/0bc6k05vux36hgw-rpapqf
Out[3]=3

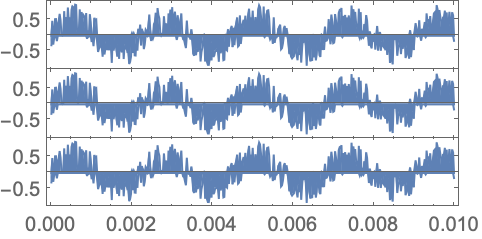

Create a three-channel signal by evenly mixing all input channels:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-0hgv6g
In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-c9d0nv
Out[2]=2

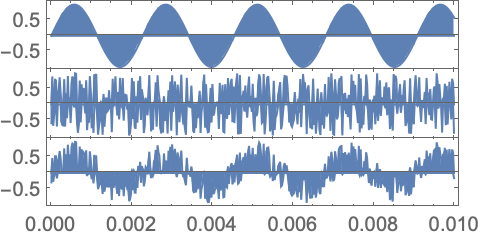

Specify all weights using a distribution matrix:

In[3]:=3
✖
https://wolfram.com/xid/0bc6k05vux36hgw-hhaawy
Out[3]=3

Specify weights in decibels:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-uiohph
Out[1]=1

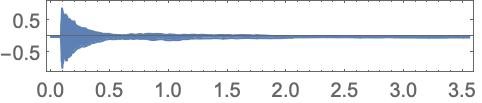

Process the audio track of a video:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-l7x9gq
Out[1]=1

Applications  (2)Sample problems that can be solved with this function

Conform the number of channels of a list of audio objects without using padding:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-tmyo4a
In[3]:=3
✖
https://wolfram.com/xid/0bc6k05vux36hgw-zyc4z1
Out[3]=3
In[4]:=4
✖
https://wolfram.com/xid/0bc6k05vux36hgw-6v5xa6
Out[4]=4
In[4]:=4
✖
https://wolfram.com/xid/0bc6k05vux36hgw-5yqt0
Out[4]=4

Distribute a mono Audio object to an arbitrary number of output channels:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-bqegyj
In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-850toc
Out[2]=2

Properties & Relations  (4)Properties of the function, and connections to other functions

Downmix a signal to a single channel using audio arithmetics:

In[31]:=31
✖
https://wolfram.com/xid/0bc6k05vux36hgw-enrtiz
In[32]:=32
✖
https://wolfram.com/xid/0bc6k05vux36hgw-m7utm9
Out[32]=32

If no weights are specified, the average of the input channels is replicated on all output channels:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-zrlfdx
In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-c0ivvq
Out[2]=2

Relation with Dot:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-3592ku
In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-3l6tx1
Out[2]=2

If the destination is "Stereo", the panning specification is equivalent to an AudioPan operation:

In[1]:=1
✖
https://wolfram.com/xid/0bc6k05vux36hgw-828ukx
In[2]:=2
✖
https://wolfram.com/xid/0bc6k05vux36hgw-xzlk8q
Out[2]=2
