BarcodeRecognize
✖
BarcodeRecognize

Updatedshow changeshide changes

✖

recognizes a barcode in image and returns it as a string.

✖
BarcodeRecognize[image,"prop"]

returns the specified property of the barcode.

✖
BarcodeRecognize[image,"prop",format]

recognizes barcodes of the specified format only.

✖
BarcodeRecognize[video,…]

recognizes barcodes in frames of video.

Details

  • BarcodeRecognize works with arbitrary grayscale and multichannel images, operating on the intensity value of each pixel.
  • If multiple barcodes exist in the image, a list of decoded barcodes is returned.
  • The following properties "prop" are supported:
  • "Data"recognized barcode data
    "Format"recognized format for the barcode
    "BoundingBox"approximate bounding box for the barcode as a Rectangle
    "Orientation"orientation used for recognizing the barcode
    {prop1,prop2,…}a list of properties
  • To extract a list of available properties and their values use:
  • "Properties"the list of available properties
    "PropertyAssociation"an association of all properties and their values
  • With BarcodeRecognize[image,"prop",{format1,format2,…}], a list of formats to include in barcode recognition can be specified.
  • BarcodeRecognize works with different types of one- and two-dimensional barcodes.
  • The following 1D barcode formats can be used for format:
  • "UPC"UPC-A12 numerical digits
    "UPCE"UPC-E8 numerical digits
    "EAN8"EAN-88 numerical digits
    "EAN13"EAN-1313 numerical digits
    "Code39"Code 39up to 43 characters of uppercase letters, numeric digits, special characters -, ., $, /, +, %, and space
    "Code93"Code 93uppercase letters, numeric digits, special characters -, ., $, /, +, %, and space
    "Code128"Code 128up to 80 ASCII characters
    "ITF"ITFup to 80 numerical digits of an even length
    "Codabar"Codabarnumerical digits and special characters :, /, +, .
    "GS1"GS1 DataBar (or RSS)14 numerical digits
    "ExpandedGS1"GS1 Expanded and Expanded Stacked74 digits or 41 alphanumeric characters in a single row or up to 11 stacked rows (GS1 DataBar Expanded Stacked)
  • The following 2D barcode formats can be used for format:
  • "QR"QR variable-length ASCII characters
    "PDF417"PDF417variable-length ASCII characters
    "Aztec"Aztec codevariable-length ASCII characters
    "DataMatrix"Data Matrix codevariable-length ASCII characters
    "MaxiCode"MaxiCodeup to 93 ASCII characters
    "MicroQR"MicroQRvariable-length ASCII characters

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

Recognize a UPC-A barcode:

In[11]:=11
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-xovw9j
Out[11]=11

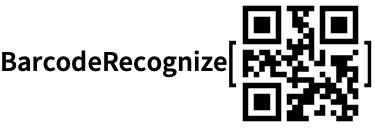

Recognize a QR barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-yin4z3
Out[1]=1

Scope  (23)Survey of the scope of standard use cases

Data  (2)

Recognize barcode in an image:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-yw80ql
Out[1]=1

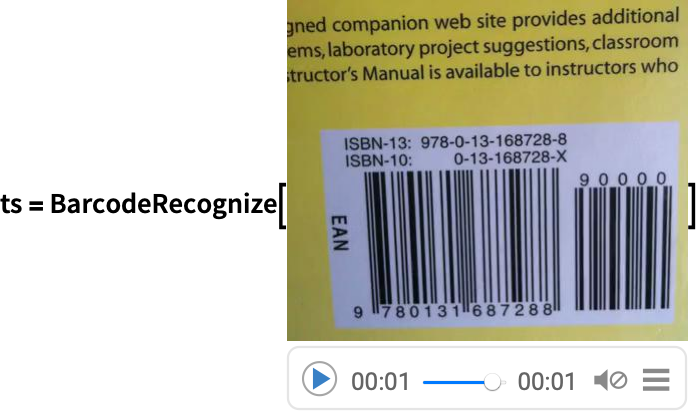

Recognize barcodes in frames of a video:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-bx9s5s
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-cbbatw
Out[2]=2

Formats  (17)

Recognize a UPC barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-wvuh2f
Out[1]=1

Recognize a UPC-E barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-x6y34x
Out[1]=1

Recognize an EAN-8 barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-477ivx
Out[1]=1

Recognize an EAN-13 barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-tr9kaq
Out[1]=1

Recognize a Code 39 barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-ucevze
Out[1]=1

Recognize a Code 93 barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-imta56
Out[1]=1

Recognize a Code 128 barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-ttioi2
Out[1]=1

Recognize an ITF barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-hmqbg7
Out[1]=1

Recognize a Codabar barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-yg0lmv
Out[1]=1

Generate a GS1 barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-nb3dw2
Out[1]=1

Recognize a GS1 (Expanded) barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-umvbgz
Out[1]=1

Recognize a QR barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-t9e90t
Out[1]=1

Recognize a MicroQR barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-b7w9n1
Out[1]=1

Recognize a PDF417 barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-n3xqyx
Out[1]=1

Recognize an Aztec barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-9eqhxt
Out[1]=1

Recognize a Data Matrix barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-bpye0q
Out[1]=1

Recognize a MaxiCode barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-zwtnlb
Out[1]=1

Properties  (4)

List all available properties:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-zpa5sy
Out[1]=1

Extract all properties for a QR code:

In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-g9qvzy
Out[2]=2

Return the decoded barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-droty5
In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-kvf0tm
Out[2]=2

Barcode format:

In[3]:=3
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-dg1b57
Out[3]=3

Compute and visualize the bounding box:

In[4]:=4
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-hz2dys
Out[4]=4
In[5]:=5
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-fli7nk
Out[5]=5

Recognize bounding box of multiple barcodes:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-s37g3m
In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-gb8brb
Out[2]=2

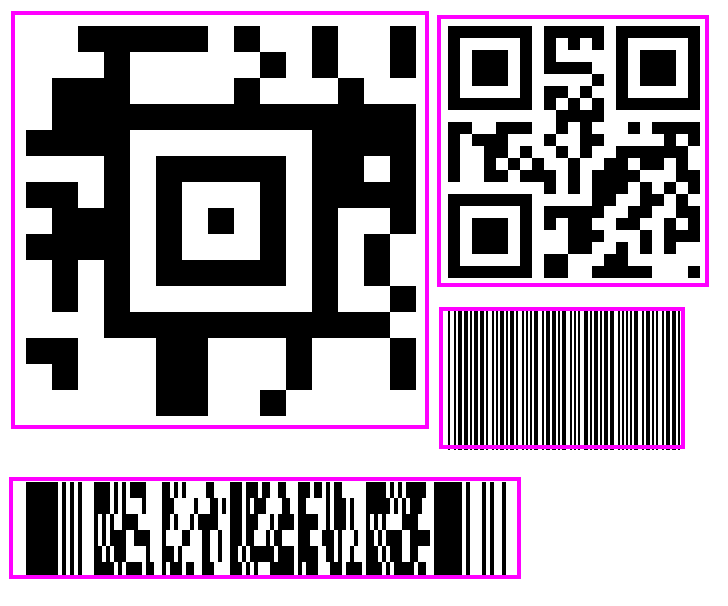

Highlight barcode bounding boxes:

In[3]:=3
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-yj53xt
Out[3]=3

Get the format with the error correction level:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-etnsn
Out[1]=1

Applications  (4)Sample problems that can be solved with this function

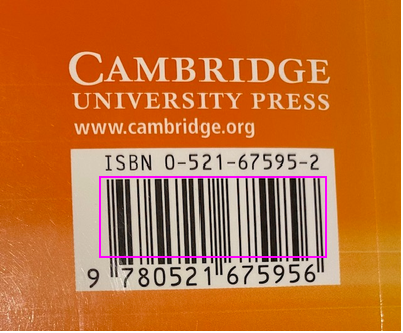

Read an ISBN from a scan of a book:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-mfw0cz
Out[1]=1

ISBN is an EAN-13 barcode:

In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-dv0n5g
Out[2]=2

Use Hyperlink to get a link from a QR code:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-fxs6tv
Out[1]=1

Decode a QR code:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-k6a8lb
Out[1]=1

Highlight the bounding box of the QR code:

In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-4bwj0v
Out[2]=2

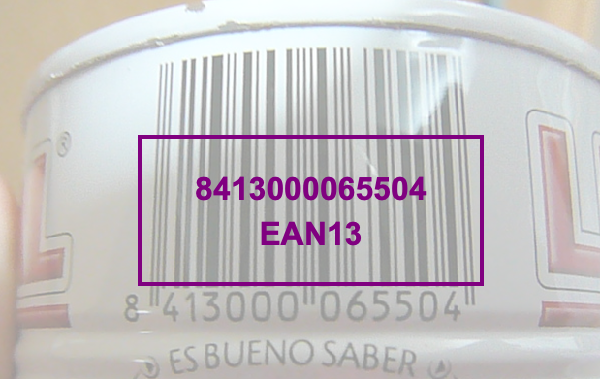

Recognize and annotate a recognized barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-6o0nq1
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-b3ufc
Out[2]=2

Properties & Relations  (4)Properties of the function, and connections to other functions

Recognize a noisy PDF417 code:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-mlt6bx
Out[1]=1

Recognize a damaged QR code:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-pain3d
Out[1]=1

Recognize a damaged UPC code:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-jrwmby
Out[1]=1

Use BarcodeImage to generate a barcode image:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-ottqk
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-dp0upj
Out[2]=2

Possible Issues  (1)Common pitfalls and unexpected behavior

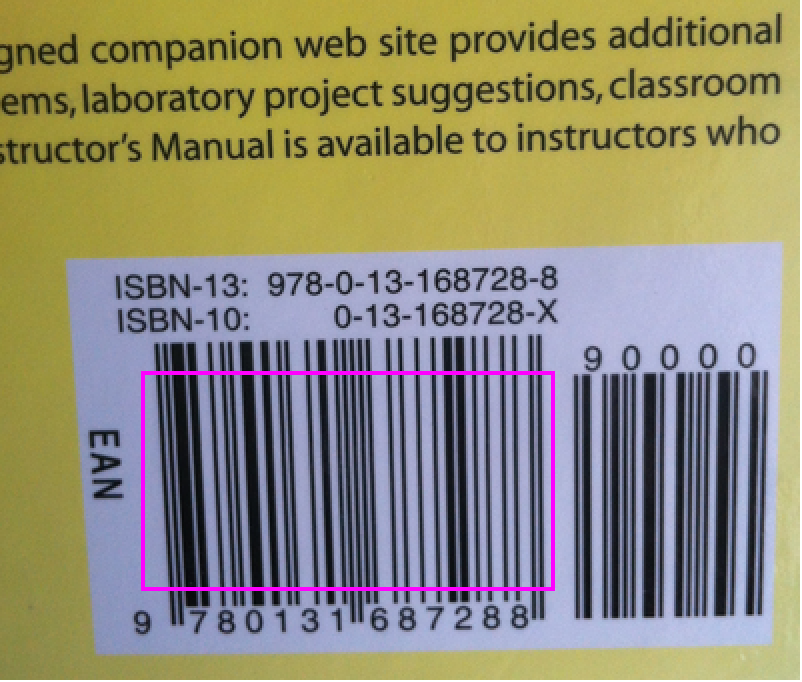

Book ISBNs typically have a price barcode that may be recognized with the main code:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-fpj110
In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-2w22zn
Out[2]=2

Computed bounding box may not be accurate:

In[3]:=3
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-gi0877
Out[3]=3

Neat Examples  (2)Surprising or curious use cases

Recognize and speak the text stored in a barcode:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-qpcffj

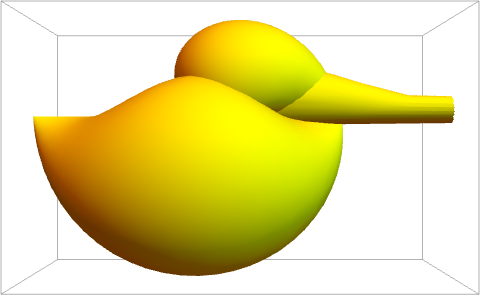

Recognize and evaluate an expression:

In[1]:=1
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-iz6e8c
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0cf3h4iefv0pzmm-boqlbp
Out[2]=2
