CarlsonRD

CarlsonRD[x,y,z]

gives the Carlson's elliptic integral .

Details

Mathematical function, suitable for both symbolic and numerical manipulation.
For non-negative arguments, $TemplateBox[{x, y, z}, CarlsonRD]⩵3/2int_0^infty(t+x)^(-1/2)(t+y)^(-1/2)(t+z)^(-3/2)dt$ .
CarlsonRD[x,y,z] has a branch cut discontinuity at .
For certain arguments, CarlsonRD automatically evaluates to exact values.
CarlsonRD can be evaluated to arbitrary precision.
CarlsonRD automatically threads over lists.
CarlsonRD can be used with Interval and CenteredInterval objects. »

Examples

open allclose all

Basic Examples (3)

Evaluate numerically:

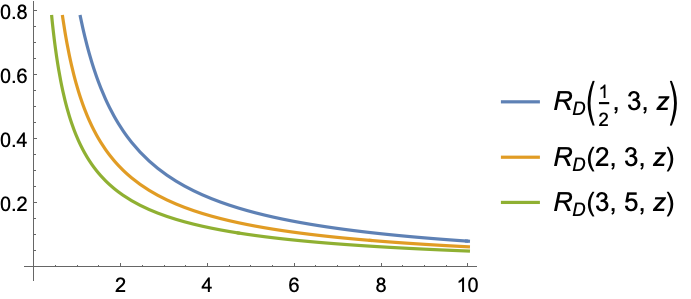

Plot CarlsonRD:

CarlsonRD is related to a combination of Legendre elliptic integrals restricted to :

Scope (15)

Numerical Evaluation (6)

Evaluate CarlsonRD numerically:

Evaluate to high precision:

The precision of the output tracks the precision of the input:

Evaluate for complex arguments:

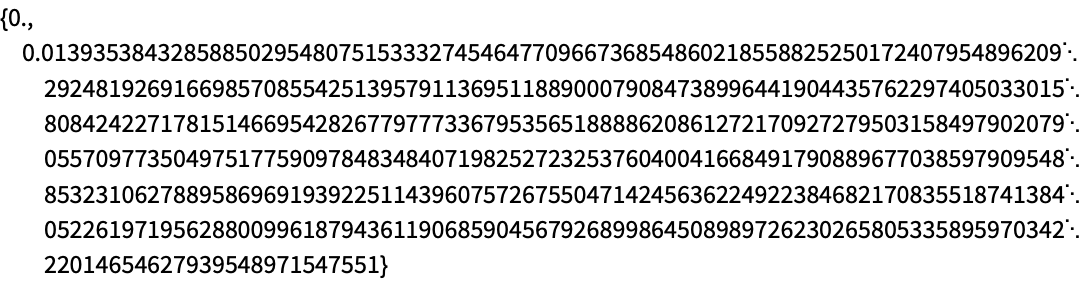

Evaluate efficiently at high precision:

CarlsonRD threads elementwise over lists:

CarlsonRD can be used with Interval and CenteredInterval objects:

Specific Values (2)

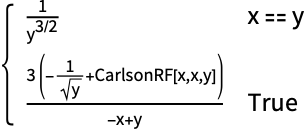

Simple exact values are generated automatically:

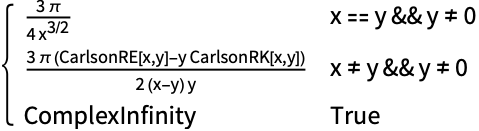

When one argument of CarlsonRD is zero, CarlsonRD can be expressed in terms of the complete elliptic integrals CarlsonRE and CarlsonRK:

Differentiation and Integration (2)

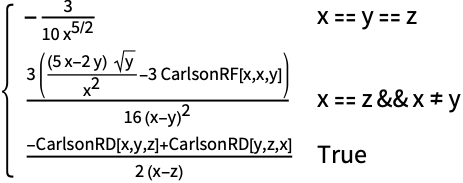

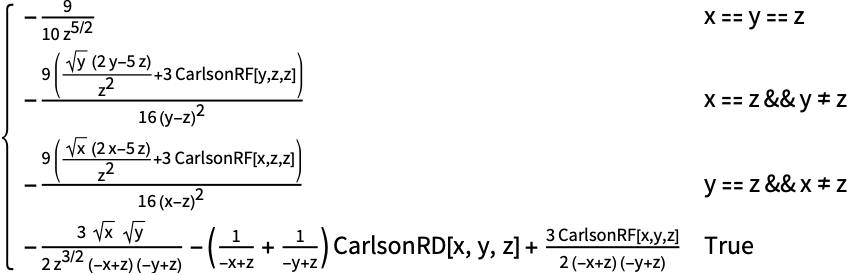

Derivative of with respect to :

Derivative of with respect to :

Indefinite integral of with respect to :

Indefinite integral of with respect to :

Function Representations (1)

TraditionalForm formatting:

Function Identities and Simplifications (4)

An equation relating CarlsonRD, CarlsonRF and CarlsonRG:

Some cyclic permutation identities for CarlsonRD:

CarlsonRD satisfies the Euler–Poisson partial differential equation:

CarlsonRD satisfies Euler's homogeneity relation:

Applications (2)

Distance along a meridian of the Earth:

Compare with the result of GeoDistance:

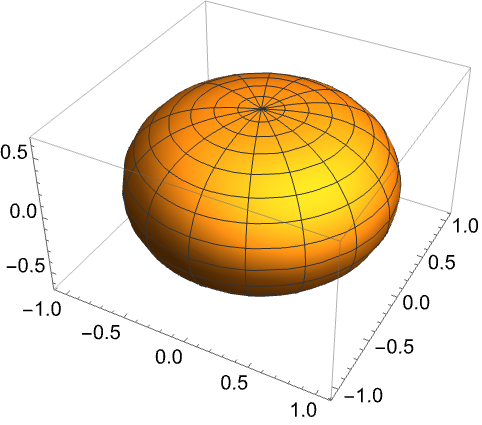

Parametrization of a Mylar balloon (two flat sheets of plastic sewn together at their circumference and then inflated):

Properties & Relations (1)

CarlsonRD is symmetric with respect to its first two arguments:
