ChartLegends

ChartLegends

is an option for charting functions that specifies what legends should be used for chart elements.

Details

  • ChartLegends->{leg1,leg2,} uses legi as a legend label for the i^(th) element in each dataset.
  • The legi can be any strings, graphics, or other static or dynamic expressions.
  • Any legend labels that are specified are collected in a legend that is displayed as part of the chart.
  • The overall form and appearance of legends is specified by settings for LegendAppearance.
  • None indicates no legend label. If there are more elements in a dataset than lbli specified, the subsequent legi are taken to be None.
  • If explicit legending is specified in a dataset using Legended, it is added to legends specified through ChartLegends.
  • Positioning of legends and other effects can be specified using Placed.
  • ChartLegendsPlaced[leg,pos] places the legend leg at the position specified by pos.

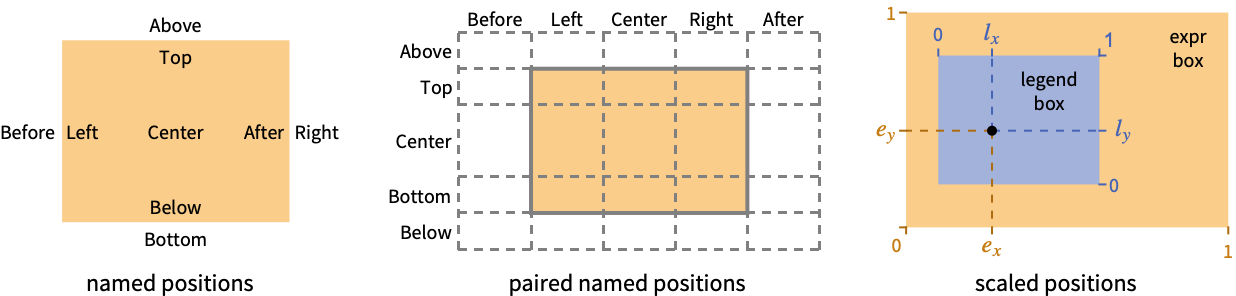

  • Possible forms for pos are:
  • Above,Below,Before,Afterpositions outside the bounding box for expr
    {h,v}horizontal h and vertical positions v
    {{ex,ey},{lx,ly}}scaled position {lx,ly} in the legend at scaled position {ex,ey} in expr
  • Possible horizontal positions include Before, Left, Center, Right and After.
  • Possible vertical positions include Below, Bottom, Center, Top and Above.
  • ChartLegends->{spec1,spec2,} uses the successive speci to specify legend labels for successive dimensions in nested lists of datasets.

Examples

Basic Examples  (4)

Generate a legend based on chart style:

Generate a legend for datasets:

Unused legend labels are dropped:

Place the legend below the chart:

Place the legend inside the chart:
