EstimatedPointProcess
✖
EstimatedPointProcess

[Experimental]

✖
EstimatedPointProcess[pdata,pproc]

estimates the parametric point process pproc from point data pdata.

✖
EstimatedPointProcess[pdata,pproc,{{p,p0},{q,q0},…}]

estimates the parameters p, q, … with starting values p0, q0, ….

Details and Options

  • EstimatedPointProcess takes point data pdata and returns the symbolic point process pproc with parameter estimates inserted for any non-numeric values.
  •
  • In general, a process pproc can be better estimated from an ensemble of point data.
  •
  • The points pdata can have the following forms:
  • {p1,p2,…}points pi
    GeoPosition[…],GeoPositionXYZ[…],…geographic points
    SpatialPointData[…]spatial point collection
    {pts,reg}point collection pts and observation region reg
  • The points are converted to a SpatialPointData object and a Ripley–Rasson estimator is used to generate the observation region if it is not provided in pdata.
  • The following options can be given:
  • AccuracyGoalAutomaticthe accuracy sought
    PointProcessEstimator Automaticwhat process parameter estimator to use
    PrecisionGoalAutomaticthe precision sought
    WorkingPrecision Automaticthe precision used in internal computations
  • Settings for PointProcessEstimator are documented under the individual point process reference pages.

Examples

open allclose all

Basic Examples  (1)Summary of the most common use cases

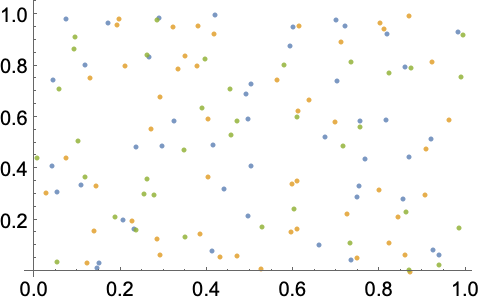

Estimate the parameter of a PoissonPointProcess:

In[1]:=1
✖
https://wolfram.com/xid/0rkj1dix01g16ya-87m94z
In[2]:=2
✖
https://wolfram.com/xid/0rkj1dix01g16ya-ntrd4p
Out[2]=2

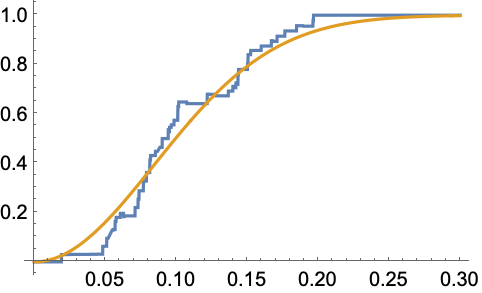

Compare the nearest neighbor function of the estimated process to the original data:

In[3]:=3
✖
https://wolfram.com/xid/0rkj1dix01g16ya-hb971p
In[5]:=5
✖
https://wolfram.com/xid/0rkj1dix01g16ya-ijidg5
Out[5]=5

Scope  (3)Survey of the scope of standard use cases

Cluster point processes  (1)

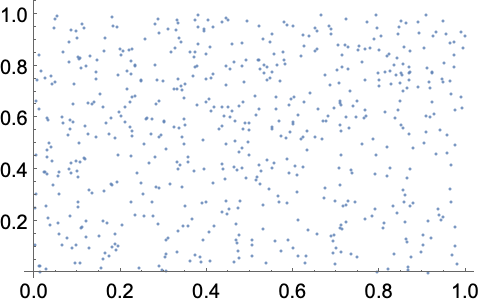

Simulate a point configuration from a Matern point process:

In[1]:=1
✖
https://wolfram.com/xid/0rkj1dix01g16ya-8c7zax
In[2]:=2
✖
https://wolfram.com/xid/0rkj1dix01g16ya-9g5xhe
Out[2]=2

Use the "FindClusters" method to estimate a point process model:

In[3]:=3
✖
https://wolfram.com/xid/0rkj1dix01g16ya-3o7emz
Out[3]=3

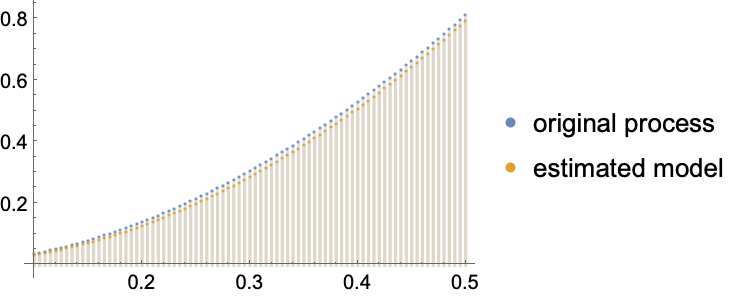

Compare the Ripley measure between the original process and the estimated model:

In[4]:=4
✖
https://wolfram.com/xid/0rkj1dix01g16ya-m5qyr2
Out[4]=4

Gibbs point processes  (2)

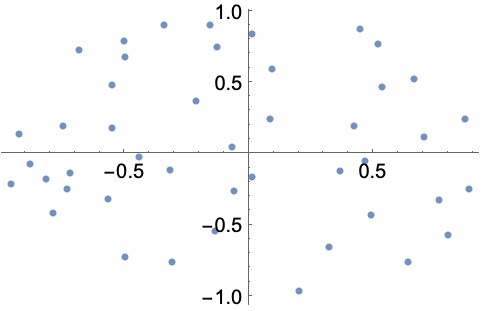

Estimate a hardcore point process:

In[1]:=1
✖
https://wolfram.com/xid/0rkj1dix01g16ya-f65qge
In[2]:=2
✖
https://wolfram.com/xid/0rkj1dix01g16ya-v1my3r
Out[2]=2

Use automatic method:

In[3]:=3
✖
https://wolfram.com/xid/0rkj1dix01g16ya-0lrhw4
Out[3]=3

Estimate an interaction point process:

In[1]:=1
✖
https://wolfram.com/xid/0rkj1dix01g16ya-m3vtqd
In[2]:=2
✖
https://wolfram.com/xid/0rkj1dix01g16ya-02lrvk
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0rkj1dix01g16ya-ktpc3y
Out[3]=3

Estimate the point process:

In[4]:=4
✖
https://wolfram.com/xid/0rkj1dix01g16ya-g1jfw2
Out[4]=4

Options  (3)Common values & functionality for each option

PointProcessEstimator  (2)

Estimate a cluster point process:

In[1]:=1
✖
https://wolfram.com/xid/0rkj1dix01g16ya-3xtnqr

Use the "FindClusters" method to estimate a point process model:

In[3]:=3
✖
https://wolfram.com/xid/0rkj1dix01g16ya-qqtrbj
Out[3]=3

Use the method of moments:

In[4]:=4
✖
https://wolfram.com/xid/0rkj1dix01g16ya-qlcixz
Out[4]=4

Estimate an interaction process:

In[1]:=1
✖
https://wolfram.com/xid/0rkj1dix01g16ya-k4hl1s

Use "MaximumPseudoLikelihood" method:

In[2]:=2
✖
https://wolfram.com/xid/0rkj1dix01g16ya-gtlp8y
Out[2]=2

Use "MaximumLikelihood" method:

In[3]:=3
✖
https://wolfram.com/xid/0rkj1dix01g16ya-knkvty
Out[3]=3

WorkingPrecision  (1)

Estimate a cluster point process with arbitrary precision:

In[1]:=1
✖
https://wolfram.com/xid/0rkj1dix01g16ya-60qt3t

Specify WorkingPrecision:

In[3]:=3
✖
https://wolfram.com/xid/0rkj1dix01g16ya-v0w81j
Out[3]=3

EstimatedPointProcess uses MachinePrecision as default:

In[4]:=4
✖
https://wolfram.com/xid/0rkj1dix01g16ya-0s6dcu
Out[4]=4
