GeoStyling

✖
`GeoStyling`

✖

GeoStyling[mapstyle]

displays faces of polygons and other filled geo objects using mapstyle.

✖

GeoStyling[mapstyle,directive]

uses mapstyle with the given graphics directive applied.

Details and Options

GeoStyling is a directive for GeoGraphics that applies textures and styling directives that are useful for maps.
GeoStyling applies to Polygon, GeoDisk, FilledCurve, Triangle, DayHemisphere, NightHemisphere, and GeoVisibleRegion.
Possible forms for mapstyle include:

	Automatic	use default styling
	None	use no explicit styling
	"ContourMap"	elevation data as contours
	"Coastlines"	geo background style displaying coastlines
	"CountryBorders"	geo background style displaying country borders
	Dated["CountryBorders",year]	geo background style displaying historical country borders
	"OutlineMap"	schematic region
	"ReliefMap"	elevation data as color with shadows
	"Satellite"	satellite imagery
	"SatelliteWithLabels"	satellite imagery with labels
	"StreetMap"	street map data
	"StreetMapLabelsOnly"	street map labels only
	"StreetMapNoLabels"	street map data omitting labels
	{"GeoImage",image}	apply image as a texture to unprojected polygons and project
	{"Image",image}	apply image as a texture to the projected polygons

GeoStyling[Automatic] is automatically applied by default to geo graphics and uses partial opacity with no explicitly specified color. It therefore inherits the default Graphics color behavior, meaning filled geo primitives are black in color but appear as transparent light gray when combined with their default partial transparency.
GeoStyling[None] removes any geo styling that has been set by previous GeoStyling specifications (including any set by GeoStyling[Automatic]). Using no geo styling results in the same default styles for geo graphics as for the usual Graphics (black with no transparency).
GeoStyling[] is equivalent to GeoStyling[None].
GeoStyling[directive] is equivalent to GeoStyling["OutlineMap",directive].
GeoStyling[mapstyle,directive] appends a graphics directive (or collection of individual directives inside an enclosing Directive) to the set of directives used to style a given mapstyle. All directives take effect for "OutlineMap", but only Opacity and EdgeForm take effect for other map styles.
The most recently applied GeoStyling specification in a geo graphics expression takes precedence. For geo primitives, GeoStyling specifications (including those from Automatic styling) take precedence over explicit graphics style directives added after the currently active GeoStyling. As a result of the default styling of GeoStyling[Automatic], bare color directives take effect by default, while GeoStyling must be explicitly wrapped around Opacity in order to change the transparency of filled geo primitives.
GeoStyling accepts most options applicable to Graphics. In addition, the following geo-specific options can be given:
GeoStylingImageFunction None image processing function to apply

GeoZoomLevel Automatic level of detail for styled geo graphics
GeoStyling["ContourMap",opts] accepts the same options as ListContourPlot.
GeoStyling["ReliefMap",opts] accepts the same options as ReliefPlot.

Examples

open allclose all

Basic Examples (13)Summary of the most common use cases

Use default styling:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-bjd47t

Out[1]=1

Specify the Automatic geo style explicitly:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-kpe5g3

Out[2]=2

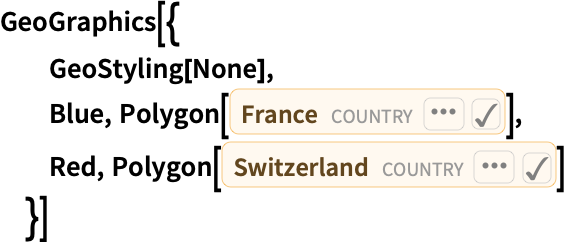

Use default Graphics styles (no geo styling):

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-2qm5a0

Out[1]=1

Show a schematic outline map:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-4fbalq

Out[1]=1

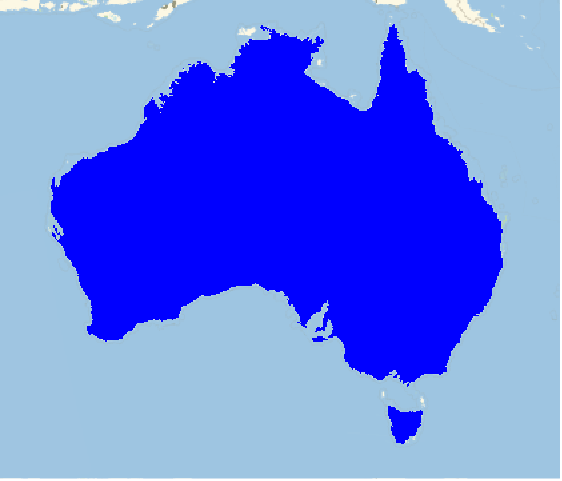

Specify a named color and suppress geo background:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-4ix75a

Out[1]=1

Use a relief map:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-tlp0vl

Out[1]=1

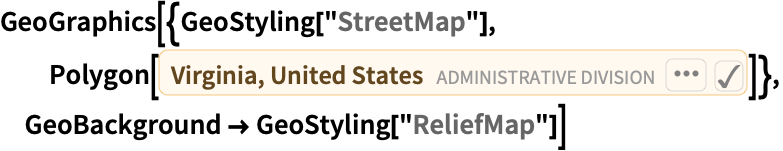

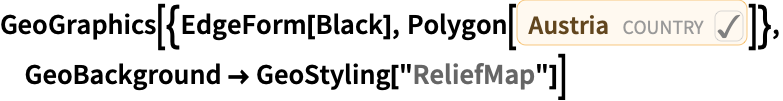

Use a relief map as a GeoBackground:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-52iy23

Out[2]=2

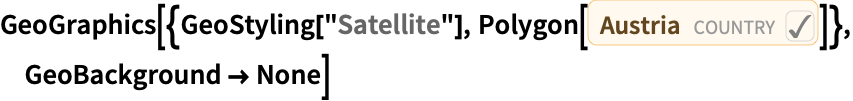

Use satellite imagery:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-4qj0pt

Out[1]=1

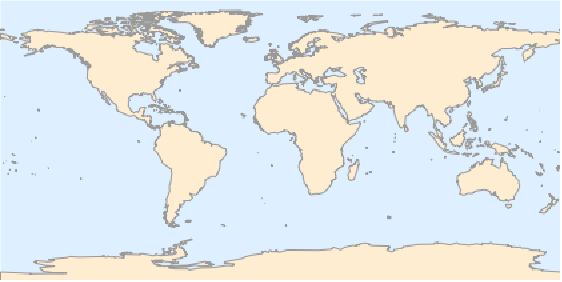

World map with coastlines:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-3eal4p

Out[1]=1

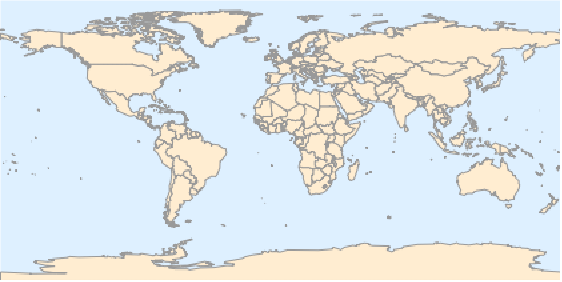

World map with country borders:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-fugu7o

Out[1]=1

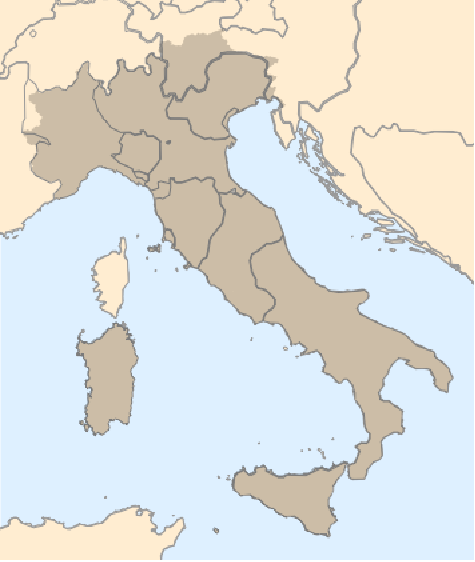

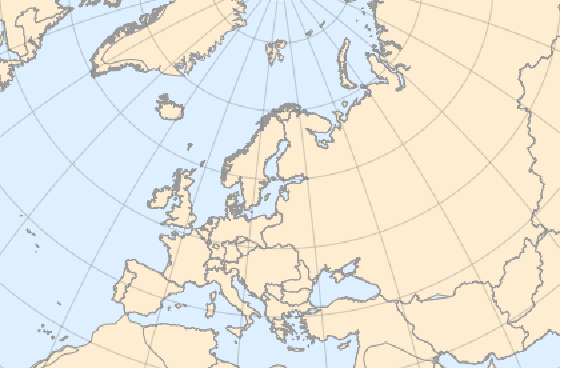

Map of Europe with country borders in year 1900:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-9rrbk4

Out[1]=1

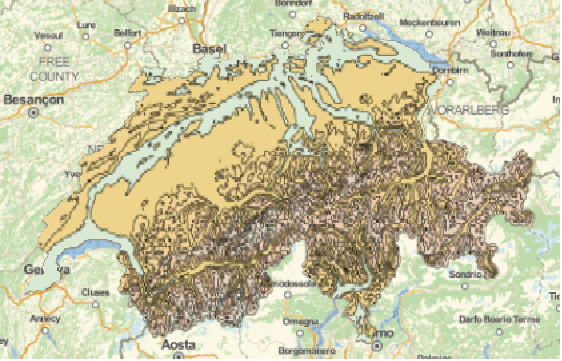

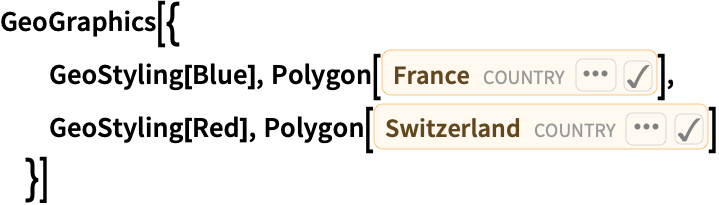

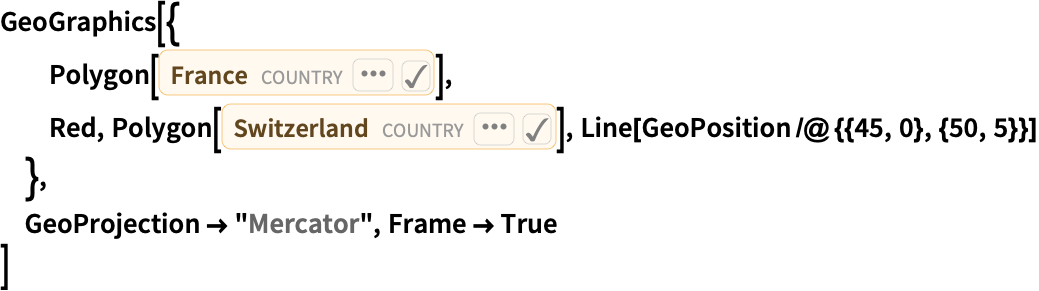

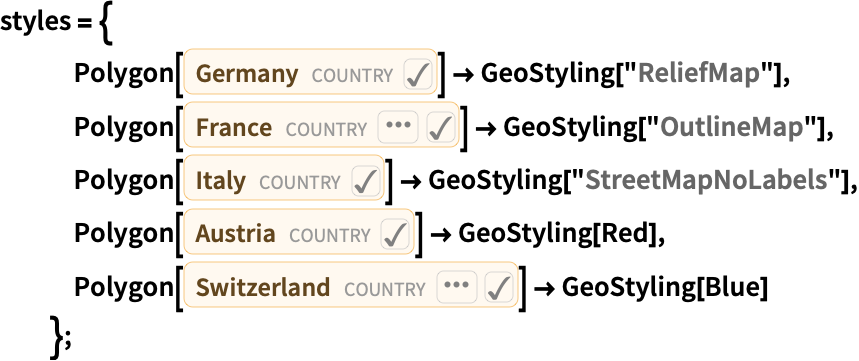

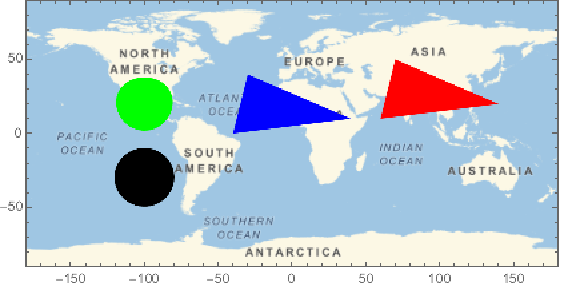

Specify different geo styles for different regions:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-cbjtx5

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-q80dsu

Out[2]=2

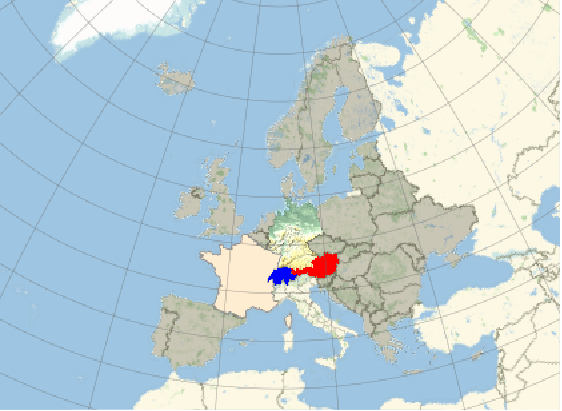

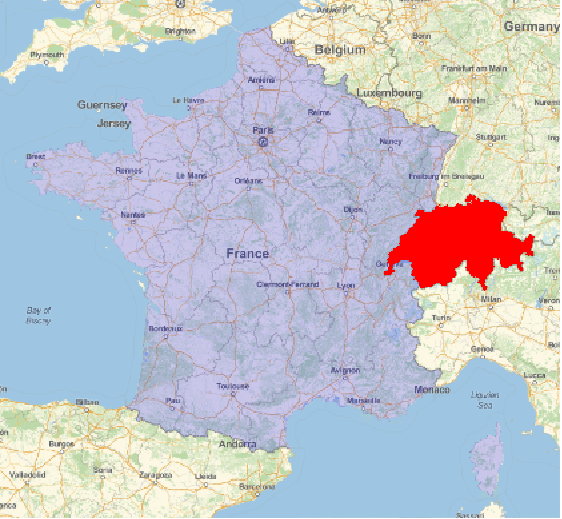

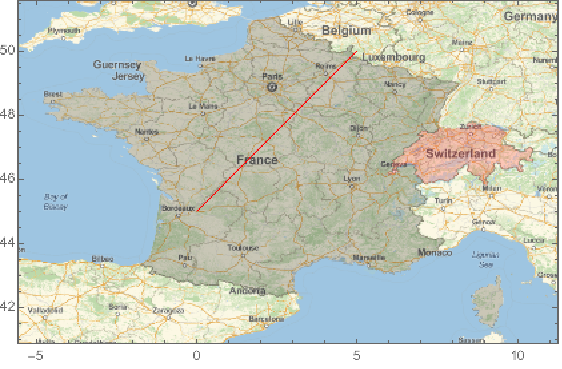

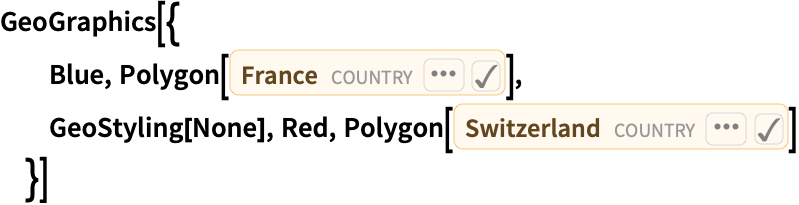

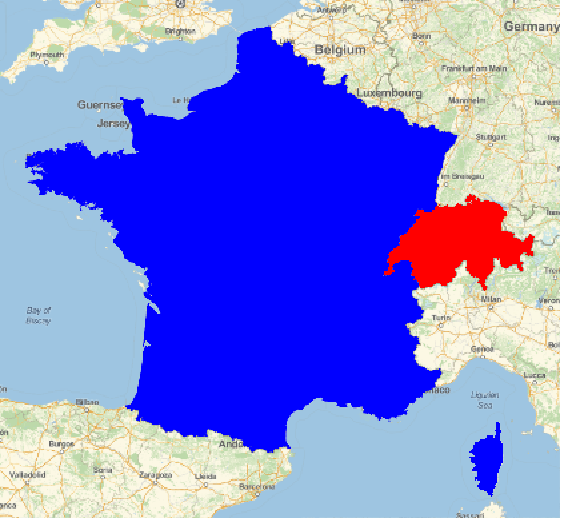

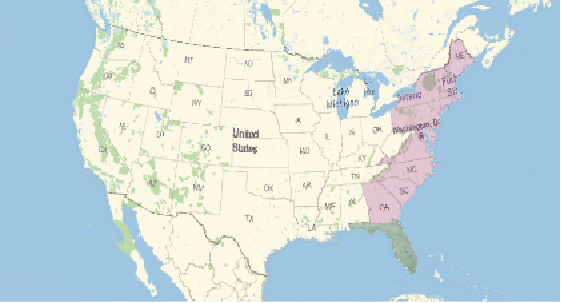

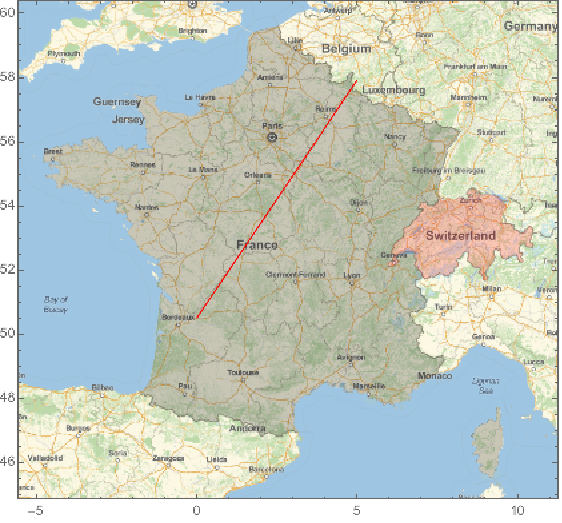

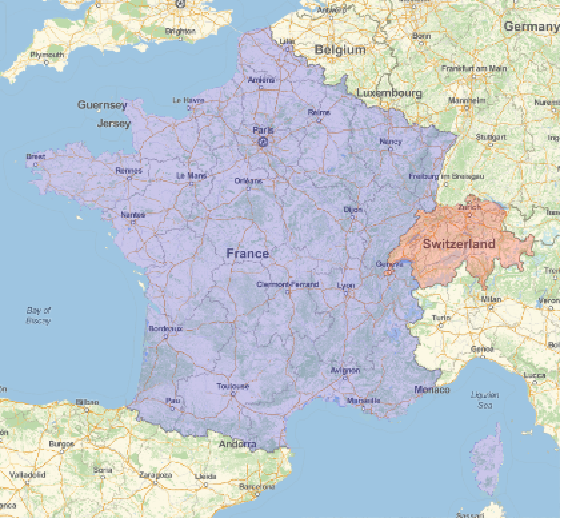

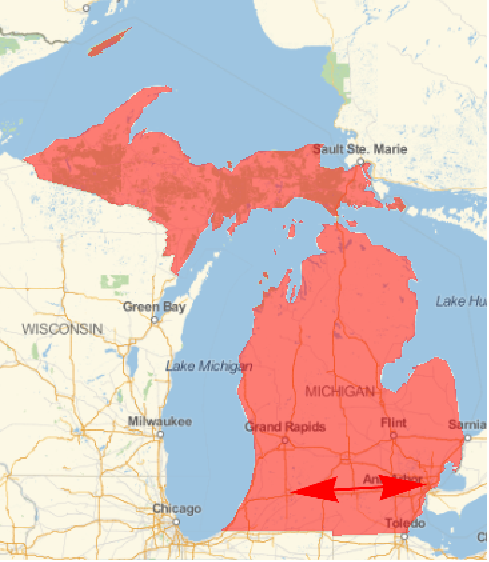

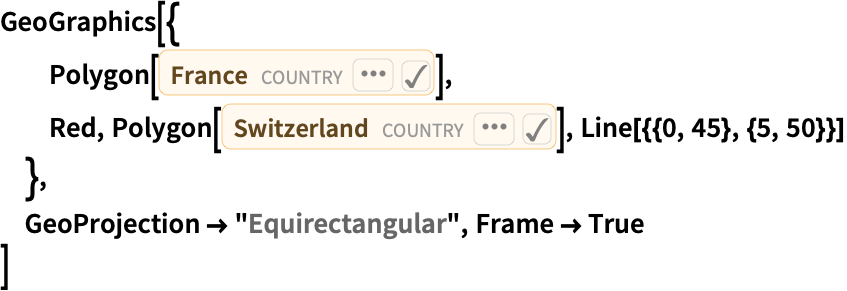

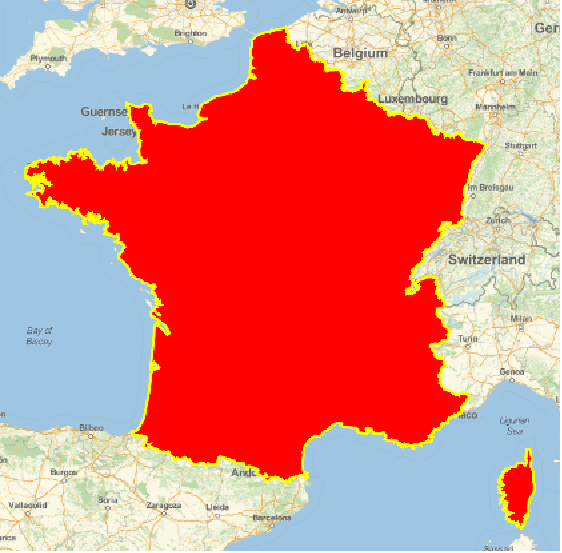

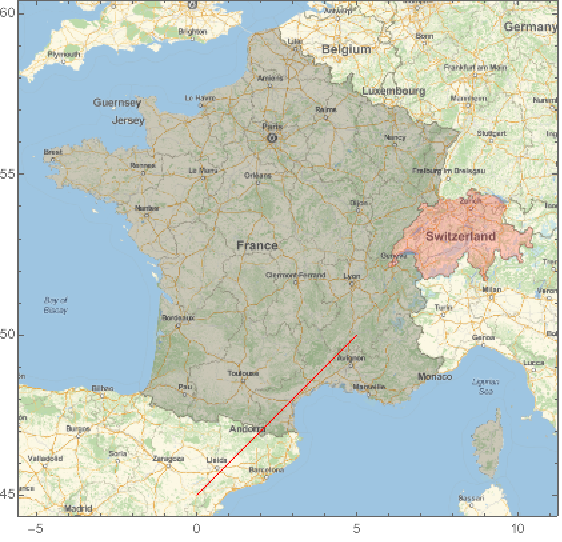

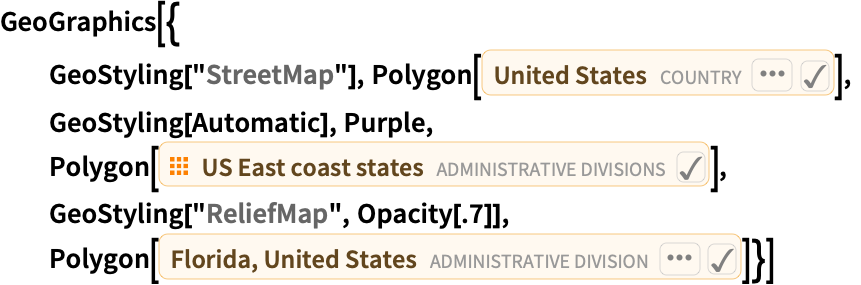

Specify different geo styles for different regions with partial overlaps:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-llevaw

Out[1]=1

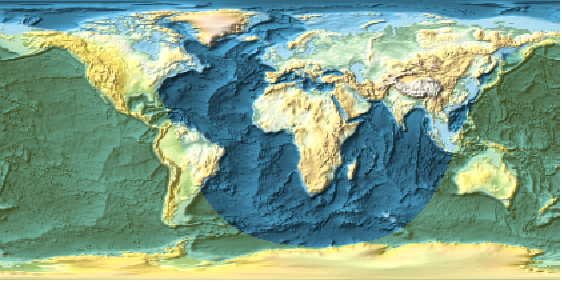

Style the daylight portion of the Earth in partially transparent yellow:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-doovq5

Out[1]=1

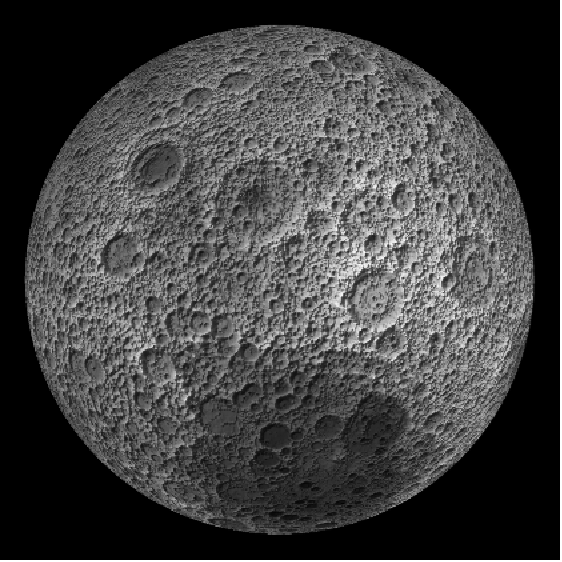

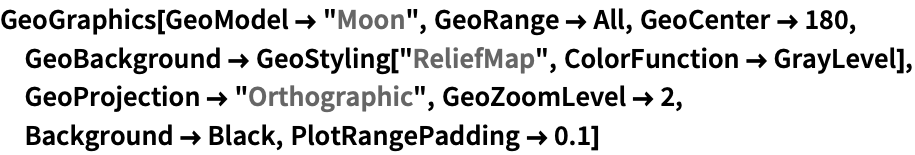

Relief map of the Moon:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-t4rnsf

Out[1]=1

Scope (25)Survey of the scope of standard use cases

"Coastlines" (1)

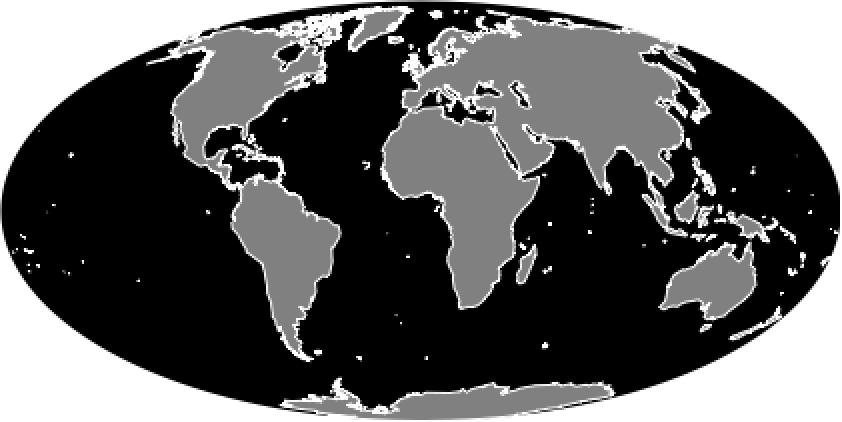

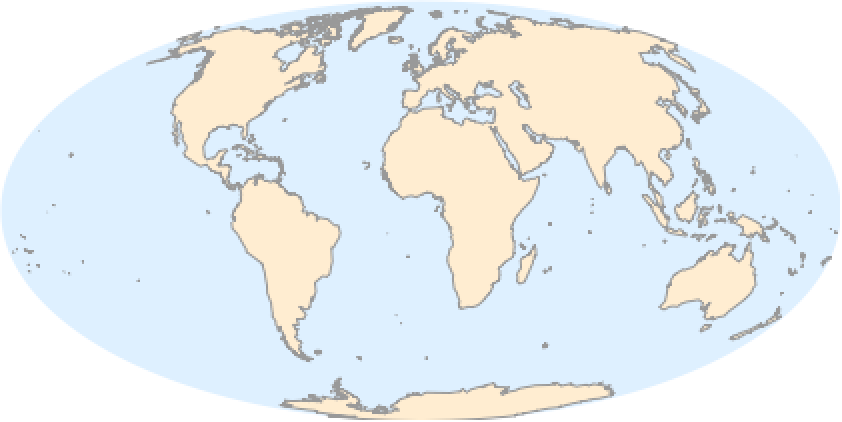

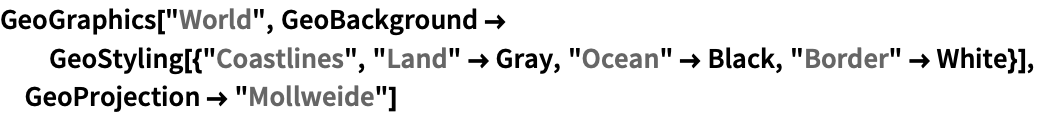

Mollweide map of the world, displaying the coastlines:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-6mxfm4

Out[1]=1

Select different graphical directives:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-wodhs6

Out[2]=2

"ContourMap" (2)

Specify a contour map of elevations over a country:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-p67mxl

Out[1]=1

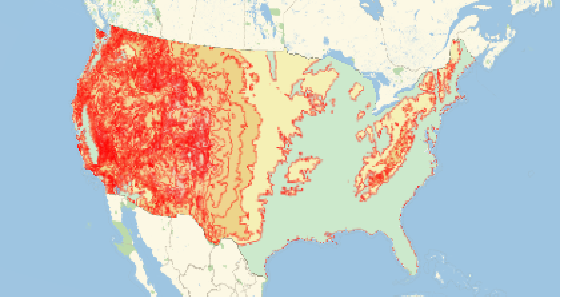

Adjust contours and add contour styling by passing ListContourPlot options:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-7pusxe

Out[2]=2

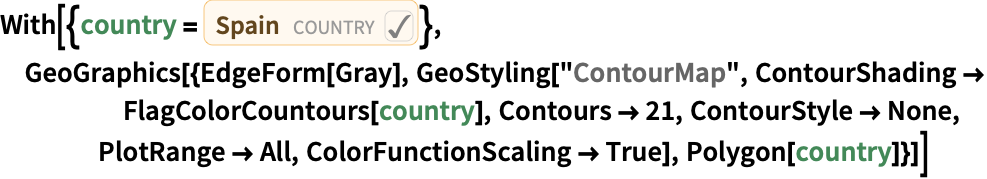

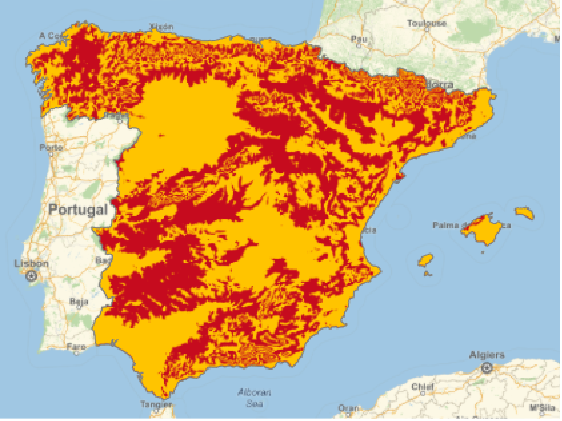

Display elevation contours of Spain using the colors of its national flag:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-pce9fd

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-0nfwc7

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-7hb1l5

Out[3]=3

"CountryBorders" (2)

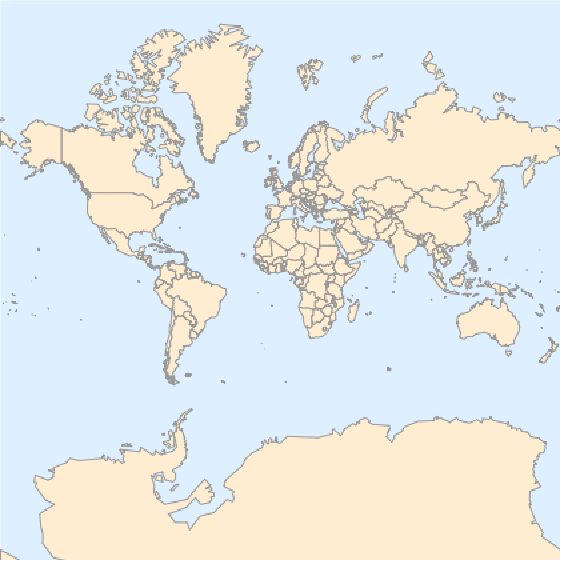

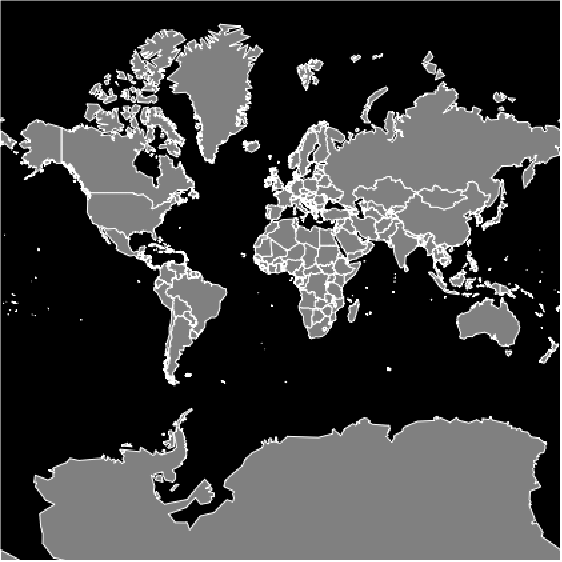

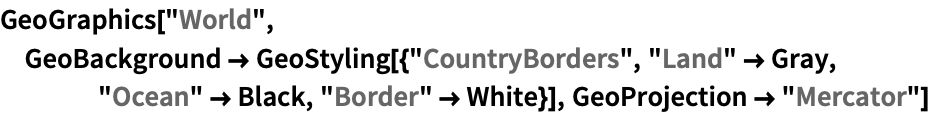

Mercator map of the world, displaying country borders:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-e88ckw

Out[1]=1

Select different graphical directives:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-w2khar

Out[2]=2

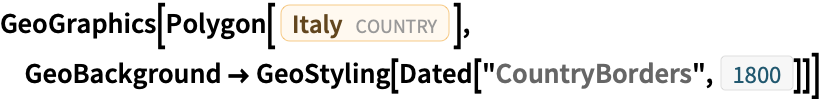

Show country borders in year 1800 for the region corresponding to modern Italy:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-m3rdaq

Out[1]=1

"GeoImage" (1)

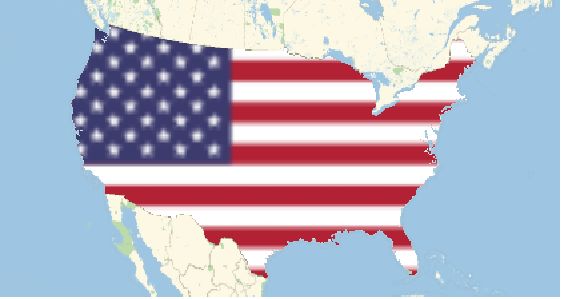

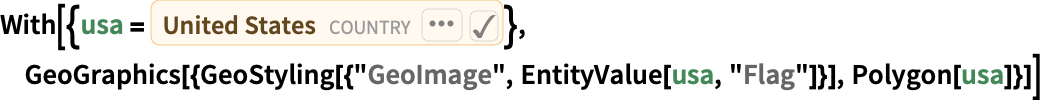

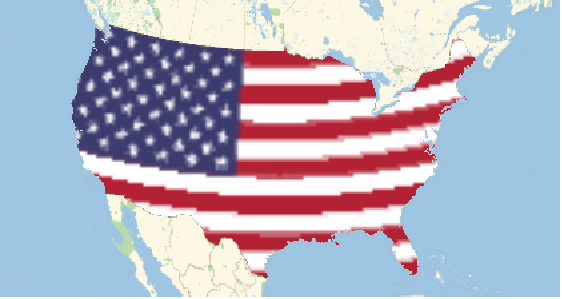

The Stars and Stripes projected onto the US:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-0htzt0

Out[1]=1

"Image" (4)

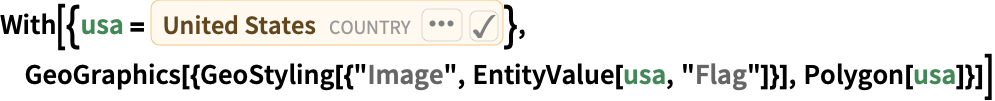

The Stars and Stripes placed on the US:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-g3kad3

Out[1]=1

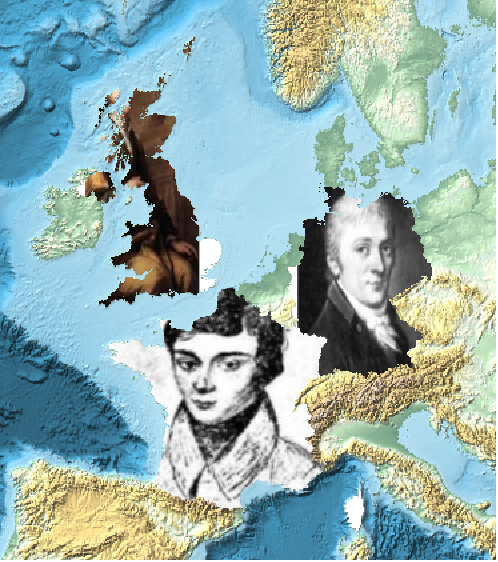

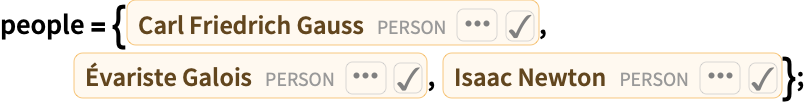

Place images of some famous mathematicians within the present borders of their countries of origin:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-20flr3

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-iio4d1

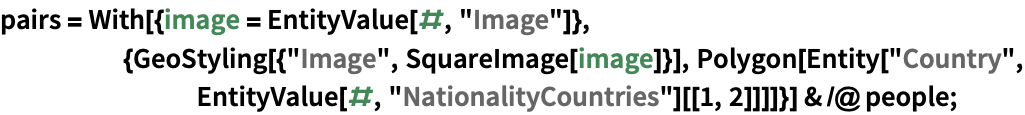

Construct image/country pairs:

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-24xbxp

Draw the map:

In[4]:=4

✖

https://wolfram.com/xid/0en0cz1no-pwg8pn

Out[4]=4

Load an image of a flower from ExampleData:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-sjaigp

Out[1]=1

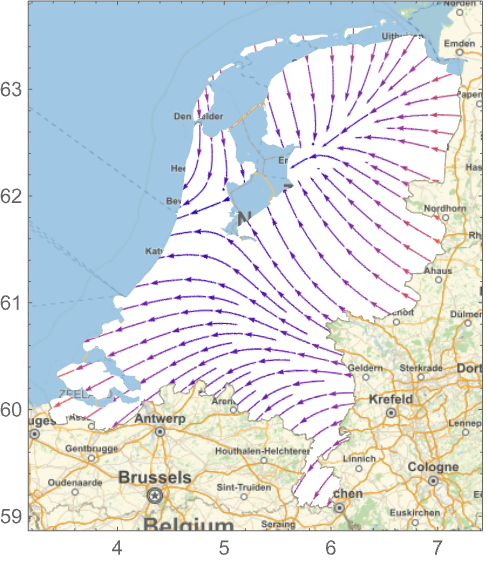

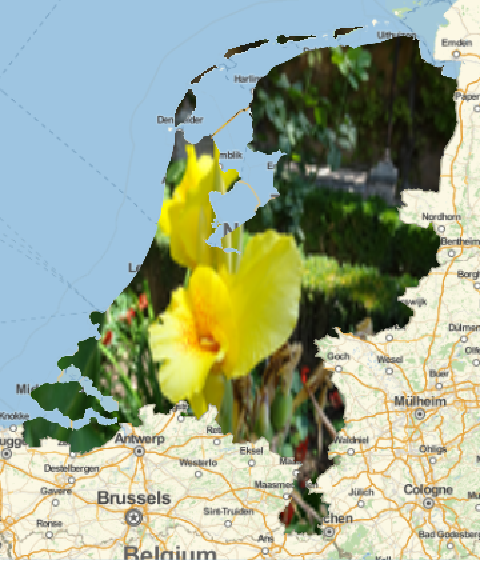

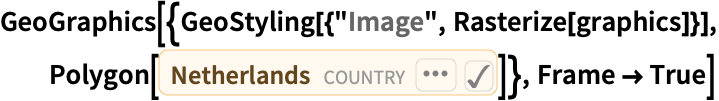

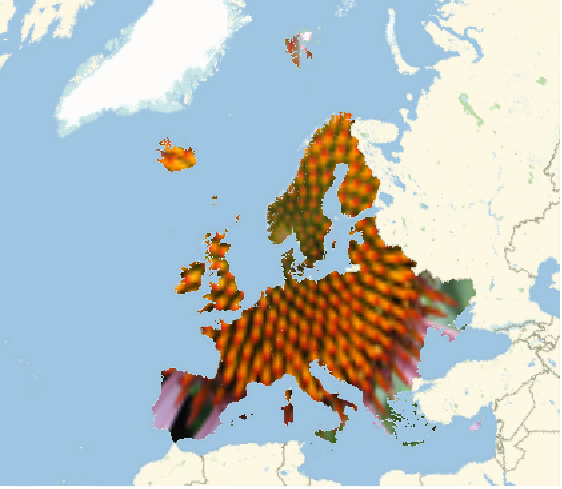

Use as a texture map for the Netherlands:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-6yoawa

Out[2]=2

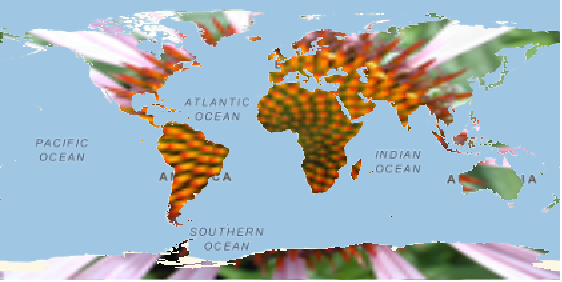

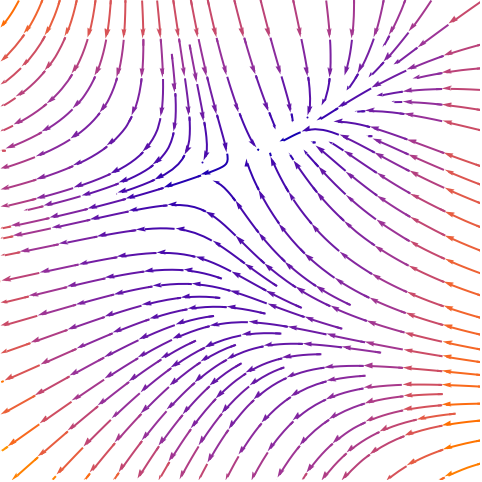

Use a rasterized graphic:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-yctrsi

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-7o7zxs

Out[2]=2

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-iep98p

Out[3]=3

"OutlineMap" (5)

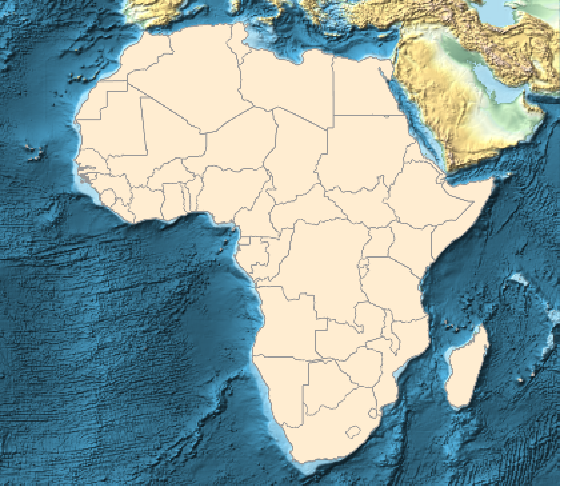

Use an outline map for Africa:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-894qot

Out[1]=1

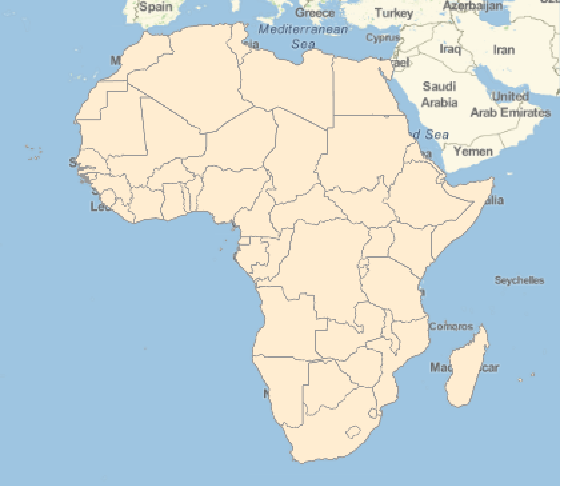

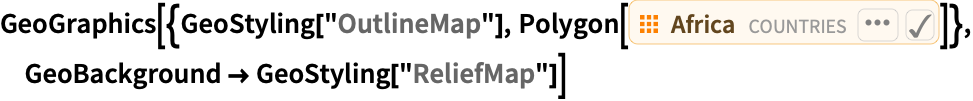

Use an outline map for Africa with a geo background style:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-yybyew

Out[2]=2

Specify a solid-fill color together with an edge color and style:

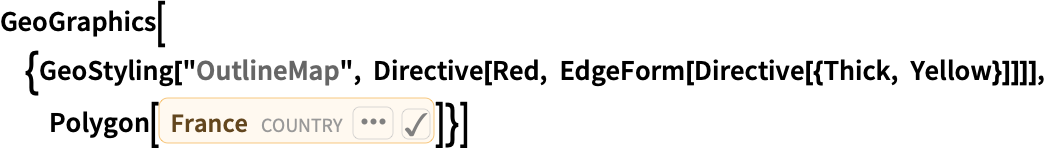

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-1g118q

Out[1]=1

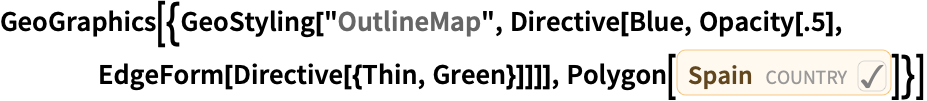

Specify a partially transparent fill color together with an edge color and style:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-zcujey

Out[1]=1

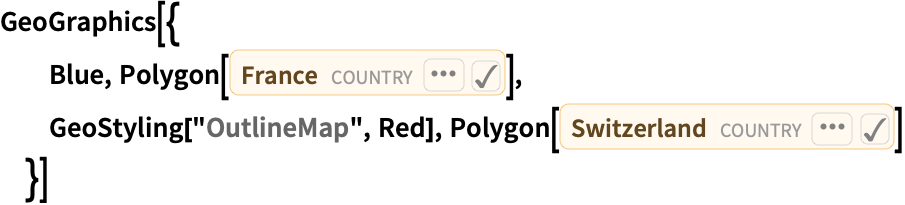

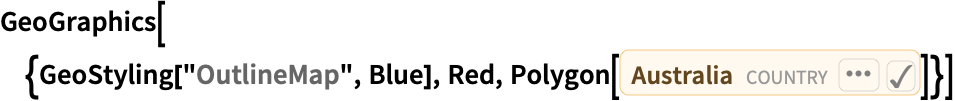

Directives in a geo style take precedence over bare directives for geo primitives:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-3evbpm

Out[1]=1

Style the daylight portion of the Earth in partially transparent yellow on top of a relief map background:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-y0kmen

Out[1]=1

This is equivalent to simply giving yellow as a color directive:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-5fd0a0

Out[2]=2

"ReliefMap" (3)

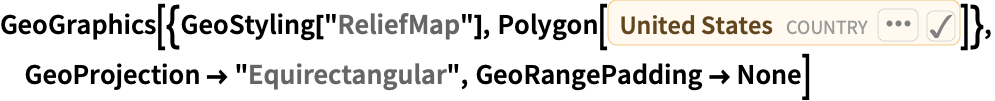

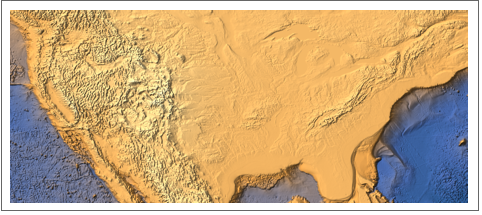

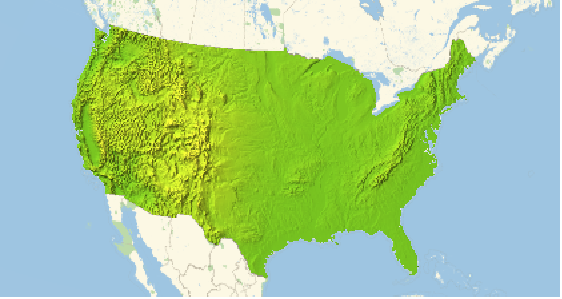

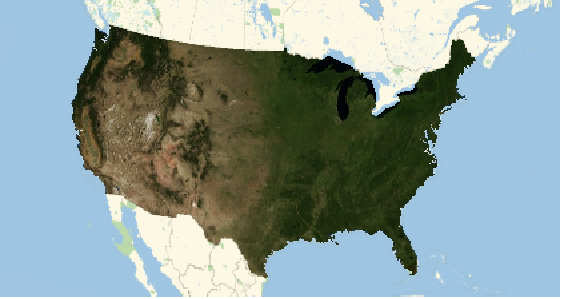

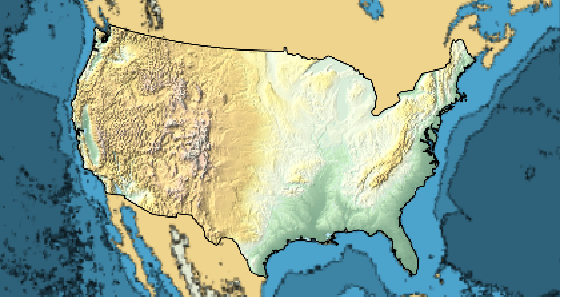

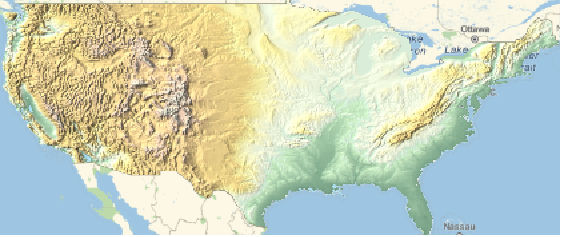

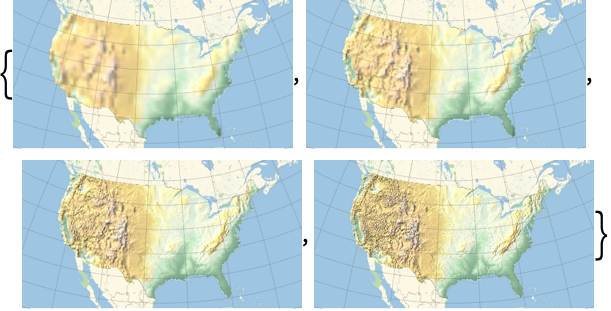

Use a relief map for the US:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-cehbx6

Out[1]=1

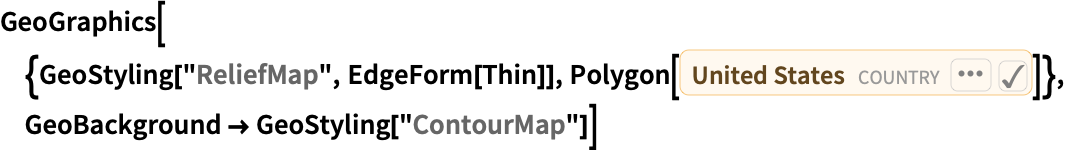

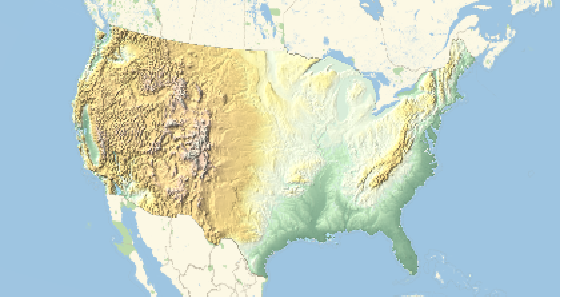

Use a relief map for the US with a contour map geo background style:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-gipe9u

Out[2]=2

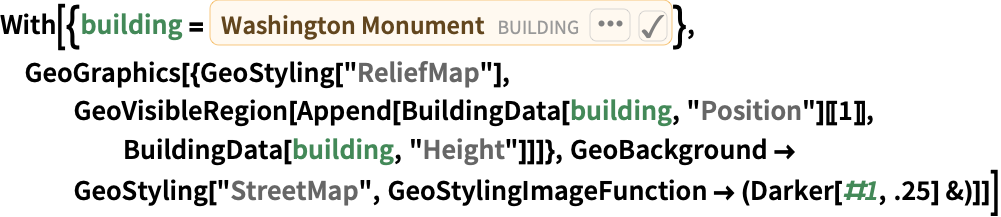

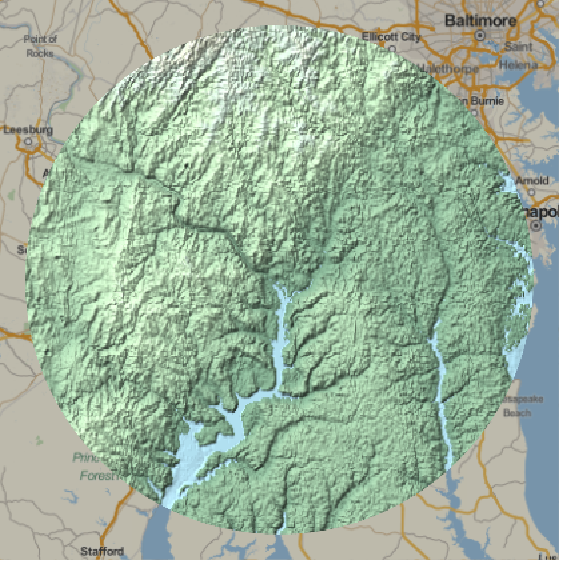

Show the region visible from the top of the Washington Monument using a relief map:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-1k801f

Out[1]=1

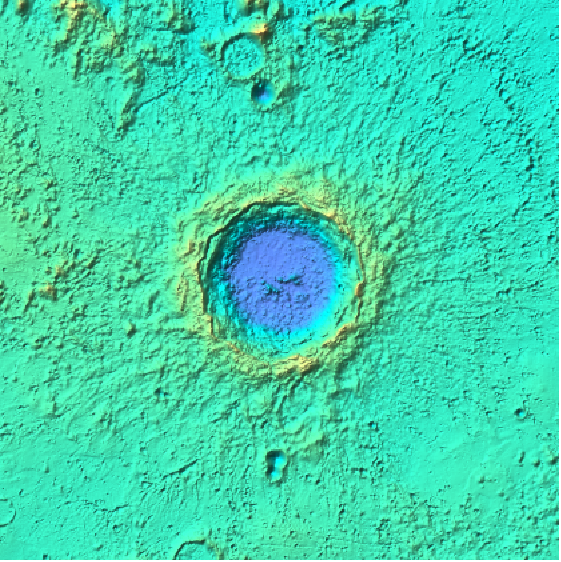

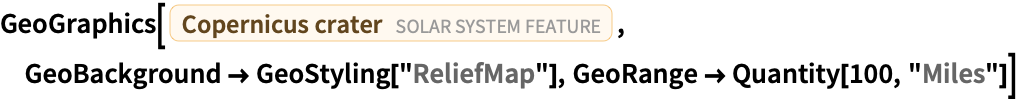

Relief map of the area around the Copernicus crater on the Moon:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-wesd80

Out[1]=1

"Satellite" (2)

Use satellite imagery:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-53lqqv

Out[1]=1

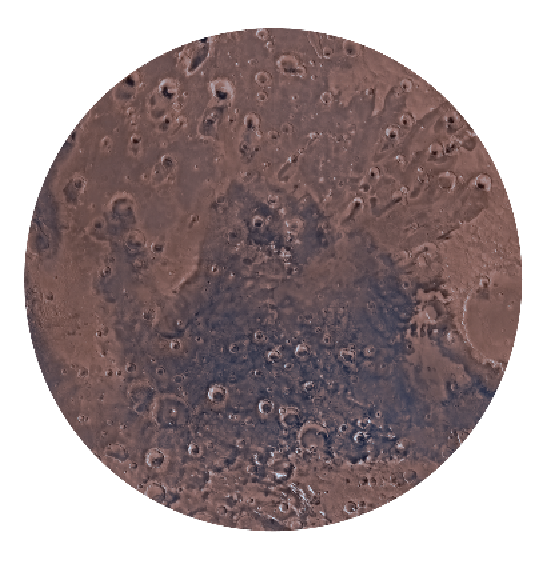

Satellite image of a geo disk on Mars:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-rapodm

Out[1]=1

"StreetMap" (3)

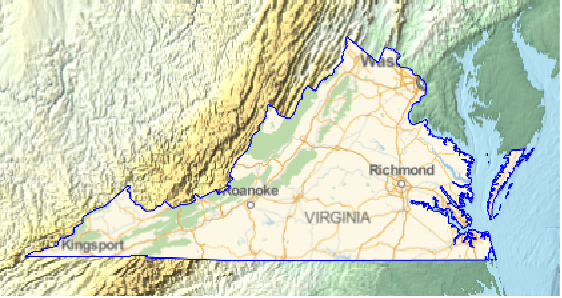

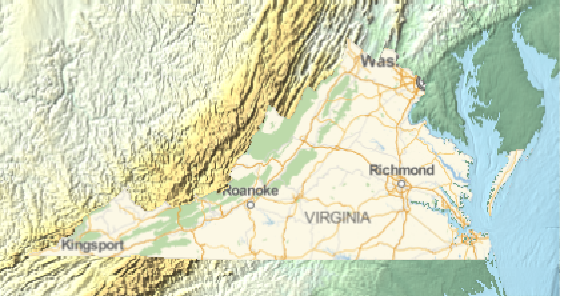

Use a street map style for Virginia:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-3cqir2

Out[1]=1

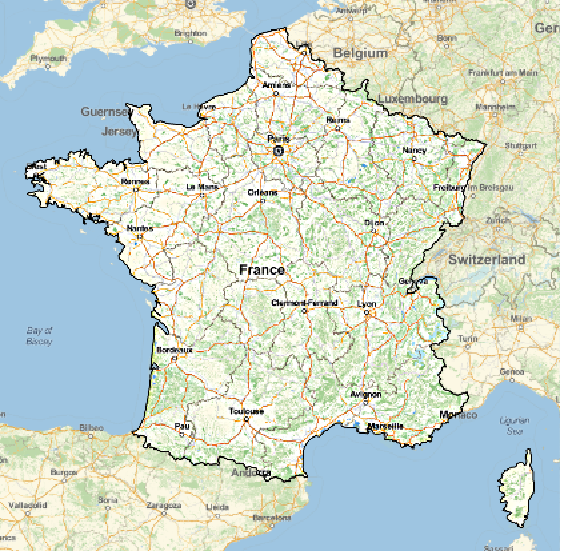

Street maps can have styled edges:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-vjwzf9

Out[1]=1

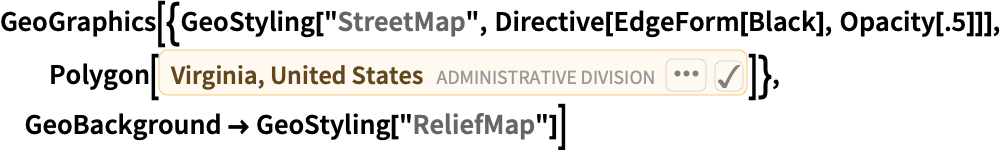

And opacity:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-e5en3s

Out[2]=2

But not colors:

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-tyhr4p

Out[3]=3

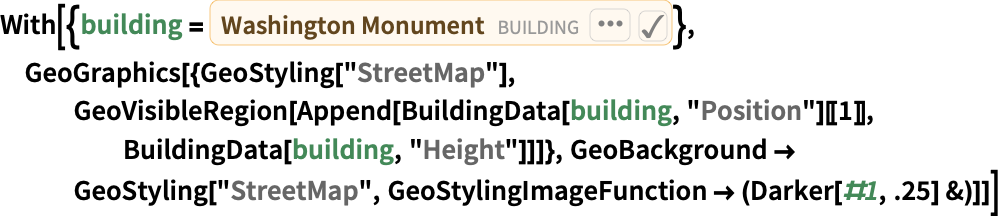

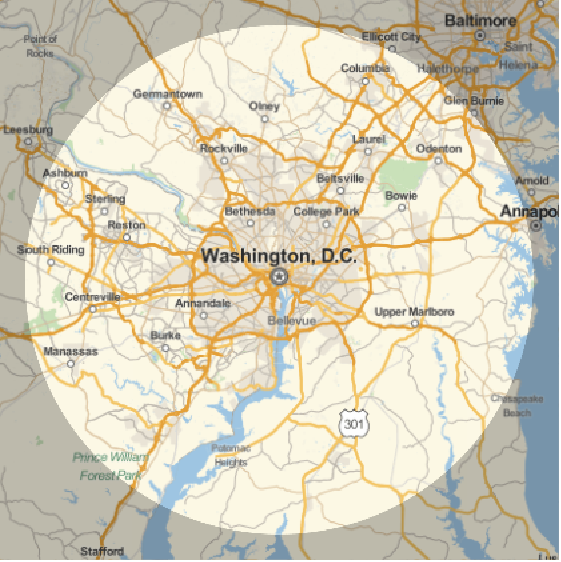

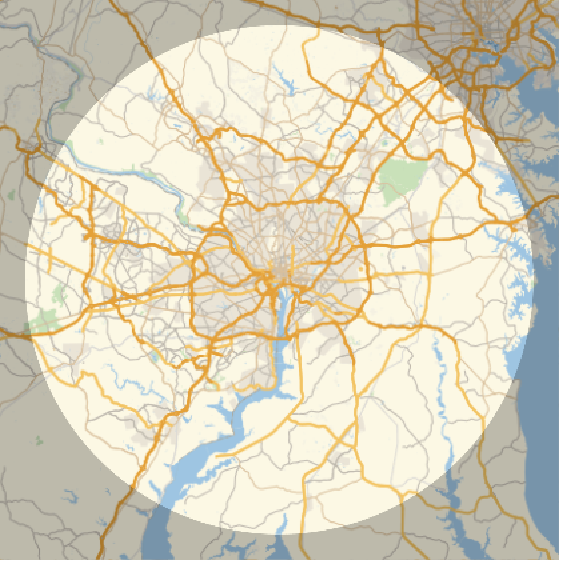

Show the region visible from the top of the Washington Monument using a street map:

In[4]:=4

✖

https://wolfram.com/xid/0en0cz1no-fwufs4

Out[4]=4

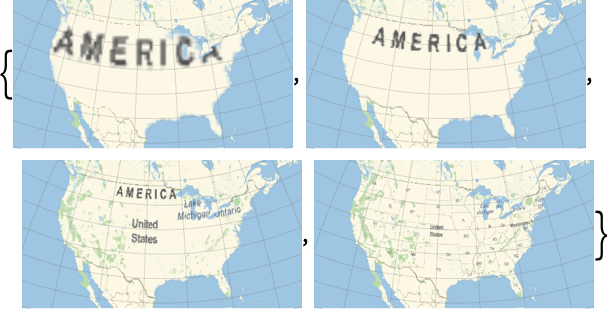

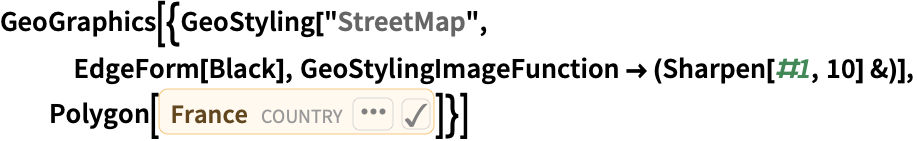

Image processing effects can be applied using GeoStylingImageFunction:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-f4303a

Out[1]=1

"StreetMapLabelsOnly" (1)

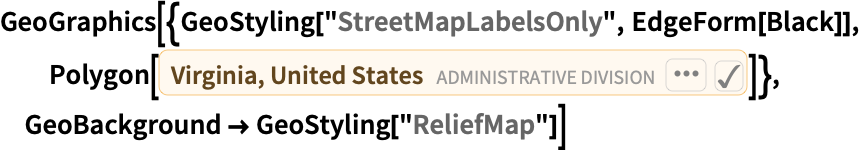

Use street map labels:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-yq2860

Out[1]=1

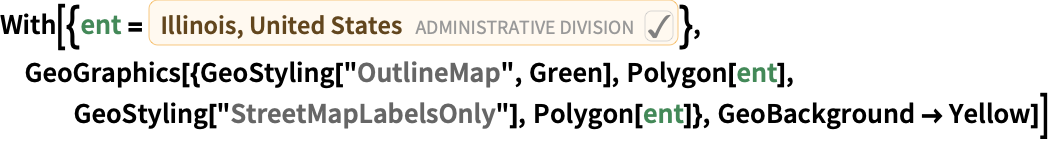

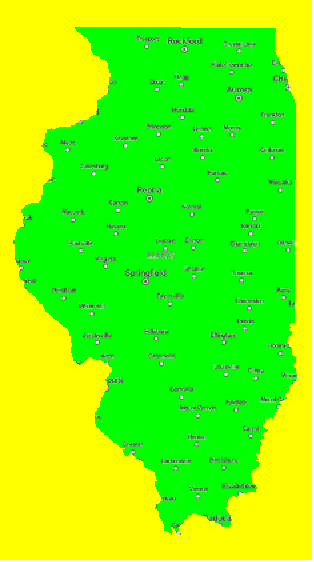

Use street map labels on top of a colored map region:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-iu32xt

Out[2]=2

"StreetMapNoLabels" (1)

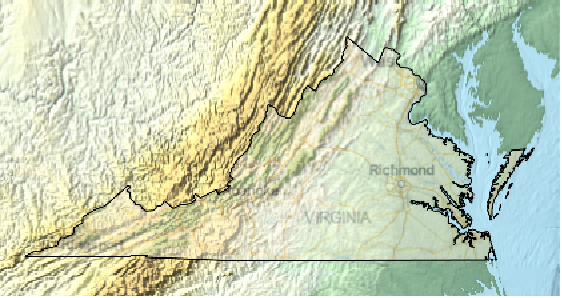

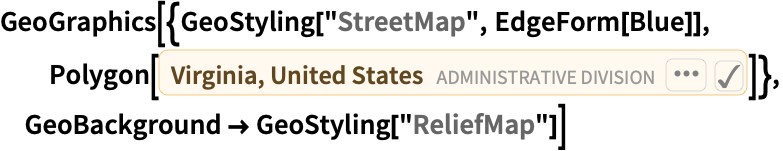

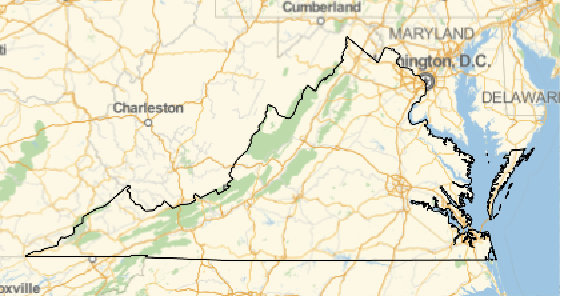

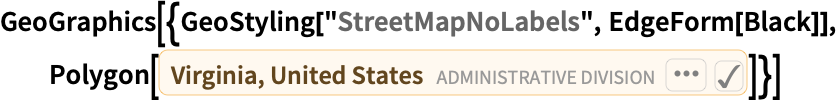

Show Virginia with a boundary and a street map with no labels:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-1c7y11

Out[1]=1

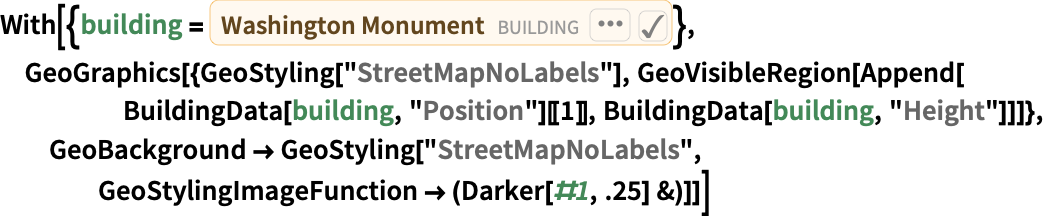

Show the region visible from the top of the Washington Monument using a street map with no labels:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-8x5p4x

Out[2]=2

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-p8saoi

Out[3]=3

Options (13)Common values & functionality for each option

ColorFunction (2)

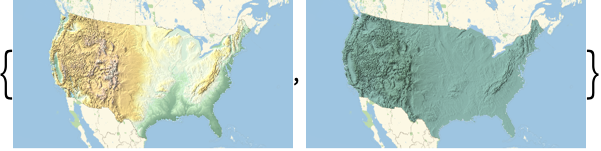

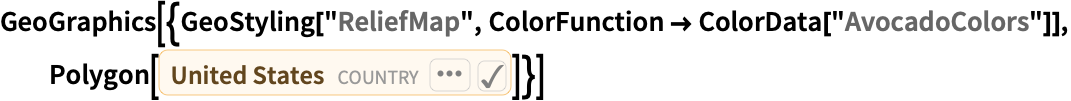

Use the "ReliefMap" style with a named color scheme:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-q7nxfe

Out[1]=1

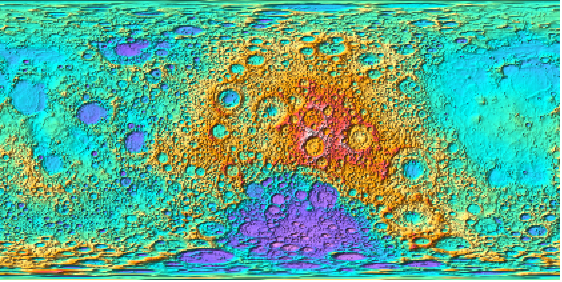

Change the default color function for a relief map of the Moon:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-iq4ncs

Out[1]=1

ColorFunctionScaling (1)

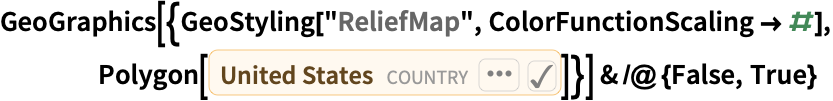

No argument scaling for the "ReliefMap" style on the left; automatic scaling on the right:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-4y72r6

Out[1]=1

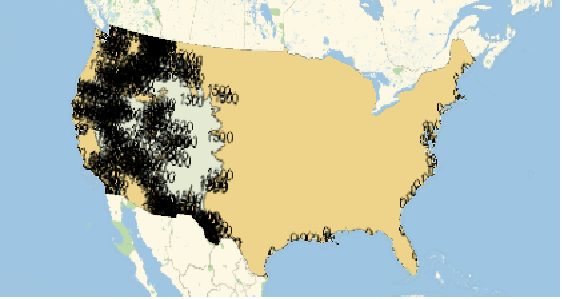

ContourLabels (1)

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-ir6tvr

Out[1]=1

Contours (1)

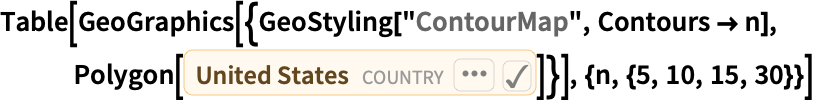

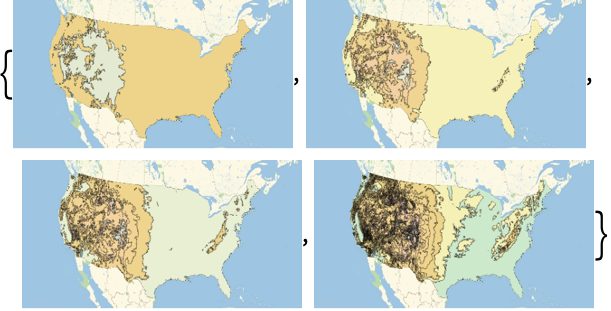

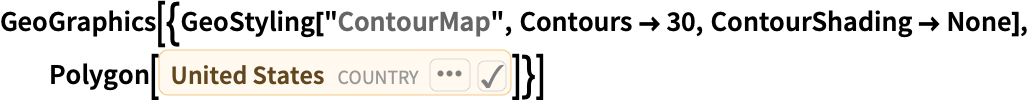

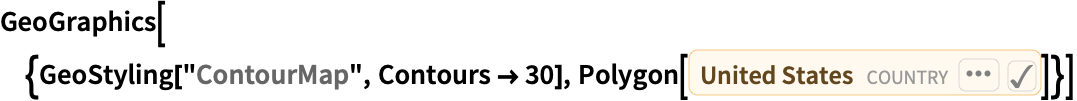

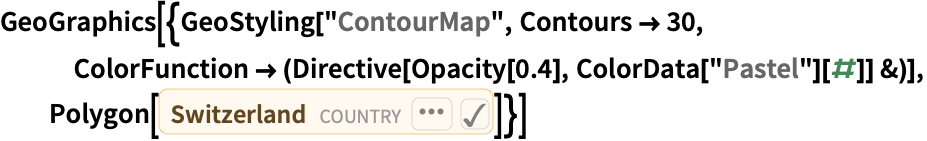

Specify the number of contours for the "ContourMap" style:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-ion1ke

Out[1]=1

ContourShading (1)

Leave the regions between contours blank for the "ContourMap" style:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-zxnjcw

Out[1]=1

Use default contour shading:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-5i87v

Out[2]=2

ContourStyle (1)

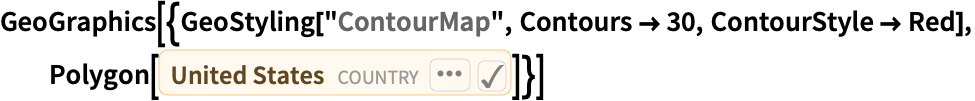

Specify the ContourStyle for the "ContourMap" style:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-biqs47

Out[1]=1

Use default contour style:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-g58p8x

Out[2]=2

GeoStylingImageFunction (5)

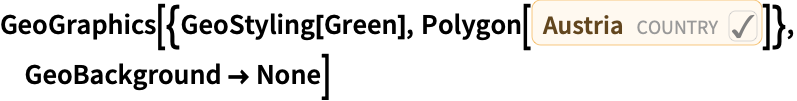

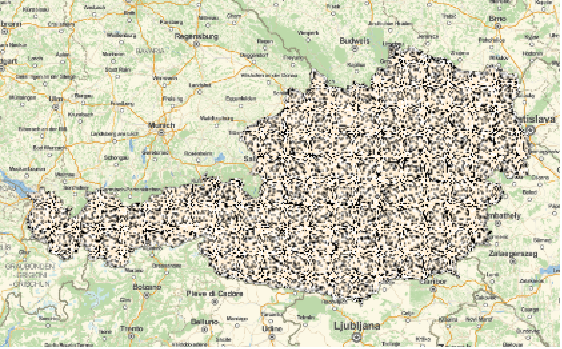

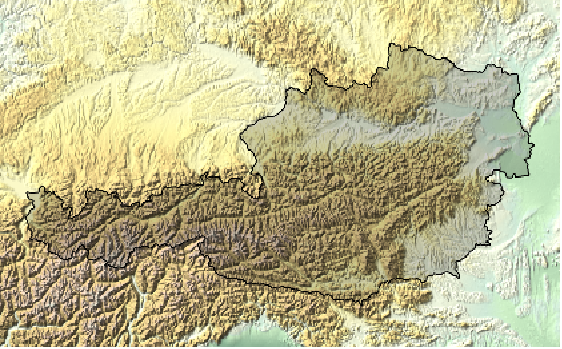

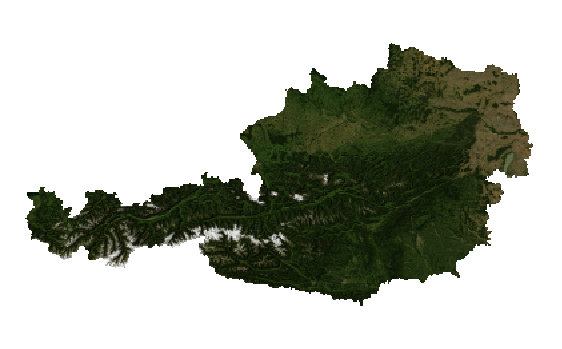

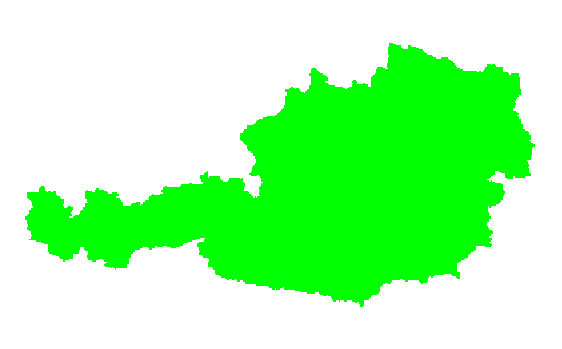

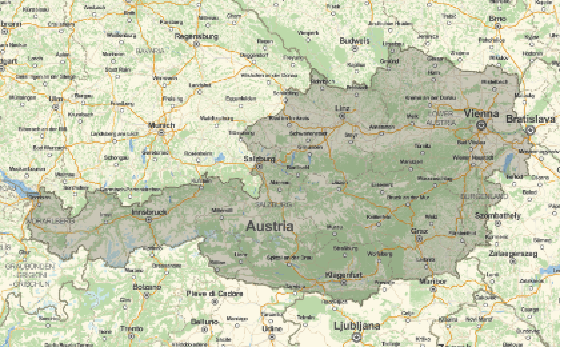

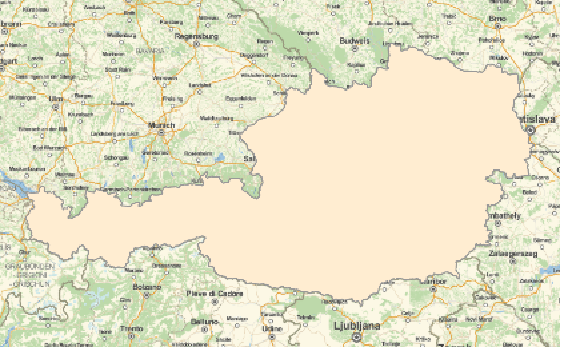

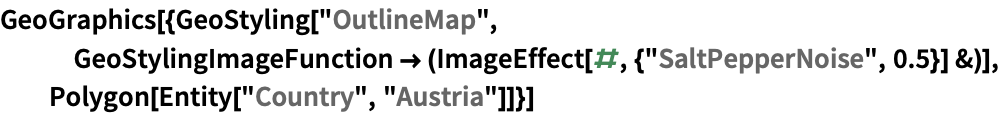

Add salt-and-pepper noise to a map of Austria:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-mmtbsj

Out[1]=1

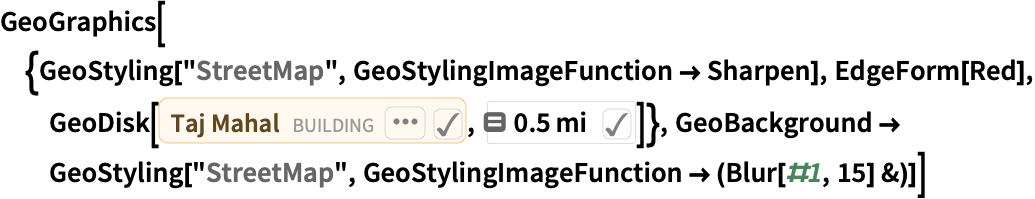

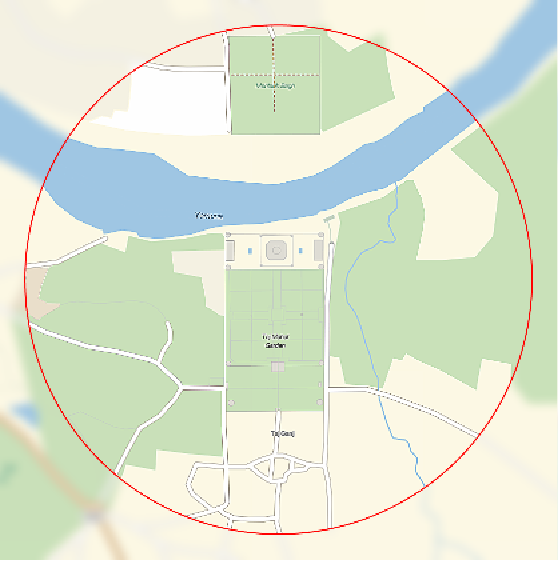

Sharpen a circular region near the Taj Mahal and blur the region outside it:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-bd6h87

Out[1]=1

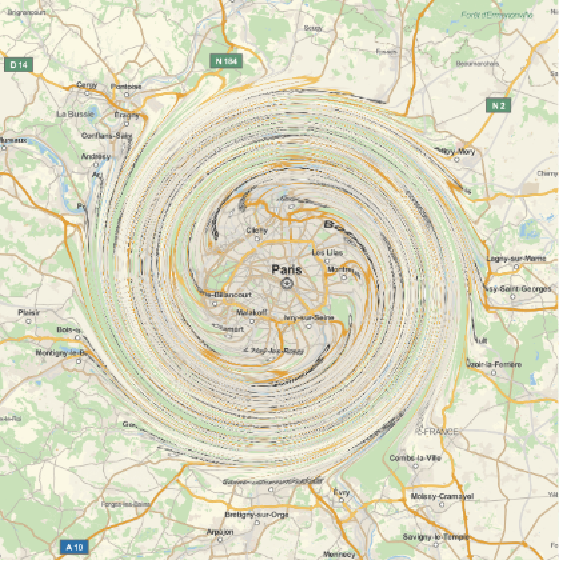

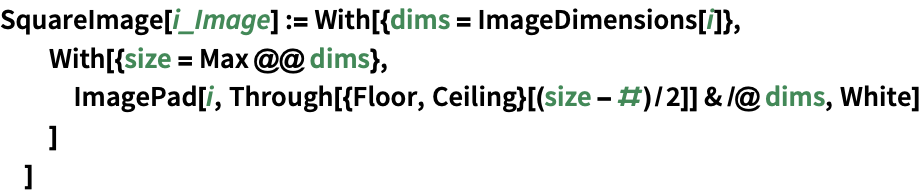

Add a tapered "swoosh" map effect around Paris:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-k3uq8s

Show the "swooshed" map:

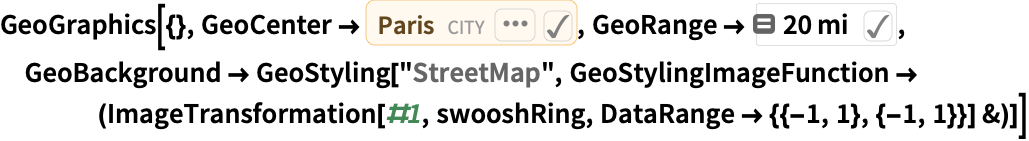

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-bruag2

Out[2]=2

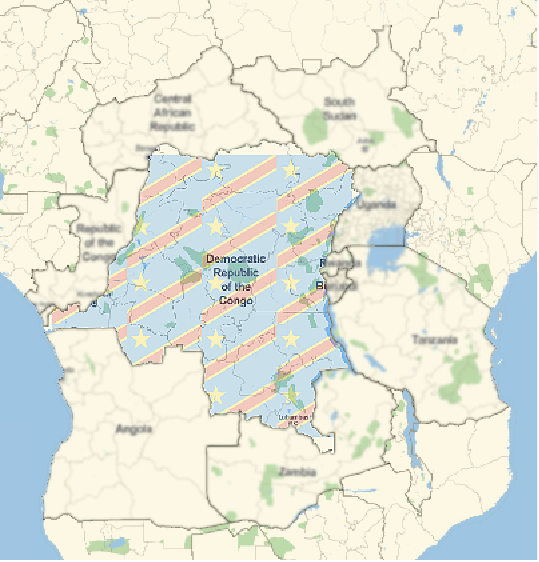

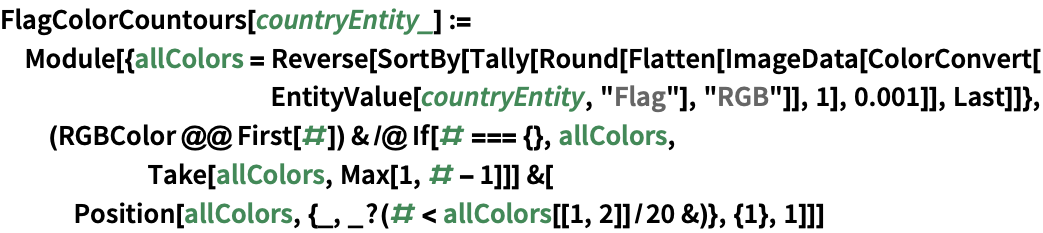

Use the flag of a country as an image effect:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-6k9he3

Out[1]=1

Place copies of the flag on the country and blur surrounding countries:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-qj3a4e

Out[2]=2

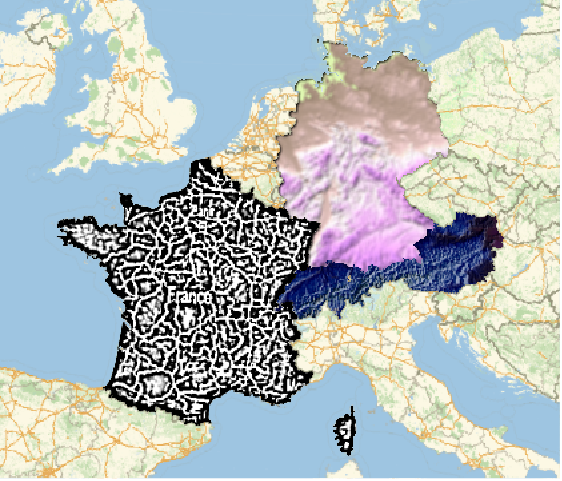

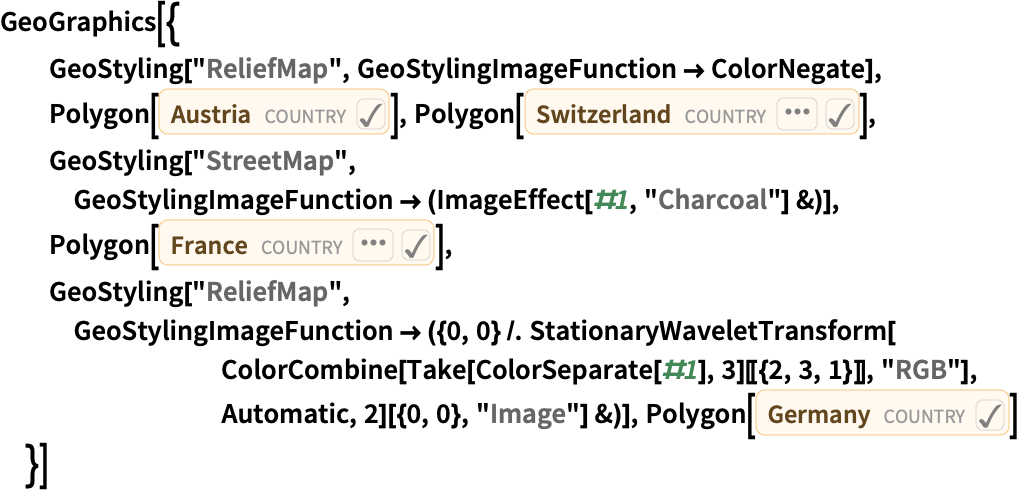

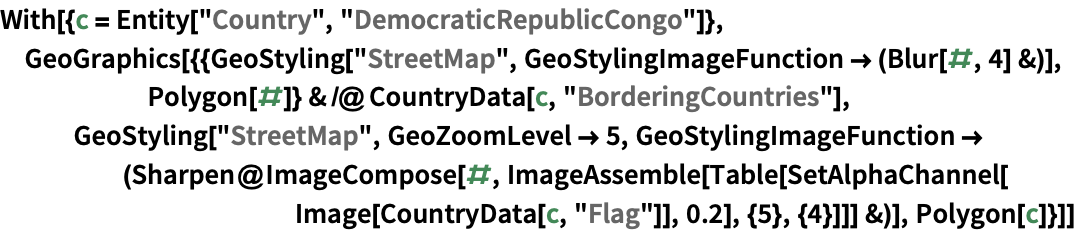

Apply various image effects to neighboring countries:

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-m6bjry

Out[1]=1

GeoZoomLevel (1)

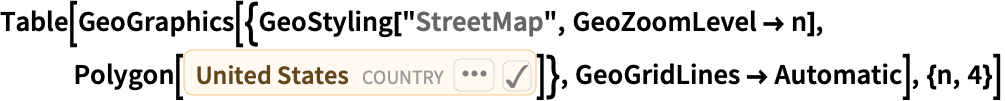

Set the GeoZoomLevel:

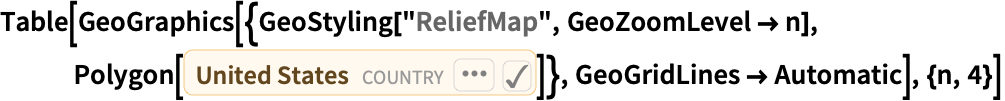

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-20t4yy

Out[1]=1

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-6op033

Out[2]=2

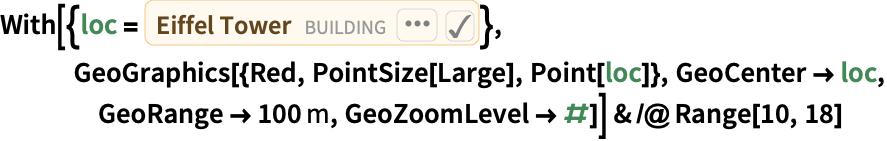

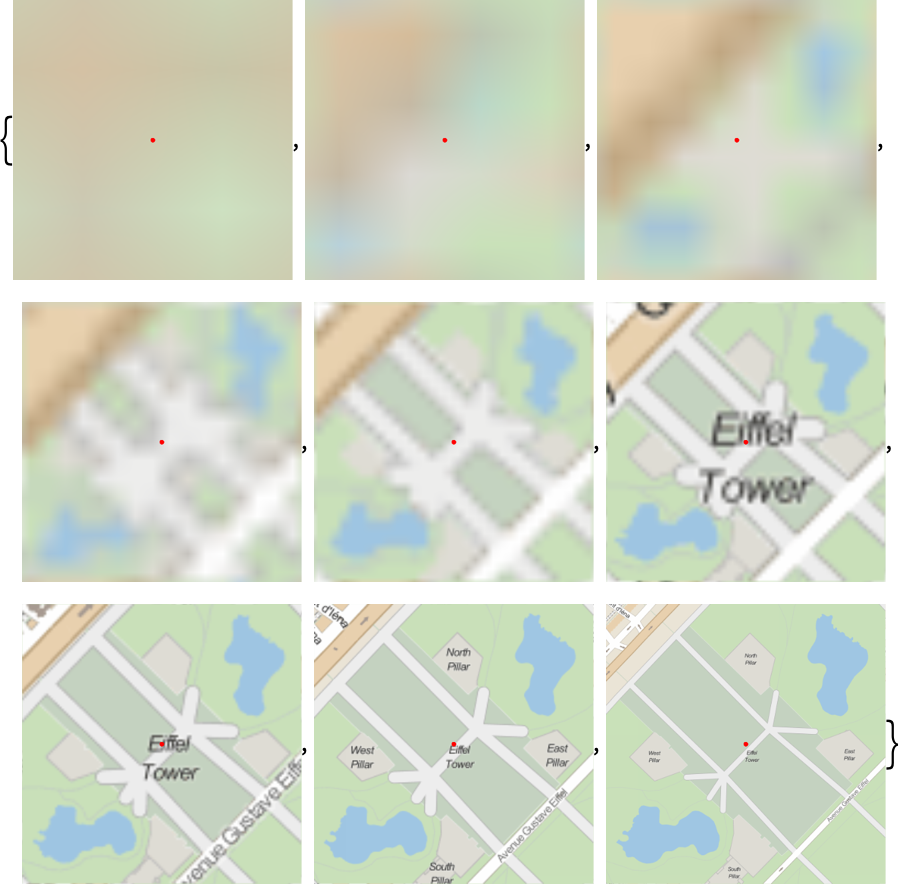

Show a street map of Paris around a famous structure at a number of zoom levels:

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-lu5y6v

Out[3]=3

Properties & Relations (6)Properties of the function, and connections to other functions

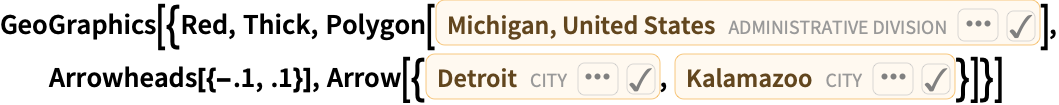

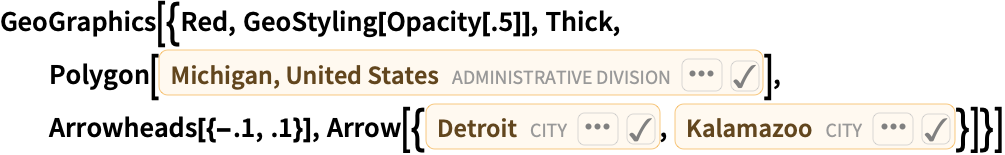

Color primitives apply directly to non-filled primitives but take effect together with the most recent geo styling (partial opacity by default) for filled geo primitives, resulting in a pink Michigan with a red arrow:

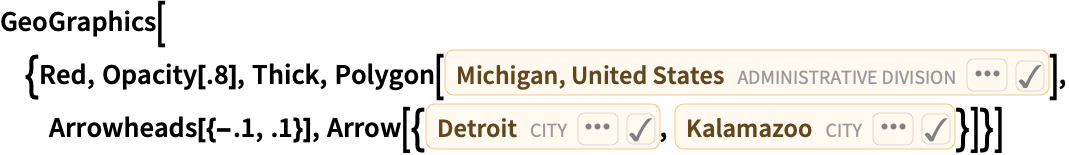

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-5g8x51

Out[1]=1

Specifying opacity has no effect here since it is trumped by the opacity set implicitly by GeoStyling[Automatic]:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-ibtxw2

Out[2]=2

Placing the opacity inside a geo styling causes it to take effect, overwriting the default GeoStyling[Automatic] setting:

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-7cigs0

Out[3]=3

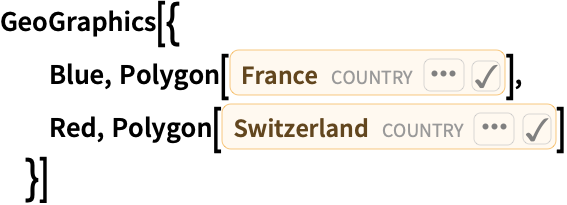

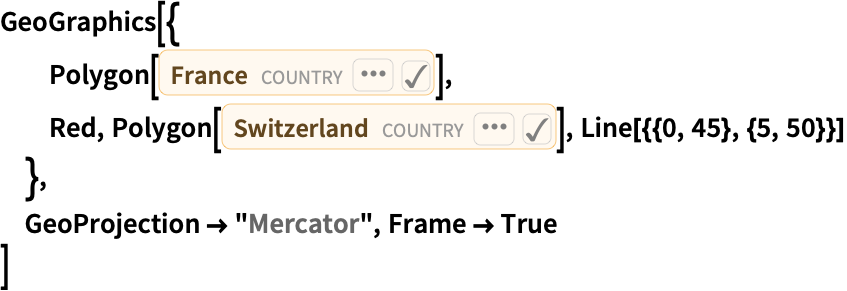

For geo objects, the default geo style (partial opacity) is automatically applied together with the bare color directives that follow it:

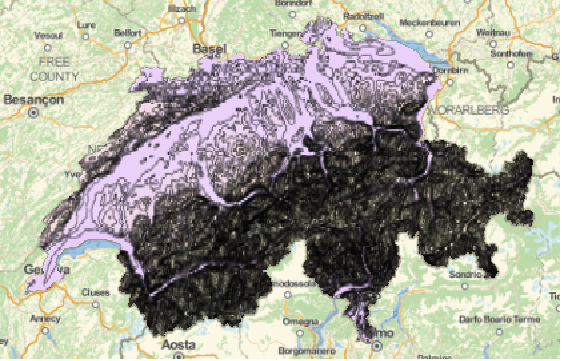

In[1]:=1

✖

https://wolfram.com/xid/0en0cz1no-103kn4

Out[1]=1

Make Switzerland a solid color by removing the default geo style:

In[2]:=2

✖

https://wolfram.com/xid/0en0cz1no-fiw22o

Out[2]=2

Make Switzerland a solid color using the "OutlineMap" geo style with directive Red:

In[3]:=3

✖

https://wolfram.com/xid/0en0cz1no-lxxhpw

Out[3]=3

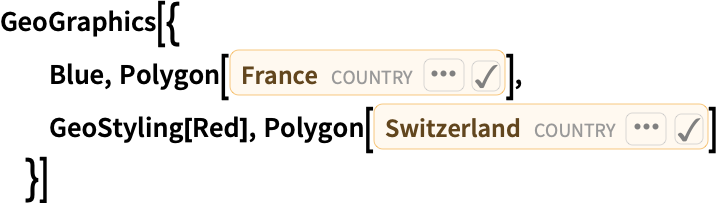

Use a shorthand geo style specification equivalent to the above:

In[4]:=4

✖

https://wolfram.com/xid/0en0cz1no-83nn6b

Out[4]=4

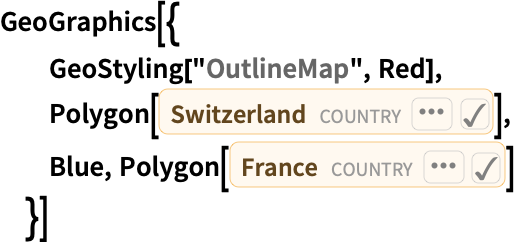

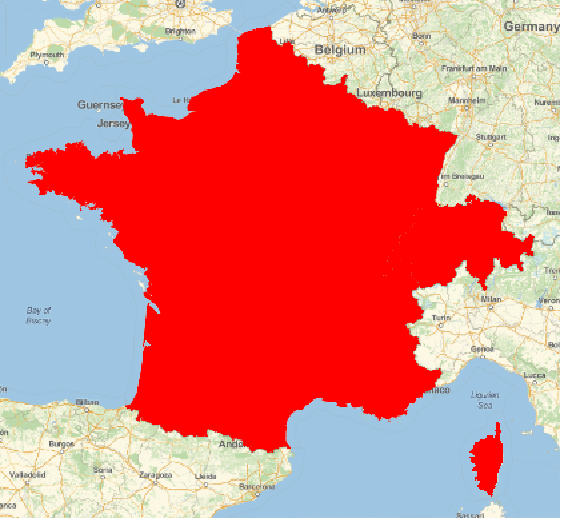

Move France and Switzerland after the geo styling specification turns both red (since the bare color directive in front of France is trumped by the geo styling color specification):

In[5]:=5
