HarmonicMeanFilter
✖
HarmonicMeanFilter

✖

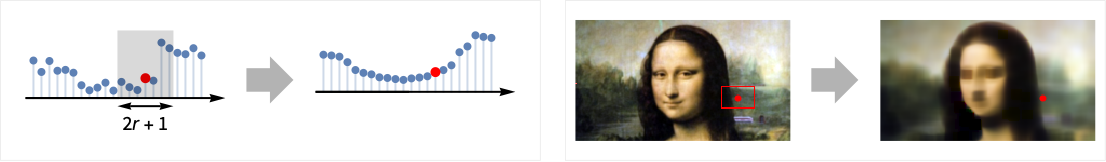

filters data by replacing every value by the harmonic mean value in its range-r neighborhood.

✖
HarmonicMeanFilter[data,{r1,r2,…}]

uses ri for filtering the ^(th)dimension in data.

Details

  • HarmonicMeanFilter is used to locally smooth data, particularly when extreme values are present, where the amount of smoothing is dependent on the value of r.
  • The function applied to each range-r neighborhood is HarmonicMean.
  • The data can be any of the following:
  • listarbitrary-rank numerical array
    tseriestemporal data such as TimeSeries, TemporalData, …
    imagearbitrary Image or Image3D object
    audioan Audio object
  • For multichannel images and audio signals, HarmonicMeanFilter operates separately on each channel.

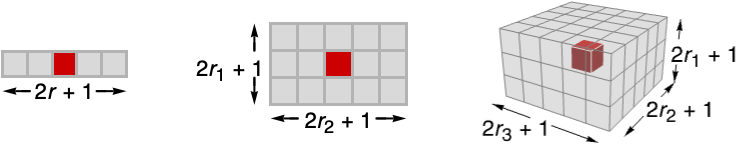

  • HarmonicMeanFilter[data,{r1,r2,…}] computes the harmonic mean value in blocks centered on each sample.
  • HarmonicMeanFilter assumes the index coordinate system for lists and images.
  • At the data boundaries, HarmonicMeanFilter uses smaller neighborhoods.

Examples

open allclose all

Basic Examples  (3)Summary of the most common use cases

Harmonic mean filtering of a list:

In[6]:=6
✖
https://wolfram.com/xid/0cptyoea8obhuy-s47pnq
Out[6]=6

Filter a TimeSeries:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-ctzx4
In[2]:=2
✖
https://wolfram.com/xid/0cptyoea8obhuy-77v7p5
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0cptyoea8obhuy-18tdm0
Out[3]=3

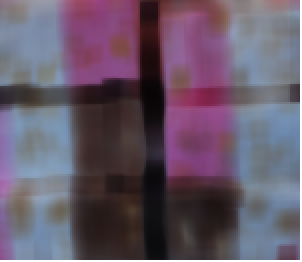

Harmonic mean filtering applied to a color image:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-hz36oe
Out[1]=1

Scope  (12)Survey of the scope of standard use cases

Data  (8)

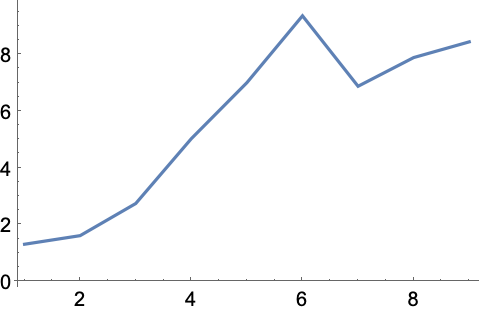

Apply a moving harmonic mean filter to a vector:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-wfj9re
Out[1]=1

Harmonic mean filtering of a 2D array:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-cxywqj

Filter a TimeSeries:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-cx9jy
In[2]:=2
✖
https://wolfram.com/xid/0cptyoea8obhuy-4amfq
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0cptyoea8obhuy-cv7xrc
Out[3]=3

Filter a quantity array:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-jopin9
Out[1]=1

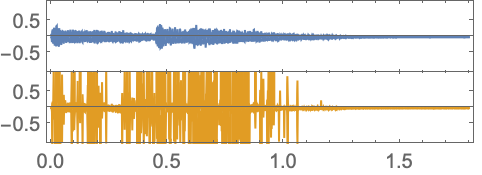

Filter an Audio signal:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-dflgzt
In[2]:=2
✖
https://wolfram.com/xid/0cptyoea8obhuy-em7h2s
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0cptyoea8obhuy-ndwk9g
Out[3]=3

Filtering a 2D grayscale image:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-dc0gtv
Out[1]=1

Harmonic mean filtering of a 3D volume:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-6jwd04
Out[1]=1

Filter a symbolic array:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-lm9bsz
Out[1]=1

Parameters  (4)

Specify one radius to be used in all directions:

In[2]:=2
✖
https://wolfram.com/xid/0cptyoea8obhuy-tlzgi7
Out[2]=2

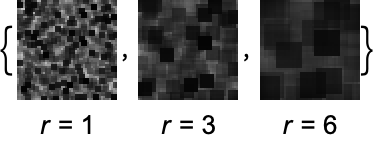

Increasing the radius will result in smoother images:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-ibus74
Out[1]=1

Harmonic mean filtering just in the first direction:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-gdx3zh
Out[1]=1

Second direction:

In[2]:=2
✖
https://wolfram.com/xid/0cptyoea8obhuy-hzoyls
Out[2]=2

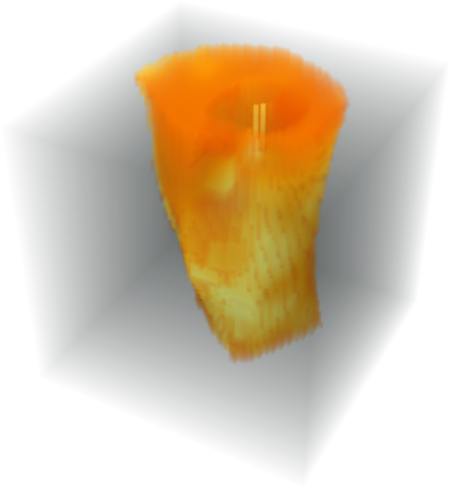

Harmonic mean filtering of a 3D image in the vertical direction only:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-37xttb
Out[1]=1

Filtering of the horizontal planes only:

In[2]:=2
✖
https://wolfram.com/xid/0cptyoea8obhuy-5u7xo
Out[2]=2

Applications  (3)Sample problems that can be solved with this function

Blur a grayscale image:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-e400fa
Out[1]=1

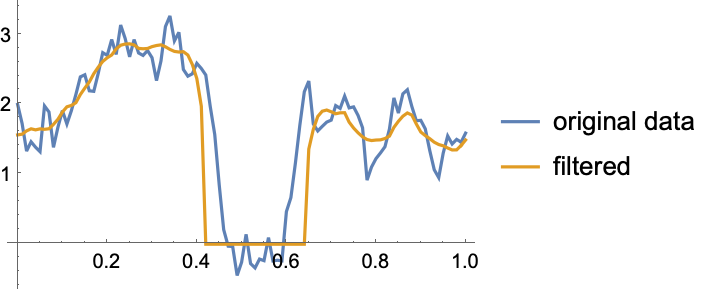

Use harmonic mean filtering if your data has outliers:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-ioz7qz
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0cptyoea8obhuy-icwggl
Out[2]=2

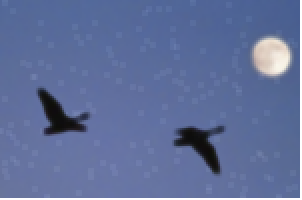

Reduce effect of outliers in an image:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-e5xtyf
Out[1]=1

Properties & Relations  (4)Properties of the function, and connections to other functions

The harmonic mean is the reciprocal of the mean of reciprocals of the given data:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-cqzltl
Out[2]=2

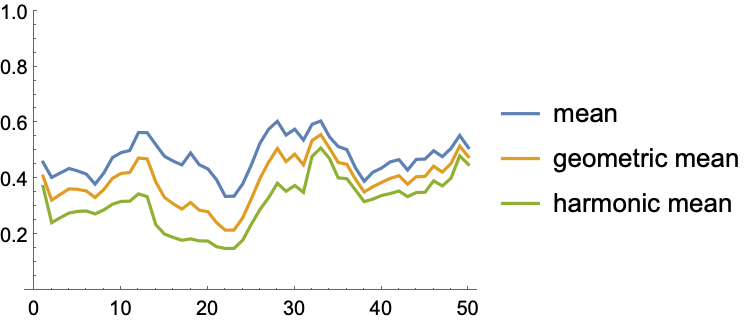

For positive data, HarmonicMeanFilter[data,r]≤GeometricMeanFilter[data,r]≤MeanFilter[data,r]:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-i40d86
Out[1]=1

Harmonic mean filtering is the same as ArrayFilter with function HarmonicMean:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-fns4nv
Out[1]=1

Harmonic mean filtering is the same as ImageFilter with function HarmonicMean:

In[1]:=1
✖
https://wolfram.com/xid/0cptyoea8obhuy-dhww66
Out[1]=1
