ImageCorrelate
✖
ImageCorrelate

✖
ImageCorrelate[image,ker]

gives the correlation of image with kernel ker.

✖
ImageCorrelate[image,ker,f]

computes a generalized correlation in which the function f is used in place of Dot.

Details and Options

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

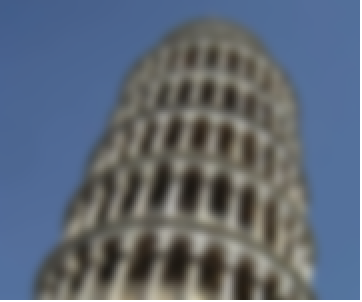

Blur an image by correlating it with a Gaussian matrix:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-uewgx
Out[1]=1

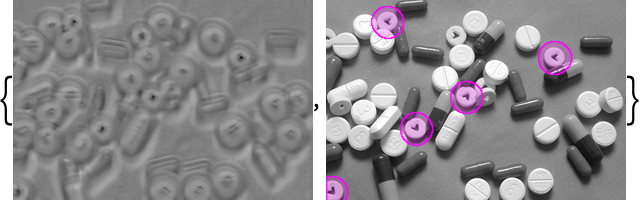

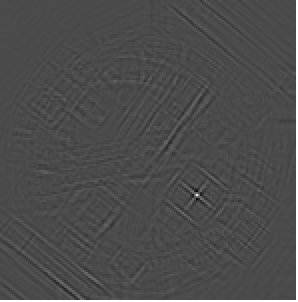

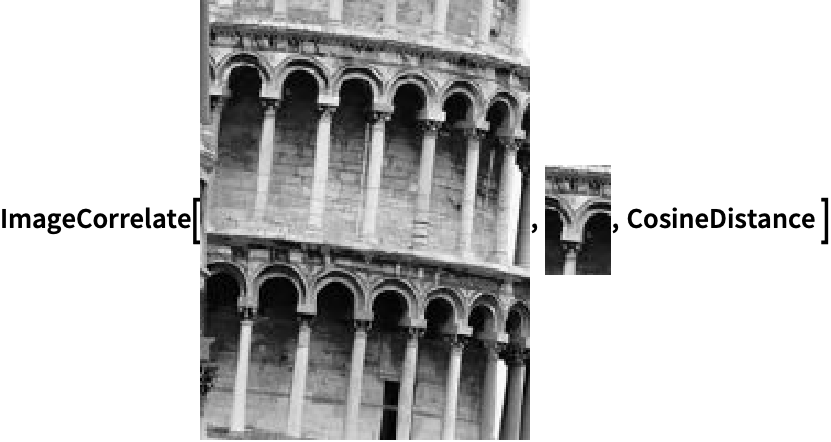

Find occurrences of a template in an image:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-1mw824
Out[1]=1

Scope  (5)Survey of the scope of standard use cases

Data  (3)

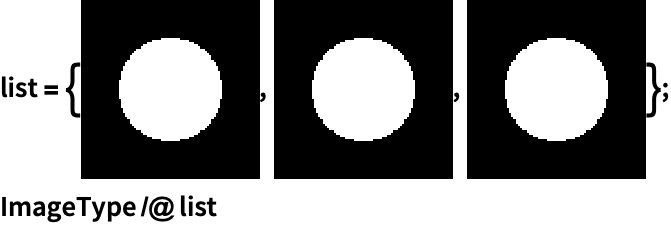

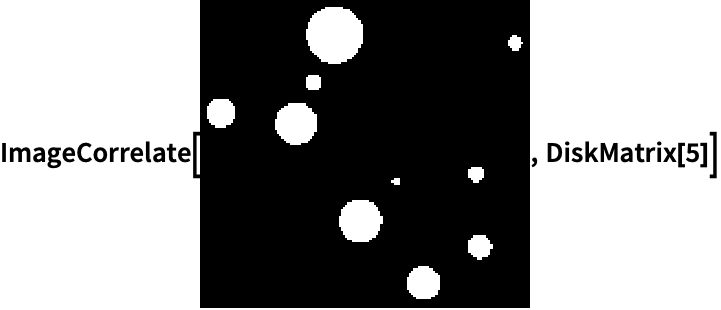

Correlate a binary image with a disk-shaped kernel:

In[18]:=18
✖
https://wolfram.com/xid/0d6glnoak6-eseo7i
Out[18]=18

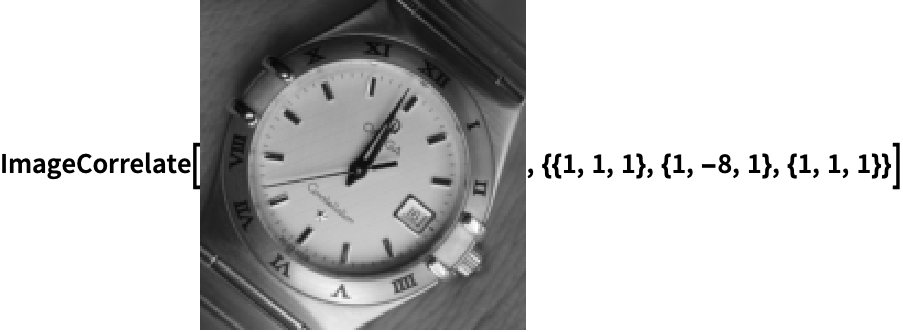

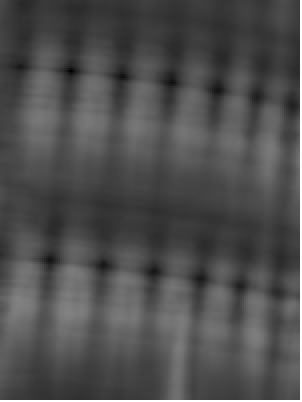

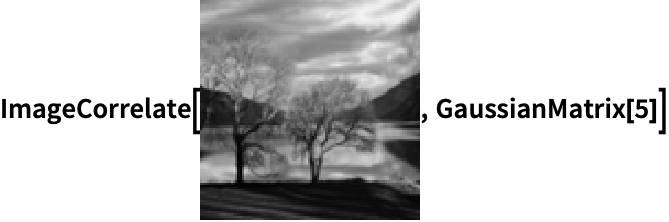

Correlate a grayscale image:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-gpeokf
Out[1]=1

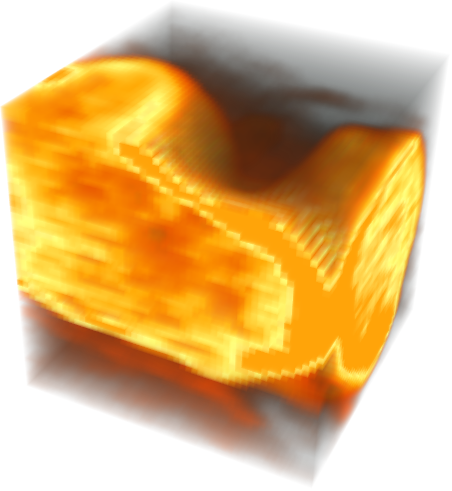

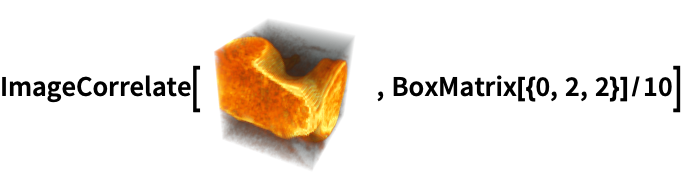

Correlate a 3D image:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-h10vih
Out[1]=1

Parameters  (2)

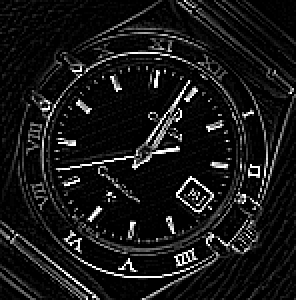

Use a Laplacian kernel:

In[6]:=6
✖
https://wolfram.com/xid/0d6glnoak6-9zt29
Out[6]=6

Use a template:

In[5]:=5
✖
https://wolfram.com/xid/0d6glnoak6-cxy4y8
Out[5]=5

The default correlation operator f is Dot:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-ff8amf
Out[1]=1

Use a different correlation operator:

In[2]:=2
✖
https://wolfram.com/xid/0d6glnoak6-uul14
Out[2]=2

Generalizations & Extensions  (2)Generalized and extended use cases

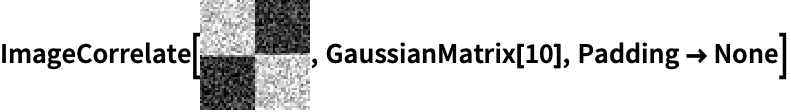

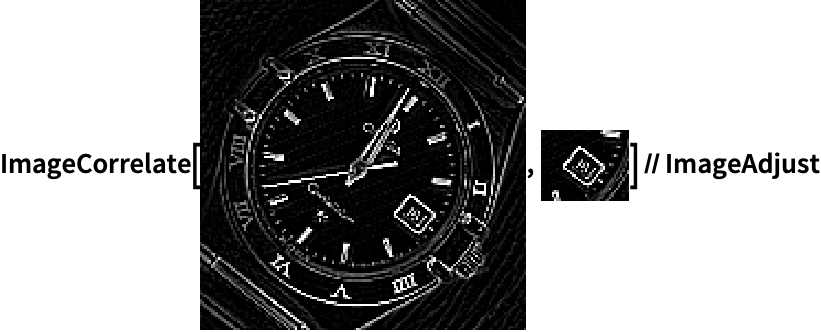

Nonrectangular templates are better matched when used with a mask:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-lppg

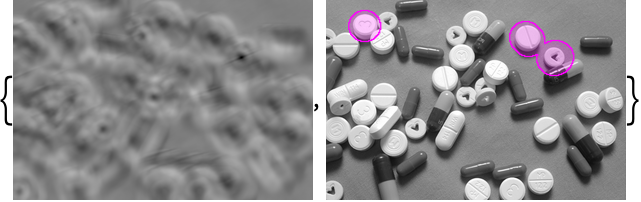

The correlation obtained using a mask is more robust to background changes:

In[3]:=3
✖
https://wolfram.com/xid/0d6glnoak6-t1txa2
Out[5]=5

Result of the template matching without using the mask:

In[6]:=6
✖
https://wolfram.com/xid/0d6glnoak6-jt711q
Out[6]=6

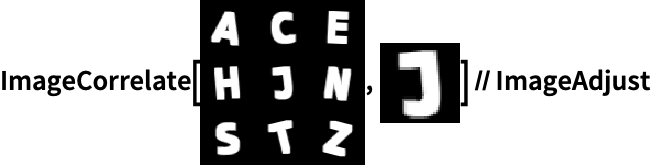

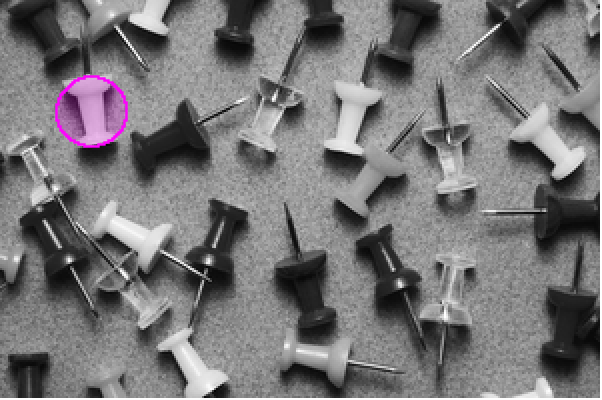

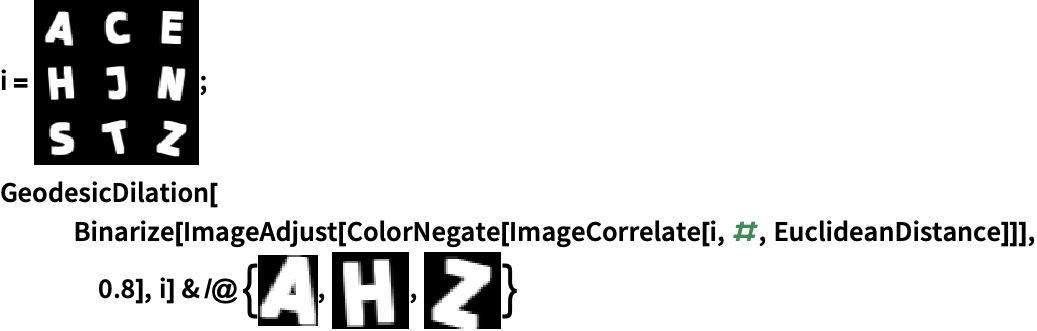

Match rotated occurrences of a template by matching the template rotated using a range of angles:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-yqanbg
In[2]:=2
✖
https://wolfram.com/xid/0d6glnoak6-o0jgky

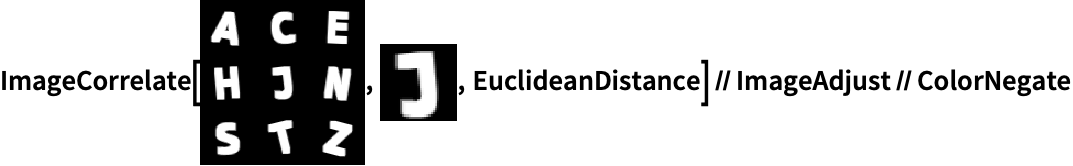

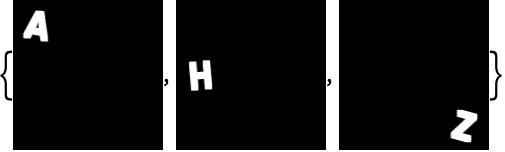

Visualize the best matches:

In[3]:=3
✖
https://wolfram.com/xid/0d6glnoak6-5ha40r
Out[3]=3

Result of the template matching without taking into account multiple orientations:

In[4]:=4
✖
https://wolfram.com/xid/0d6glnoak6-icx840
Out[4]=4

Options  (3)Common values & functionality for each option

Padding  (3)

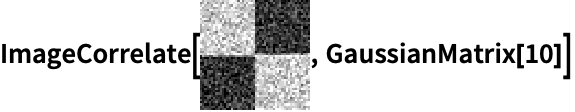

By default, a "Fixed" padding is used:

In[2]:=2
✖
https://wolfram.com/xid/0d6glnoak6-cld43g
Out[2]=2

Specify a custom padding:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-hkxa45
Out[1]=1

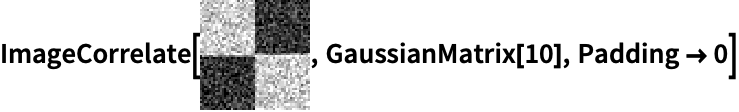

Padding->None normally returns an image smaller than the input image:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-chzbeb
Out[1]=1

Applications  (2)Sample problems that can be solved with this function

Isolate regions of interest in an image:

In[21]:=21
✖
https://wolfram.com/xid/0d6glnoak6-coir9o
Out[22]=22

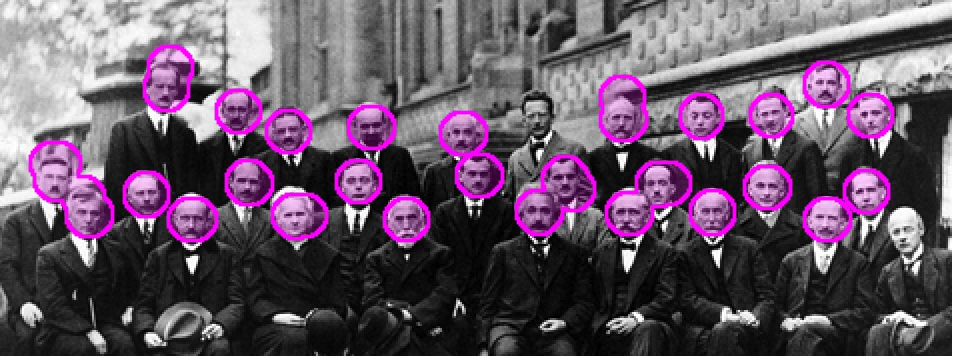

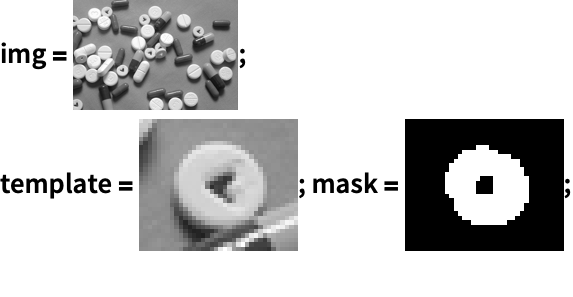

A basic face detector that uses the normalized correlation with an image of a pair of eyes:

In[1]:=1
✖
https://wolfram.com/xid/0d6glnoak6-z83p6z
In[2]:=2
✖
https://wolfram.com/xid/0d6glnoak6-qhjb8h
In[3]:=3
✖
https://wolfram.com/xid/0d6glnoak6-ig47he
Out[3]=3

Properties & Relations  (1)Properties of the function, and connections to other functions

ImageCorrelate gives an image of a real type:

In[2]:=2
✖
https://wolfram.com/xid/0d6glnoak6-cs5cgu
Out[3]=3
In[5]:=5
✖
https://wolfram.com/xid/0d6glnoak6-mlpwr3
Out[5]=5
