MaxCellMeasure

MaxCellMeasure

is an option for DiscretizeRegion and related functions that specifies the maximum cell measure for the result.

Details

  • Possible settings for a region of dimension include:
  • mconstrain the -dimensional measure to be at most m
    {…,dimi,…}constrain the -dimensional measure to be at most mi
  • The names "Volume", "Area", and "Length" may be used in place of the dimensions 3, 2, and 1.
  • When only a few cell measure constraints are given, other constraints are automatically computed to be compatible with mesh cells of reasonable quality.

Examples

open allclose all

Basic Examples  (1)

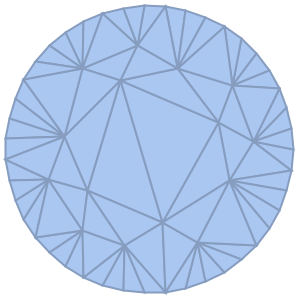

Discretize a unit disk into triangles with area at most 0.5:

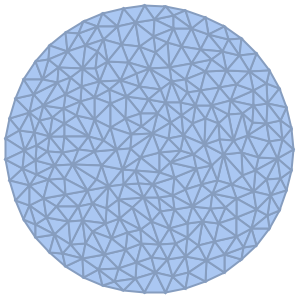

Restrict the area to 0.01:

Scope  (8)

Discretize a unit disk into triangles with area at most 0.1:

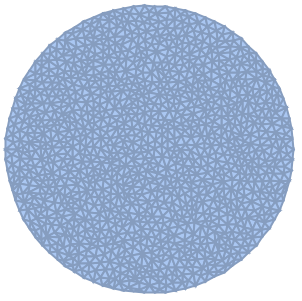

Restrict the area to 0.01:

This gives the areas of the triangles:

Specify a maximum length for line segments:

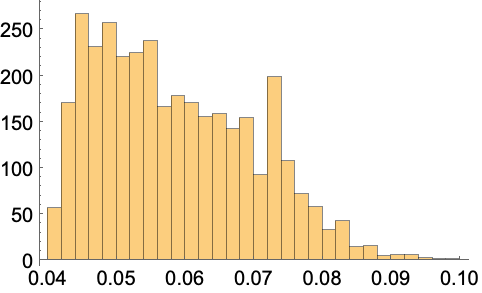

A Histogram of the line segment lengths:

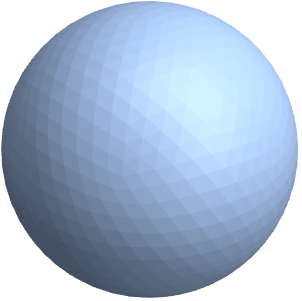

In 3D, specify a maximum area for faces:

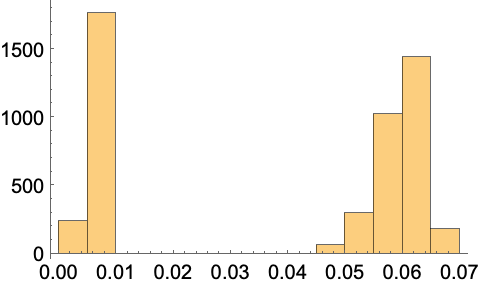

A Histogram of the face areas:

Discretize a Graphics scene with a maximum cell area of 0.1:

Discretize a Graphics3D scene with a maximum cell volume of 0.1:

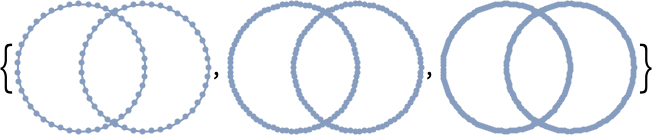

Compare different length settings:

Compare different area settings:

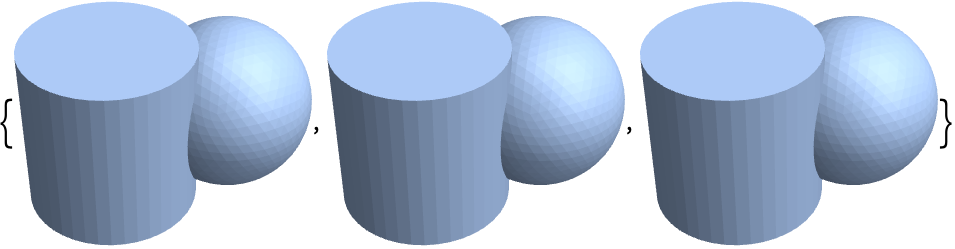

Compare different face area settings:

Applications  (1)

More accurately approximate a curved boundary by reducing MaxCellMeasure:
