RegionDilation
✖
RegionDilation

✖

gives the dilation of the region reg by a disk of radius r centered at the origin.

✖
RegionDilation[reg1,reg2]

gives the dilation of the region reg1 by the region reg2.

✖
RegionDilation[reg1,reg2,{u,v}]

gives the dilation of reg1 scaled by a factor u and reg2 scaled by a factor v.

Details and Options

  • RegionDilation is also known as Minkowski sum, geometric sum or offset.
  • Typically used to construct the union of positions of a region through translation.

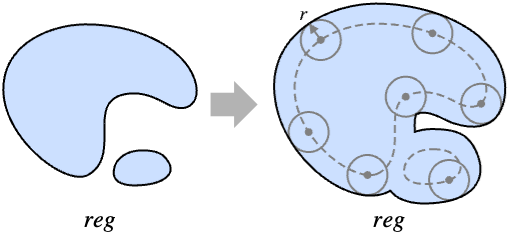

  • RegionDilation[reg,r] gives the dilation of the region reg by a disk of radius r.
  • RegionDilation[reg1,reg2] returns the region reg1⊕reg2={a+b|a∈reg1∧b∈reg2}.
  • RegionDilation[reg1,reg2,{u,v}] returns the region u reg1⊕v reg2={u a+v b|a∈reg1∧b∈reg2}.
  • RegionDilation takes the same options as Region.

Examples

open allclose all

Basic Examples  (4)Summary of the most common use cases

Dilation of a disk:

In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-7470ib
Out[2]=2

Dilation of Triangle by Disk:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-5sofxx
Out[1]=1

Dilation of Rectangle by Triangle:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-zfeyxd
Out[1]=1

Visualize it:

In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-fuvyxr
Out[2]=2

Dilation of two regions:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-i47t61
Out[1]=1

Visualize it:

In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-9btejp
Out[2]=2

Scope  (8)Survey of the scope of standard use cases

Special Regions  (4)

Dilation of two lines:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-1opzvd
Out[1]=1

Visualize it:

In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-igwg55
Out[2]=2

Dilation of two disks:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-hl5gpm
In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-tsw7u5
Out[2]=2

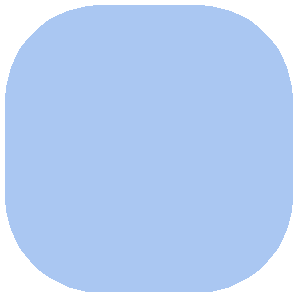

Dilation of a rectangle and a disk:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-dpwalb
Out[1]=1

A disk and a circle:

In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-dq7yx6

Visualize it:

In[3]:=3
✖
https://wolfram.com/xid/0g7ijzsssey-of250
Out[3]=3

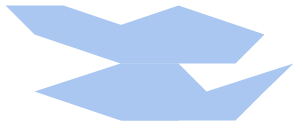

Dilation of two polygons:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-h9631g
In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-b76l3e

Visualize it:

In[3]:=3
✖
https://wolfram.com/xid/0g7ijzsssey-unxw
Out[3]=3

Formula Regions  (1)

RegionDilation of ImplicitRegion objects:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-crtuk1
In[3]:=3
✖
https://wolfram.com/xid/0g7ijzsssey-p5g6yh
Out[3]=3

2D:

In[4]:=4
✖
https://wolfram.com/xid/0g7ijzsssey-gc5987
In[6]:=6
✖
https://wolfram.com/xid/0g7ijzsssey-fbwnu3
Out[6]=6
In[7]:=7
✖
https://wolfram.com/xid/0g7ijzsssey-3s8ugb
Out[7]=7

Mesh Regions  (1)

Dilation of two BoundaryMeshRegion objects:

In[10]:=10
✖
https://wolfram.com/xid/0g7ijzsssey-bep0zh
In[11]:=11
✖
https://wolfram.com/xid/0g7ijzsssey-evjawf
Out[11]=11

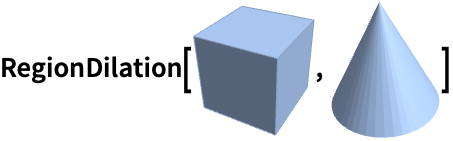

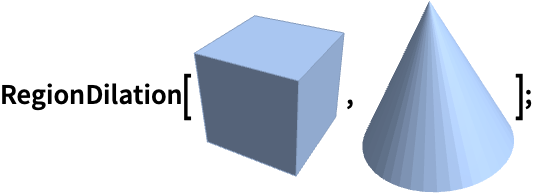

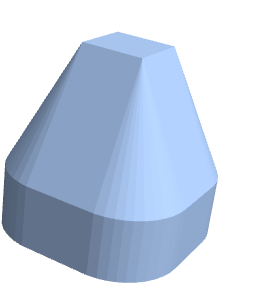

In 3D:

In[12]:=12
✖
https://wolfram.com/xid/0g7ijzsssey-3h9218
In[13]:=13
✖
https://wolfram.com/xid/0g7ijzsssey-5r3i0z
Out[13]=13

Derived Regions  (2)

Dilation of two BooleanRegion objects:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-fzcaz8
In[3]:=3
✖
https://wolfram.com/xid/0g7ijzsssey-d19z6l

Visualize it:

In[4]:=4
✖
https://wolfram.com/xid/0g7ijzsssey-b3gvca
Out[4]=4

Dilation of two TransformedRegion objects:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-fdpyhr
In[2]:=2
✖
https://wolfram.com/xid/0g7ijzsssey-hj2g71

Visualize it:

In[3]:=3
✖
https://wolfram.com/xid/0g7ijzsssey-c2ee5
Out[3]=3

Possible Issues  (1)Common pitfalls and unexpected behavior

RegionDilation gives an approximate result when the exact result cannot be computed:

In[1]:=1
✖
https://wolfram.com/xid/0g7ijzsssey-qh1w39
Out[1]=1

Turn on the message:

In[5]:=5
✖
https://wolfram.com/xid/0g7ijzsssey-w3t8yg
In[3]:=3
✖
https://wolfram.com/xid/0g7ijzsssey-l6k8sb
Out[3]=3
