SpheroidalPS[n,m,γ,z]

gives the angular spheroidal function of the first kind.

Details

  • Mathematical function, suitable for both symbolic and numerical manipulation.
  • The angular spheroidal functions satisfy the differential equation with the spheroidal eigenvalue given by SpheroidalEigenvalue[n,m,γ].
  • SpheroidalPS[n,m,0,z] is equivalent to LegendreP[n,m,z].
  • SpheroidalPS[n,m,a,γ,z] gives spheroidal functions of type . The types are specified as for LegendreP.
  • For certain special arguments, SpheroidalPS automatically evaluates to exact values.
  • SpheroidalPS can be evaluated to arbitrary numerical precision.
  • SpheroidalPS automatically threads over lists. »

Examples

open allclose all

Basic Examples  (6)Summary of the most common use cases

Evaluate numerically:

Out[1]=1

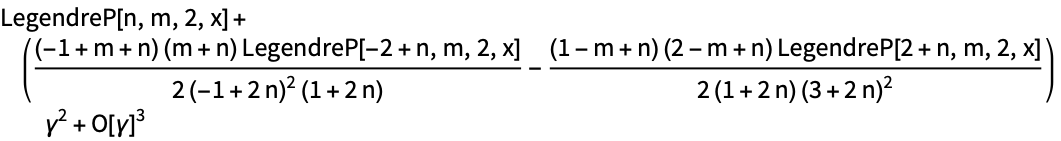

Expansion about the spherical case:

Out[1]=1

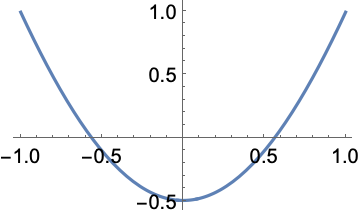

Plot over a subset of the reals:

Out[1]=1

Series expansion at the origin:

Out[1]=1

Series expansion at Infinity:

Out[1]=1

Series expansion at a singular point:

Out[1]=1

Scope  (25)Survey of the scope of standard use cases

Numerical Evaluation  (6)

Evaluate numerically:

Out[1]=1
Out[2]=2

Evaluate to high precision:

Out[1]=1
Out[2]=2

The precision of the output tracks the precision of the input:

Out[3]=3

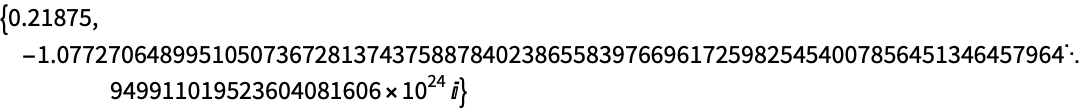

Complex number inputs:

Out[1]=1

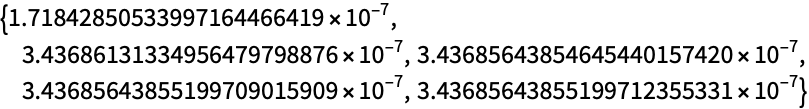

Evaluate efficiently at high precision:

Out[1]=1
Out[2]=2

Compute the elementwise values of an array using automatic threading:

Out[1]=1

Or compute the matrix SpheroidalPS function using MatrixFunction:

Out[2]=2

Compute average-case statistical intervals using Around:

Out[1]=1

Specific Values  (4)

Evaluate symbolically:

Out[1]=1

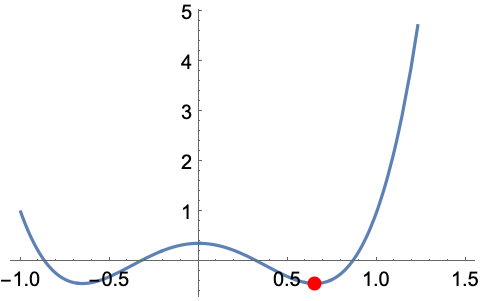

Find the first positive minimum of SpheroidalPS[4,0,1/2,x]:

Out[1]=1
Out[2]=2

Evaluate the SpheroidalPS function for half-integer parameters:

Out[1]=1
Out[2]=2

Different SpheroidalPS types give different symbolic forms:

Out[1]=1

Visualization  (3)

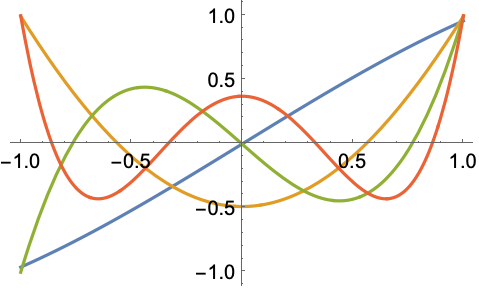

Plot the SpheroidalPS function for various orders:

Out[1]=1

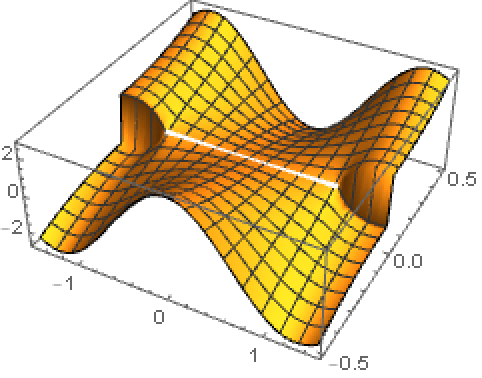

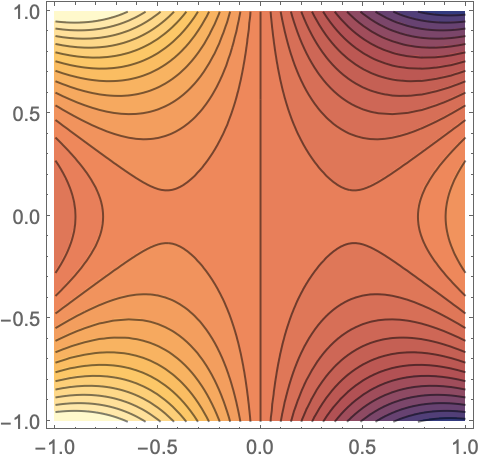

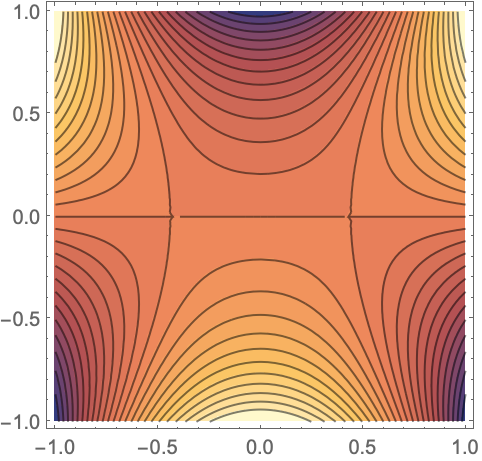

Plot the real part of TemplateBox[{3, 0, 1, z}, SpheroidalPS]:

Out[1]=1

Plot the imaginary part of TemplateBox[{3, 0, 1, z}, SpheroidalPS]:

Out[2]=2

Types 2 and 3 of SpheroidalPS functions have different branch cut structures:

Out[1]=1
Out[2]=2

Function Properties  (8)

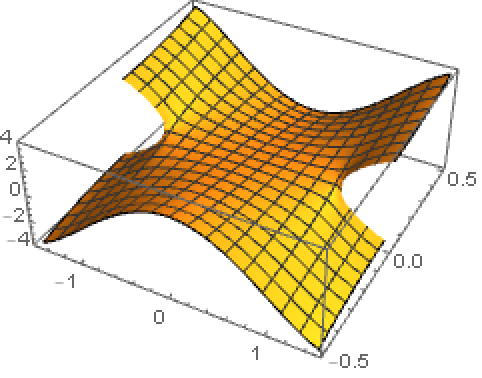

The real domain of TemplateBox[{1, 2, 2, x}, SpheroidalPS]:

Out[3]=3

The complex domain of TemplateBox[{1, 2, 2, x}, SpheroidalPS]:

Out[1]=1

TemplateBox[{1, 2, gamma, 3}, SpheroidalPS] is an even function with respect to :

Out[1]=1

TemplateBox[{1, 2, gamma, 3}, SpheroidalPS] has the mirror property TemplateBox[{1, 2, 3, {z, }}, SpheroidalPS]=TemplateBox[{1, 2, 3, z}, SpheroidalPS]:

Out[1]=1

TemplateBox[{2, 0, 1, x}, SpheroidalPS] has no singularities or discontinuities:

Out[1]=1
Out[2]=2

TemplateBox[{2, 0, 1, x}, SpheroidalPS] is neither non-decreasing nor non-increasing:

Out[1]=1

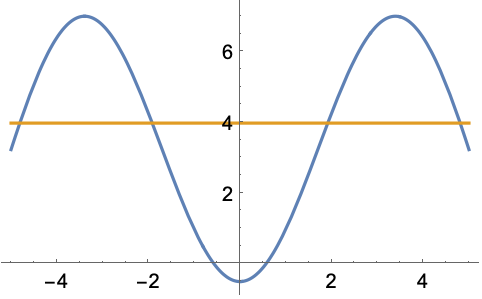

TemplateBox[{2, 0, 1, x}, SpheroidalPS] is not injective:

Out[1]=1
Out[2]=2

TemplateBox[{2, 0, 1, x}, SpheroidalPS] is neither non-negative nor non-positive:

Out[1]=1

TraditionalForm formatting:

Differentiation  (2)

The first derivative with respect to z:

Out[1]=1

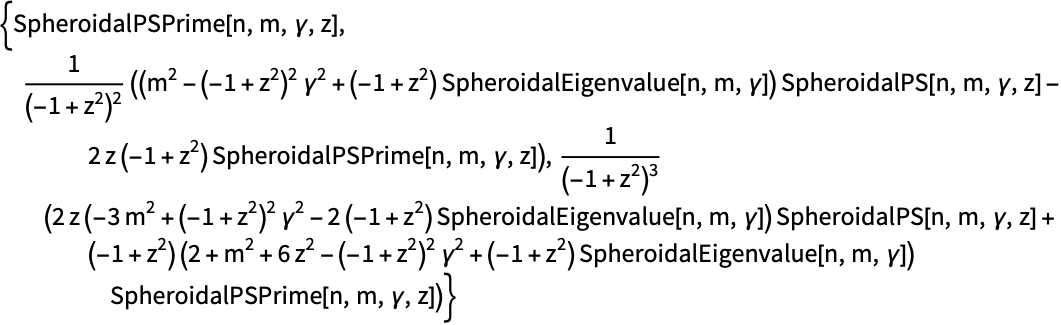

Higher derivatives with respect to z:

Out[1]=1

Plot the higher derivatives with respect to z when n=10, m=2 and γ=1/3:

Out[2]=2

Series Expansions  (2)

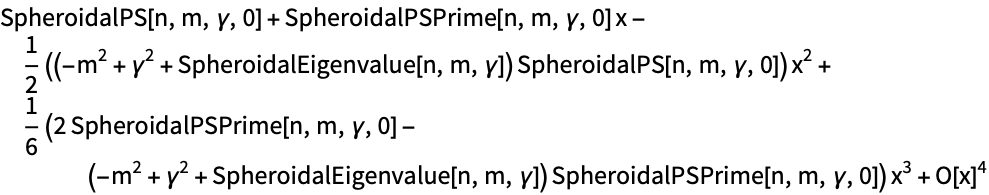

Find the Taylor expansion using Series:

Out[1]=1

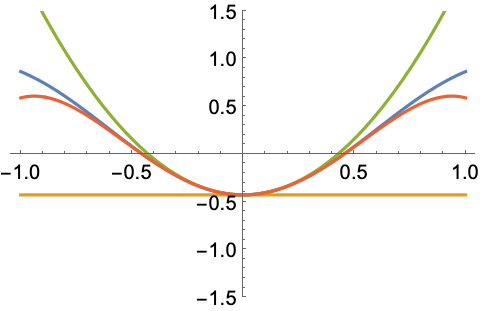

Plots of the first three approximations around :

Out[6]=6

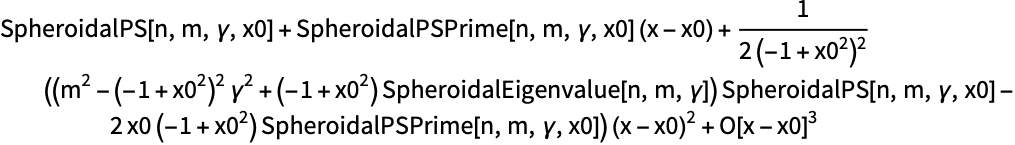

The Taylor expansion at a generic point:

Out[1]=1

Generalizations & Extensions  (1)Generalized and extended use cases

The different types of SpheroidalPS have different branch cut structures:

Applications  (4)Sample problems that can be solved with this function

Solve the spheroidal differential equation in terms of SpheroidalPS:

Out[1]=1

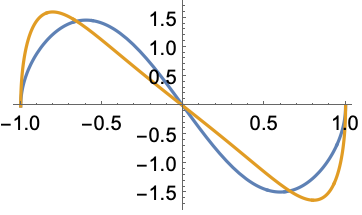

Plot prolate and oblate versions of the same angular function:

Out[1]=1

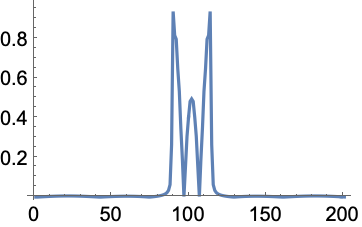

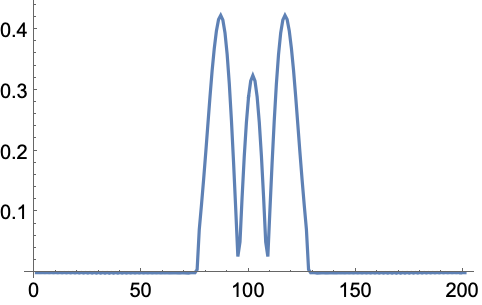

SpheroidalPS is a band-limited function with bandwidth proportional to :

For spheroidicity parameter :

Out[2]=2

For spheroidicity parameter , the bandwidth is higher:

Out[3]=3

Build a near-spherical approximation to :

First few terms of the approximation:

Compare numerically:

Out[3]=3

Properties & Relations  (1)Properties of the function, and connections to other functions

Spheroidal angular harmonics are eigenfunctions of the Sinc transform on the interval :

Possible Issues  (2)Common pitfalls and unexpected behavior

Spheroidal functions do not evaluate for half-integer values of n or generic values of m:

Out[1]=1

Angular spheroidal harmonics in the Wolfram Language adopt the MeixnerSchaefke normalization scheme:

Out[1]=1
Out[2]=2

Flammer normalization is also common:

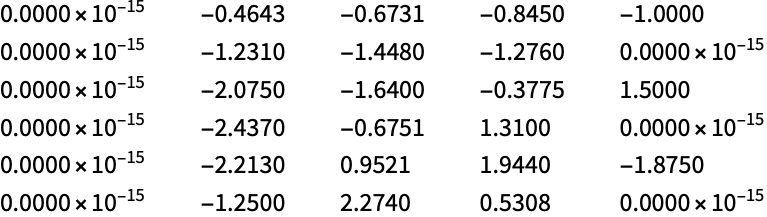

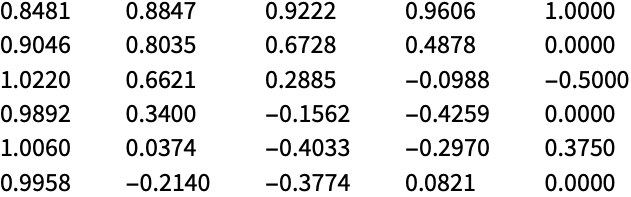

Reconstruct table entries from Abramowitz and Stegun table 21.2:
