TimeSeriesAggregate

TimeSeriesAggregate[tseries,dt]

computes the mean value of tseries over non-overlapping windows of width dt.

TimeSeriesAggregate[tseries,dt,f]

applies the function f to the values of tseries in non-overlapping windows of width dt.

Details

• TimeSeriesAggregate is often used in time series analysis to compute aggregated statistics like yearly averages or monthly totals.

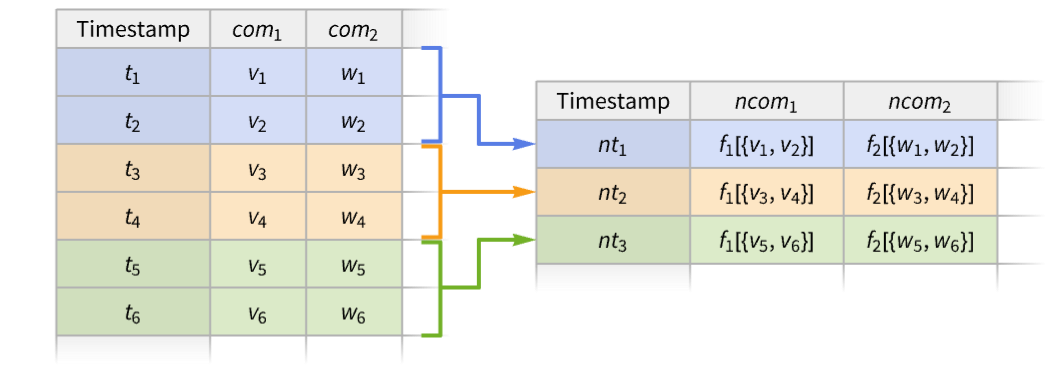

• TimeSeriesAggregate breaks the time series tseries into disjoint left-closed and right-open windows of equal width dt and applies a function f to the values in each segment.
• If there are no values in a segment, the segment is ignored.
• The time series tseries can be a list of values {x1,x2,}, a list of time-value pairs {{t1,x1},{t2,x2},}, a TimeSeries, EventSeries, or TemporalData.
• The window width dt can be given as a positive number, a Quantity, or as a date increment.

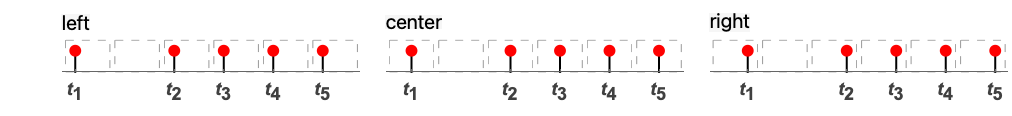

• The window specification {dt,align} can be used to determine the alignment of new times within each window.
• Settings for window alignment align include Left, Center (default), and Right.
• TimeSeriesAggregate threads pathwise for multipath TemporalData.

Examples

open allclose all

Basic Examples(3)

Average successive pairs of values:

Compute the quarterly standard deviation for a financial time series:

Aggregate multiple paths simultaneously:

Average over blocks of width 0.15:

Scope(20)

Basic Uses(3)

Map a function f over data with blocks of width 2:

Compute the 95 quantile for windows of width 0.05:

Find a quartile envelope for blocks of size 10:

Data Types(8)

Aggregate a vector in blocks of 4 using a function f:

Find the two-year average for a list of time-value pairs:

Compute the maximum for width-10 segments of a TimeSeries:

Compute a width-10 median for TemporalData:

Compute a width-5 total for an EventSeries:

Compute a six-month variance for multiple paths simultaneously:

Aggregate over vector-valued data:

Componentwise width-5 range:

Visualize the range:

Aggregate over a time series involving quantities:

Window Widths(5)

Use windows with width 2:

Equivalently:

Specify the window width in calendar time:

Average over windows spanning five days:

Specify a window width using Quantity:

Average over windows spanning two quarters:

Average over windows spanning three weeks and two days:

Larger windows smooth more:

Moving averages with increasing window width:

Alignment(4)

Align new times with the center of the windows:

Center alignment is used by default:

Align new times with the right side of the windows:

Align new times with the left side of the windows:

Compare window alignments:

The values are all equivalent:

The times are not:

A visual comparison:

Applications(2)

Market Volatility(1)

Identify periods of high volatility in the S&P 500:

Five-year standard deviation:

Annual interquartile range:

Two-year range:

Labor Force(1)

Visualize the growth of labor force in California based on monthly data:

Aggregate the data yearly:

Properties & Relations(1)

Independently of the alignment the windows are closed on the left and open on the right:

It is possible that more time stamps are needed:
