WeightedAdjacencyMatrix

WeightedAdjacencyMatrix[g]

gives the adjacency matrix of edge weights of the graph g.

WeightedAdjacencyMatrix[{vw,…}]

uses rules vw to specify the graph g.

Details and Options

  • WeightedAdjacencyMatrix returns a SparseArray object, which can be converted to an ordinary matrix using Normal.

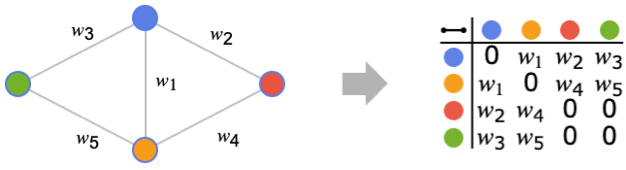

  • An entry wij of the weighted adjacency matrix is the weight of a directed edge from vertex νi to vertex νj. If there is no edge the weight is taken to be 0.
  • An edge without explicit EdgeWeight specified is taken to have weight 1.
  • An undirected edge is interpreted as two directed edges with opposite directions and the same weight.
  • The vertices vi are assumed to be in the order given by VertexList[g].
  • The weighted adjacency matrix for a graph will have dimensions ×, where is the number of vertices.

Examples

open allclose all

Basic Examples  (2)

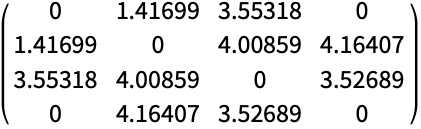

The weighted adjacency matrix of an undirected graph:

The weighted adjacency matrix of a directed graph:

Scope  (5)

The weighted adjacency matrix of an undirected graph is symmetric:

The weighted adjacency matrix of a directed graph can be unsymmetric:

Use rules to specify the graph:

The weighted adjacency matrix of the graph with self-loops has diagonal entries:

WeightedAdjacencyMatrix works with large graphs:

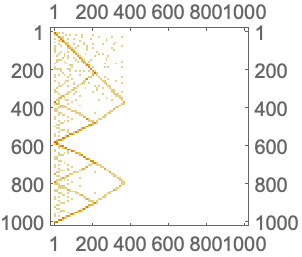

Use MatrixPlot to visualize the matrix:

Properties & Relations  (4)

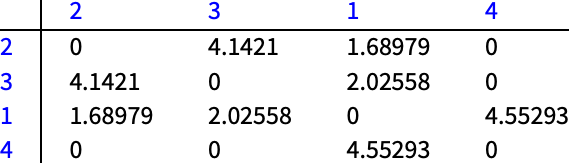

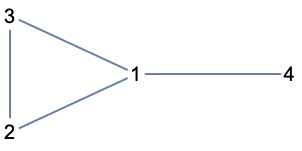

Rows and columns of the weighted adjacency matrix follow the order given by VertexList:

Use WeightedAdjacencyGraph to construct a graph from a weighted adjacency matrix:

The number of rows or columns is equal to the number of vertices:

The main diagonals for a loop-free graph are all zeros:
