BarSpacing
✖
BarSpacing
is an option to BarChart and related functions that controls the spacing between bars and groups of bars.
Details

- The following settings can be given for BarSpacing:
-

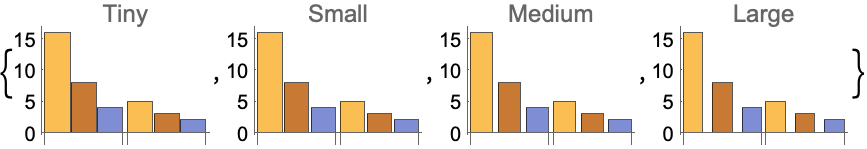

Automatic automatically determine spacing None use no spacing between bars Tiny,Small,Medium,Large use preset automatic spacings s use explicit spacing s between bars {sb,sg} use sb between individual bars and sg between groups - In BarChart and BarChart3D the spacing s is in fractions of the width of a bar.
- In RectangleChart and RectangleChart3D the spacing s is in ordinary coordinates.
Examples
Basic Examples (6)Summary of the most common use cases

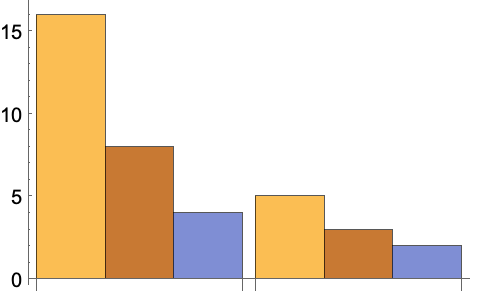

Use automatically determined spacing between bars:

https://wolfram.com/xid/0bdpz2s2y-gbo7on


https://wolfram.com/xid/0bdpz2s2y-bhqoh0


https://wolfram.com/xid/0bdpz2s2y-cyfias

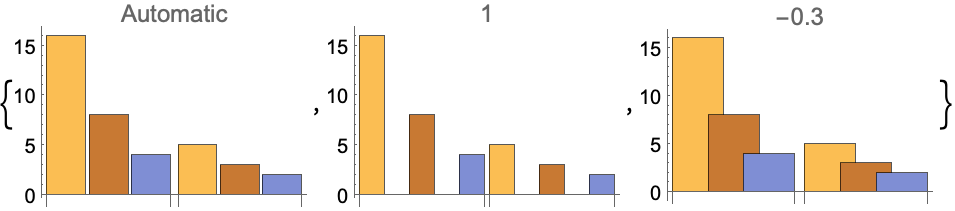

Use explicit spacing between bars:

https://wolfram.com/xid/0bdpz2s2y-vppz2r

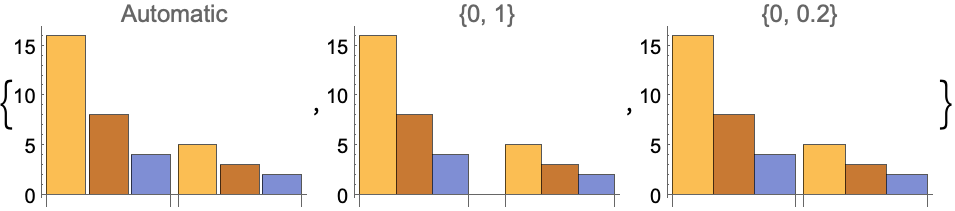

Use explicit spacing between bars and groups of bars:

https://wolfram.com/xid/0bdpz2s2y-99aub

Position bars within a group with the bars separated by a width of 0.5 and no space between groups:

https://wolfram.com/xid/0bdpz2s2y-dor3oe
