CSGRegionTree

CSGRegionTree[reg]

gives the tree expression representing the CSG region reg.

Details and Options

  • CSGRegionTree is also known as CSG tree expression.
  • CSGRegionTree is typically used to generate Tree expressions representing CSG regions.

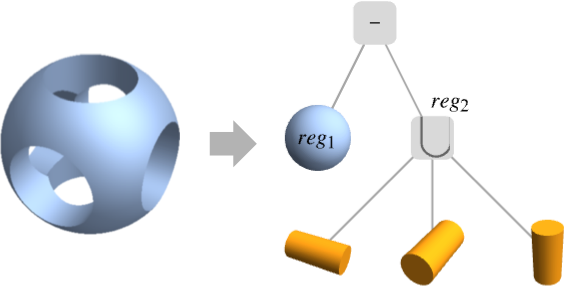

  • A CSG region tree is a tree where leaf vertices represent primitives and other vertices represent Boolean operations and transformations.

Examples

open allclose all

Basic Examples  (1)

A tree of a CSG region:

Scope  (3)

CSGRegionTree works on intersection operations:

Union:

Difference:

CSGRegionTree works on one-level CSG region:

Nested CSG region:

Intersection with more than two regions:

CSGRegionTree works on CSG regions in 2D:

3D:

D:

Properties & Relations  (2)

A CSGRegionTree is a tree:

Leaves of a CSG region tree represent primitives:
