JacobiZN

JacobiZN[u,m]

gives the Jacobi zeta function TemplateBox[{u, m}, JacobiZN].

Details

  • Mathematical function, suitable for both symbolic and numerical manipulation.
  • TemplateBox[{u, m}, JacobiZN]=int_0^u(TemplateBox[{z, m}, JacobiDN]^2-TemplateBox[{m}, EllipticE]/TemplateBox[{m}, EllipticK])dz.
  • Argument conventions for elliptic integrals are discussed in "Elliptic Integrals and Elliptic Functions".
  • TemplateBox[{u, m}, JacobiZN] is a singly periodic function in with the period 2 TemplateBox[{m}, EllipticK], where is the elliptic integral EllipticK. »
  • JacobiZN is a meromorphic function in both arguments.
  • For certain special arguments, JacobiZN automatically evaluates to exact values.
  • JacobiZN can be evaluated to arbitrary numerical precision.
  • JacobiZN automatically threads over lists.

Examples

open allclose all

Basic Examples  (3)

Evaluate numerically:

Series expansion about the origin:

Scope  (24)

Numerical Evaluation  (5)

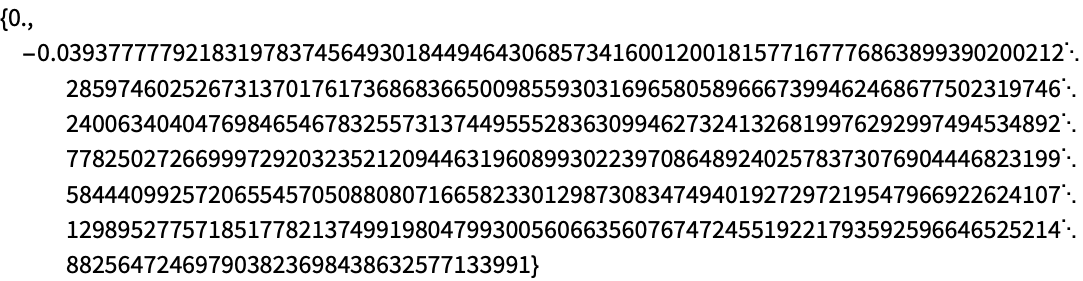

Evaluate to high precision:

The precision of the output tracks the precision of the input:

Evaluate for complex arguments:

Evaluate JacobiZN efficiently at higher precision:

Compute average case statistical intervals using Around:

Compute the elementwise values of an array:

Or compute the matrix JacobiZN function using MatrixFunction:

Specific Values  (3)

Simple exact values are generated automatically:

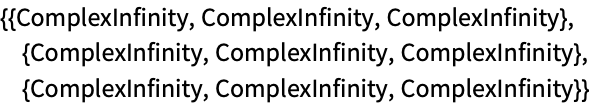

JacobiZN has poles coinciding with poles of JacobiDN:

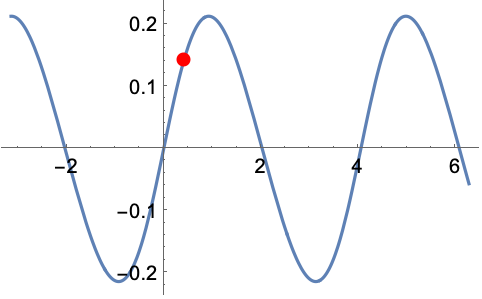

Find a root of JacobiZN[u,2/3]=1/7:

Visualization  (3)

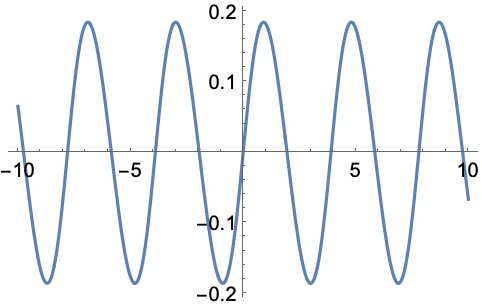

Plot JacobiZN functions for various values of parameter m:

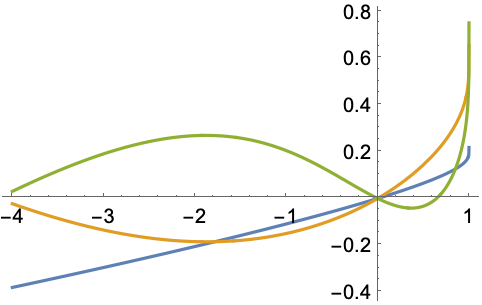

Plot JacobiZN as a function of its parameter m:

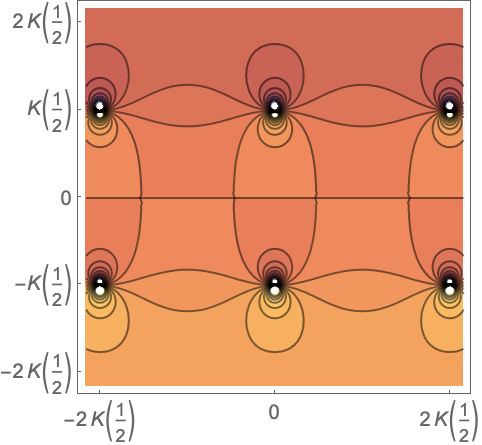

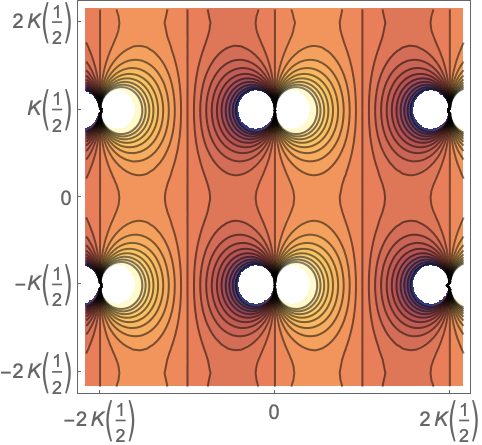

Plot the real part of JacobiZN[x+y,1/2]:

Plot the imaginary part of JacobiZN[x+y,1/2]:

Function Properties  (2)

JacobiZN is periodic with period 2 TemplateBox[{m}, EllipticK]:

JacobiZN is additive quasiperiodic with a quasiperiod of 2 ⅈ TemplateBox[{{1, -, m}}, EllipticK]:

JacobiZN is an odd function:

Differentiation  (3)

First derivative:

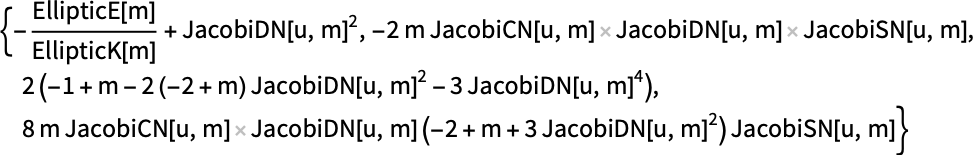

Higher-order derivatives:

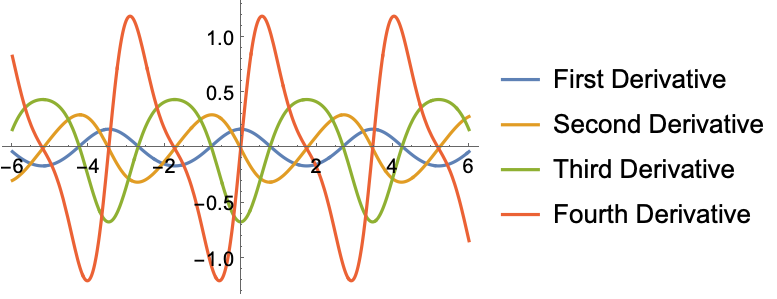

Plot derivatives for parameter :

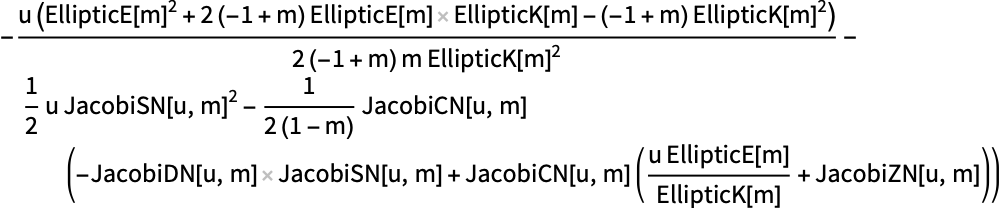

Derivative with respect to parameter m:

Integration  (1)

Indefinite integral of JacobiZN:

Series Expansions  (3)

Series expansion for JacobiZN[u,1/3] around :

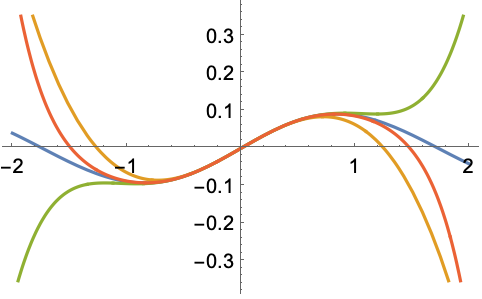

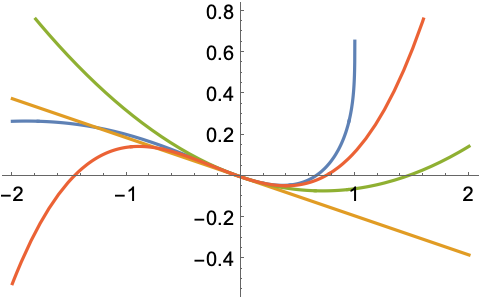

Plot three approximations for JacobiZN[u,1/3]:

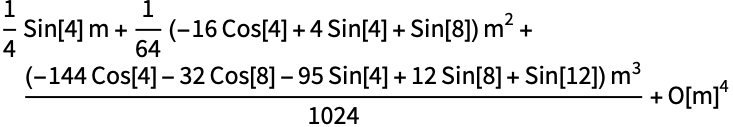

Taylor series for JacobiZN[2,m] around :

Plot series approximations for JacobiZN[2,m]:

JacobiZN can be applied to power series:

Function Identities and Simplifications  (2)

Parity transformation and quasiperiodicity relations are automatically applied:

Automatic argument simplification:

Function Representations  (2)

JacobiZN is related to JacobiZeta function:

TraditionalForm formatting:

Applications  (4)

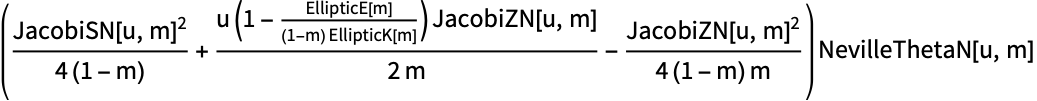

Express derivatives of Neville theta functions:

Supersymmetric zero‐energy solution of the Schrödinger equation in a periodic potential:

Define a solution using JacobiZN:

Check that the function defined previously solves the Schrödinger equation:

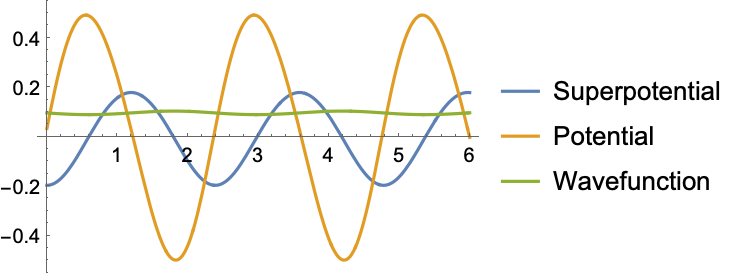

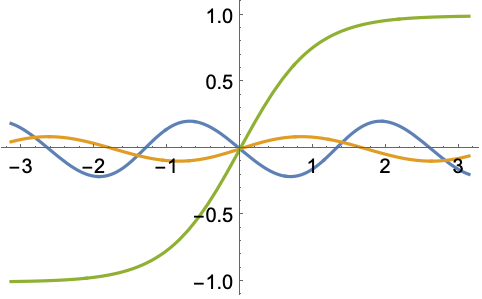

Plot the superpotential, the potential and the wavefunction:

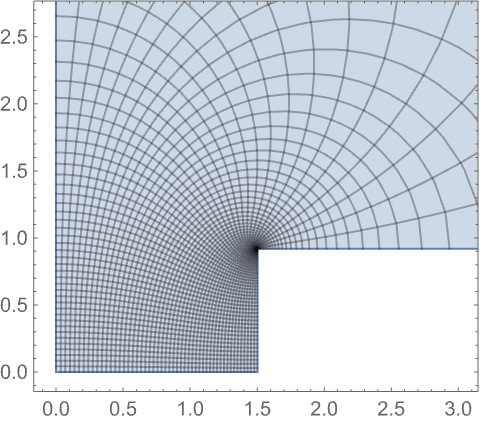

Define a conformal map using JacobiZN:

Parameterization of genus‐1 constant mean-curvature Wente torus:

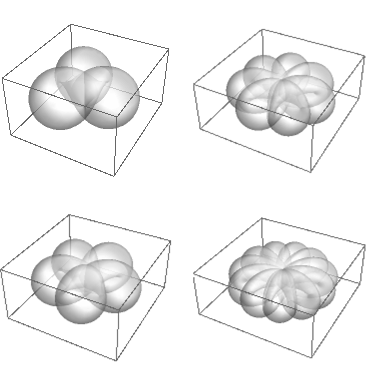

Visualize 3‐lobe, 5‐lobe, 7‐lobe and 11‐lobe tori:

Properties & Relations  (2)

JacobiZN is defined in terms of JacobiEpsilon:

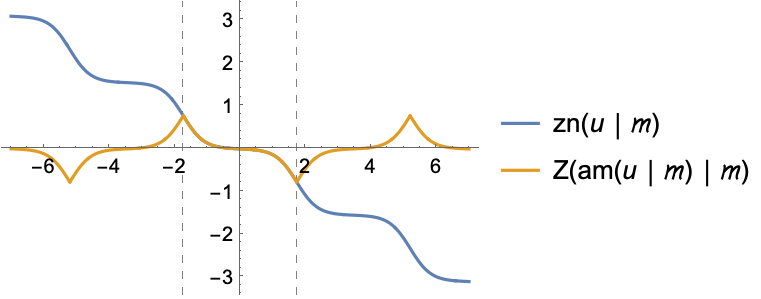

JacobiZN[u,m] is a meromorphic extension of TemplateBox[{TemplateBox[{u, m}, JacobiAmplitude], m}, JacobiZeta]:
