# QuartileDeviation

QuartileDeviation[data]

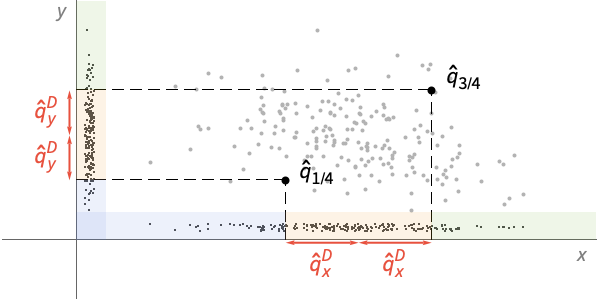

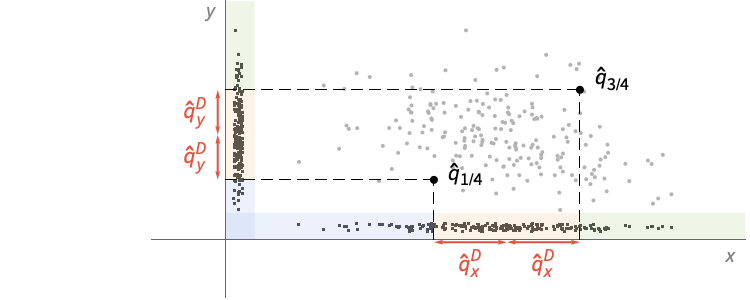

gives the quartile deviation or semi-interquartile range of the elements in data.

QuartileDeviation[data,{{a,b},{c,d}}]

uses the quantile definition specified by parameters a, b, c, d.

QuartileDeviation[dist]

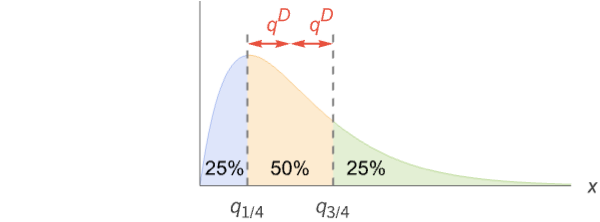

gives the quartile deviation or semi-interquartile range of the distribution dist.

# Details

• QuartileDeviation is a robust measure of dispersion, which means it is not very sensitive to outliers.
• QuartileDeviation[data] is given by , where is given by Quartiles[data].
• For matrix data, quartile deviation is computed for each column vector with QuartileDeviation[{{x1,y1,},{x2,y2,},}] equivalent to {QuartileDeviation[{x1,x2,}],QuartileDeviation[{y1,y2,}]}. »
• For array data, quartile deviation is equivalent to ArrayReduce[QuartileDeviation,data,1]. »
• Common choices of parameters {{a,b},{c,d}} include:
•  {{0,0},{1,0}} inverse empirical CDF (default) {{0,0},{0,1}} linear interpolation (California method) {{1/2,0},{0,0}} element numbered closest to p n {{1/2,0},{0,1}} linear interpolation (hydrologist method) {{0,1},{0,1}} mean‐based estimate (Weibull method) {{1,-1},{0,1}} mode‐based estimate {{1/3,1/3},{0,1}} median‐based estimate {{3/8,1/4},{0,1}} normal distribution estimate
• The default choice of parameters is {{0,0},{1,0}}.
• The data can have the following additional forms and interpretations:
•  Association the values (the keys are ignored) » SparseArray as an array, equivalent to Normal[data] » QuantityArray quantities as an array » WeightedData based on the underlying EmpiricalDistribution » EventData based on the underlying SurvivalDistribution » TimeSeries, TemporalData, … vector or array of values (the time stamps ignored) » Image,Image3D RGB channel's values or grayscale intensity value » Audio amplitude values of all channels »
• QuartileDeviation[dist] is given by InterquartileRange[dist]/2. »

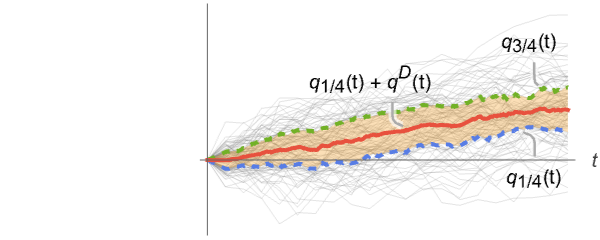

• For a random process proc, the quartile deviation function can be computed for slice distribution at time t, SliceDistribution[proc,t], as [t]=QuartileDeviation[SliceDistribution[proc,t]]. »

# Examples

open allclose all

## Basic Examples(2)

Quartile deviation for a list of exact numbers:

Quartile deviation of a parametric distribution:

## Scope(18)

### Basic Uses(8)

Exact input yields exact output:

Approximate input yields approximate output:

Compute results using other parametrizations:

Find the quartile deviation for WeightedData:

Find the quartile deviation for EventData:

Find the quartile deviation for TemporalData:

Find the quartile deviation for TimeSeries:

The quartile deviation depends only on the values:

Find the quartile deviation for data involving quantities:

### Array Data(5)

QuartileDeviation for a matrix gives columnwise ranges:

Quartile deviation for a tensor works across the first index:

Works with large arrays:

When the input is an Association, QuartileDeviation works on its values:

SparseArray data can be used just like dense arrays:

Find the quartile deviation of a QuantityArray:

### Image and Audio Data(2)

Channelwise quartile deviation value of an RGB image:

Quartile deviation intensity value of a grayscale image:

Quartile deviation amplitude of all amplitude values of all channels:

### Distributions and Processes(3)

Find the quartile deviation for a parametric distribution:

Quartile deviation for a derived distribution:

Data distribution:

Quartile deviation for a time slice of a random process:

## Applications(4)

Obtain a robust estimate of dispersion when extreme values are present:

Measures based on the Mean are heavily influenced by extreme values:

Identify periods of high volatility in stock data using a five-year moving quartile deviation:

Compute QuartileDeviation for slices of a collection of paths of a random process:

Choose a few slice times:

Plot of the quartile deviations for the selected times:

Find the quartile deviation of the heights for the children in a class:

Plot the quartile deviation respective of the median:

## Properties & Relations(3)

QuartileDeviation is half the difference of linearly interpolated Quantile values:

InterquartileRange is twice QuartileDeviation:

Also true for a distribution:

QuartileDeviation is half the difference between the first and third quartiles:

## Possible Issues(2)

QuartileDeviation requires numeric values in data:

The symbolic closed form may exist for some distributions:

QuartileDeviation is not the difference between the median and the first or the third quantiles:

The difference between the third and the first quantiles is given by InterquartileRange:

## Neat Examples(1)

The distribution of QuartileDeviation estimates for 20, 100 and 300 samples:
