SolidDisplacementCondition
✖
SolidDisplacementCondition
represents a prescribed displacement on a solid boundary for PDEs with predicate pred indicating where it applies, with model variables vars and global parameters pars.
represents a prescribed displacement with local parameters specified in pars[lkey].
Details
- SolidDisplacementCondition specifies a boundary condition for SolidMechanicsPDEComponent.
- SolidDisplacementCondition is typically used to prescribe the displacement of a boundary of a solid. Common examples include a beam that has a face displaced from its original position.
- SolidDisplacementCondition constrains the movement of a solid with dependent variables
,
and
, independent variables
and time variable
. - Stationary variables vars are vars={{u[x1,…,xn],v[x1,…,xn],…},{x1,…,xn}}.
- Time-dependent variables vars are vars={{u[t,x1,…,xn],v[t,x1,…,xn],…},t,{x1,…,xn}}.
- Frequency-dependent variables vars are vars={{u[x1,…,xn],v[x1,…,xn],…},ω,{x1,…,xn}}.
- Model parameters pars are specified as for SolidMechanicsPDEComponent.
- SolidDisplacementCondition implements constraints
,
and
with
the prescribed displacement. - The following model parameters pars can be given:
-
parameter default symbol "Displacement" {0,0,0}
- To leave direction
unconstrained, None can be specified for that displacement. - The default behavior of SolidDisplacementCondition is a SolidFixedCondition.
- The fixed constraint SolidDisplacementCondition models
,
and
. - A prescribed displacement condition boundary can be used with:
-
analysis type applicable Transient Yes Frequency Response Yes Eigenfrequency No Stationary Yes - SolidDisplacementCondition can only be used with an eigenfrequency analysis if the prescribed component is 0 or None.
- SolidDisplacementCondition evaluates to a DirichletCondition.
- The boundary predicate pred can be specified as in DirichletCondition.
Examples
open allclose allBasic Examples (1)Summary of the most common use cases
Set up variables, parameters and a beam of 1 meter length and 1/10 meter height and width:
https://wolfram.com/xid/0cf09f6zs5gic66-kz5sps
The beam is held fixed at the left. Prescribe 0 displacement in the
and
directions and a displacement of 1/10 meter in the negative
direction:
https://wolfram.com/xid/0cf09f6zs5gic66-uapf49

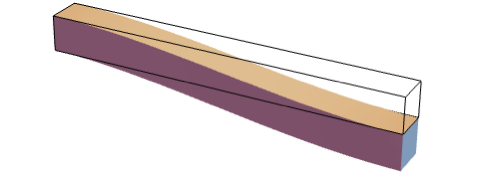

Visualize the deformed beam in blue and note that at the right end the prescribed displacement relative to the original beam is satisfied:
https://wolfram.com/xid/0cf09f6zs5gic66-9sbsb1
Prescribe a displacement of 1/10 meter in the negative
direction and keep the other directions unconstrained:
https://wolfram.com/xid/0cf09f6zs5gic66-q4hx3x
Visualize the deformed beam in blue and note that at the right end the prescribed displacement relative to the original beam is satisfied:
https://wolfram.com/xid/0cf09f6zs5gic66-k0fpla
Scope (2)Survey of the scope of standard use cases
Properties & Relations (2)Properties of the function, and connections to other functions
SolidDisplacementCondition evaluates to DirichletCondition:
https://wolfram.com/xid/0cf09f6zs5gic66-imq21b
SolidFixedCondition is a special case of SolidDisplacementCondition. Set up variables and parameters:
https://wolfram.com/xid/0cf09f6zs5gic66-5lnp40
https://wolfram.com/xid/0cf09f6zs5gic66-dccqa6
This is the same as a displacement condition with 0 displacement:
https://wolfram.com/xid/0cf09f6zs5gic66-jqc8sl
