SolidMechanicsStrain

SolidMechanicsStrain[vars,pars,displ]

yields a solid mechanics total strain with variables vars, parameters pars and displacements displ.

Details

  • SolidMechanicsStrain returns the mechanical total strain from a given displacement with dependent variables of displacement , and in units of , independent variables in and time variable in units of .

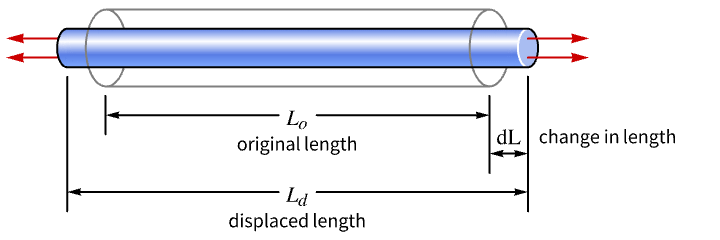

  • Normal strain where is the change in length and the original length.
  • Strains are unitless.
  • SolidMechanicsStrain uses the same variables vars specification as SolidMechanicsPDEComponent.
  • SolidMechanicsStrain uses the same parameter pars specification as SolidMechanicsPDEComponent.
  • Typically the displacement displ is the result of solving a partial differential equation generated with SolidMechanicsPDEComponent.
  • For each dependent variable , and given as dependent variable vector in vars, a displacement displ needs to be specified.
  • SolidMechanicsStrain returns a SymmetrizedArray of engineering strains of the form:
  • The represent the normal strain and represent the shear strains.
  • SolidMechanicsStrain returns the total strain :
  • The default elastic strain measure is based on an infinitesimal strain tensor model and assumes small displacements and small rotations.
  • The shear strains used are engineering shear strains related to the tensorial strain by .
  • SolidMechanicsStrain returns total strains including inelastic strains such as initial or thermal strains.
  • SolidMechanicsStress computes stress from SolidMechanicsStrain.

Examples

open allclose all

Basic Examples  (1)

Compute strain from a displacement:

Visualize the strain:

Scope  (6)

Compute the strain from the displacement:

Inspect the engineering strain:

Compute the strain tensor:

Verify the relation between the engineering strain and the strain tensor:

The default usage of engineering strain in the linear elastic regime can be turned off:

Stationary Analysis  (1)

Compute the deflection of a spoon held fixed at the end and with a force applied at the top. Set up variables and parameters:

Set up the PDE and the geometry:

Compute the strain from the displacement:

Visualize the strain:

Stationary Plane Stress Analysis  (2)

Compute the displacement of a rectangular steel plate held fixed at the bottom and with pressures applied at the remaining sides. Set up the region, variables and parameters:

Solve the equations:

Visualize the displacement:

Compute the strain:

Verify that the normal strain in the direction is about 0:

Verify that the normal strain in the direction is about 0:

Find the shear strain:

Compute a plane stress case as an extended model. This allows for the computation of the out-of-plane strain and verifies that the out-of-plane stress is 0. A rectangular steel plate is held fixed at the left and with a forced displacement on the right. Set up the region, variables and parameters. The variables now include all three directions:

Solve the equations with three semi-dependent variables:

Note that now there are three output variables in the list of displacements. Visualize the displacement for the main variables:

Compute the strain:

Note that the strain is a 3×3 array. Visualize the out-of-plane strain:

Compute the stress from the strain:

Note that the stress is a 3×3 array. Verify the plane stress condition:

Stationary Plane Strain Analysis  (1)

Compute a plane strain case as an extended model. This allows for the computation of the out-of-plane stress and verifies that the out-of-plane strain is 0. Set up the region, variables and parameters. The variables now include all three directions:

Set up the solid mechanics PDE component:

Set up the PDEs:

Solve the PDE:

Compute the strains from the displacements:

Note that the strain is a 3×3 array. Verify the plane strain condition:

Compute the stress from the strain:

Note that the stress is a 3×3 array. Visualize the out-of-plane stress:

Stationary Hyperelastic Plane Stress Analysis  (1)

Compute the displacement of a rectangular rubber plate held fixed at the left and with force applied at the right-hand side. Set up the region, variables and parameters:

Solve the equations:

Visualize the displacement:

Compute the strain from the displacement:

Visualize the strain:

Possible Issues  (1)

By default, the solid mechanics framework uses engineering strains for the linear elastic regime. This can be switched off.

Set up a helper function with a solid mechanics PDE model:

Create variables and parameters:

Solve the solid mechanics model with engineering strains:

Solve the solid mechanics model with engineering strains off:

Verify at a specific point that the shear strains of the engineering formulation relate to the normal strain formulation by a factor of 2:
