DerivativeFilter

DerivativeFilter[data,{n1,n2,…}]

computes the ni^(th) derivative of data at level i.

DerivativeFilter[data,{n1,n2,…},σ]

computes the derivative at a Gaussian scale of standard deviation σ.

DerivativeFilter[data,{der1,der2,…},…]

computes several derivatives der1, der2, ….

Details and Options

  • DerivativeFilter is a linear filter that computes the derivatives of data based on a spline interpolation model. Regularization with a Gaussian kernel of standard deviation σ (defaults to 0) can be used to reduce susceptibility to noise.
  • The data can be any of the following:
  • listarbitrary-rank numerical array
    tseriestemporal data such as TimeSeries, TemporalData, …
    imagearbitrary Image or Image3D object
    audioan Audio object
  • DerivativeFilter operates separately on each level of data.
  • DerivativeFilter[image,…] uses the array coordinate system, where the first coordinate runs from the top to the bottom of image, and the second coordinate increases from left to right.
  • DerivativeFilter gives a result with the same dimensions as data.
  • DerivativeFilter can take the following options:
  • InterpolationOrder Automaticinterpolation order up to 9
    Padding "Fixed"padding method
  • With Padding->{pad1,pad2,…}, different padding schemes can be used for every dimension of data.
  • The derivative order has to be smaller than the specified interpolation order.

Examples

open allclose all

Basic Examples  (3)

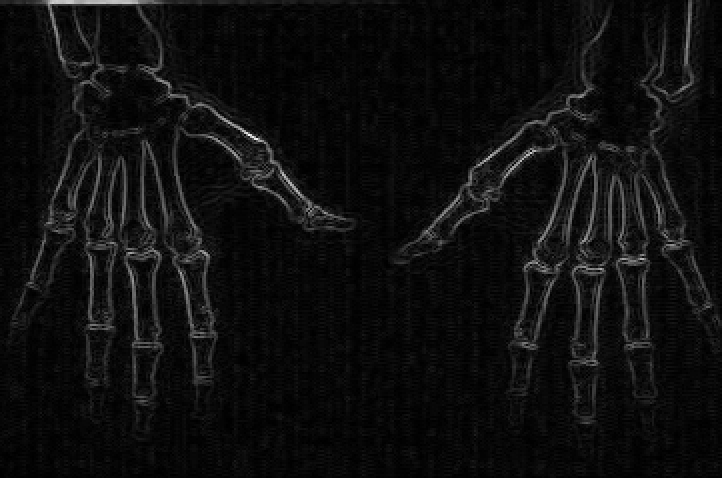

A horizontal derivative of an image:

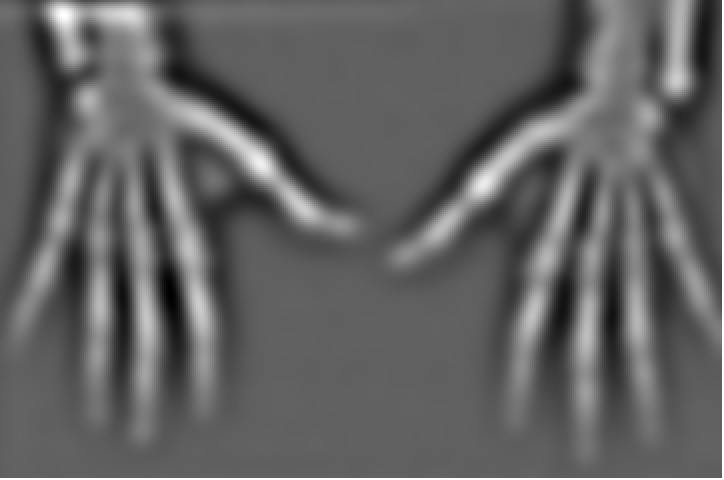

A regularized horizontal derivative of an image:

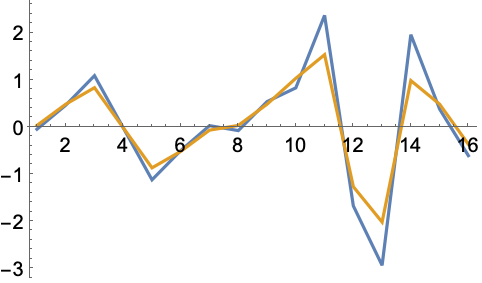

Derivative of a numeric list:

Scope  (13)

Data  (5)

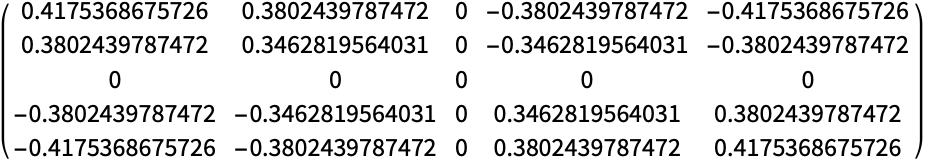

First-order derivatives of a 2D array:

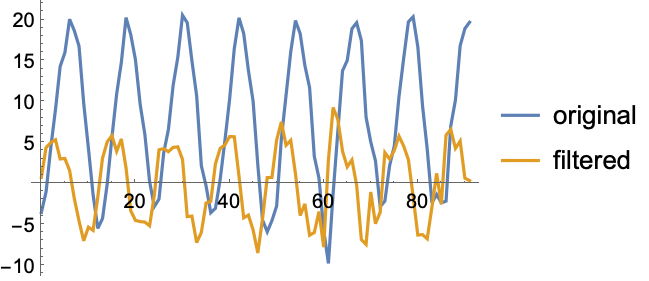

Obtain the first derivative of a TimeSeries object:

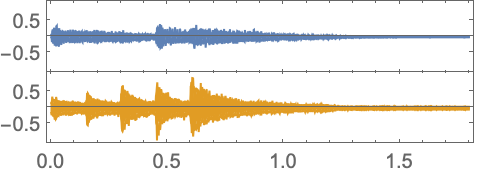

Filter an Audio signal:

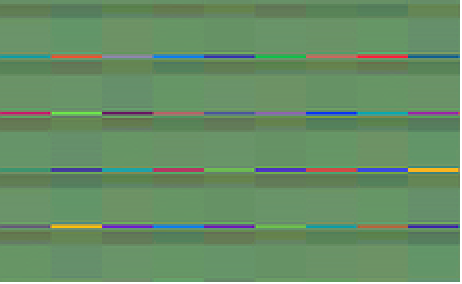

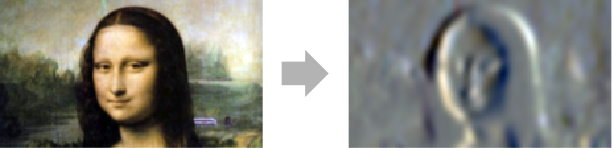

Vertical derivative of a color image:

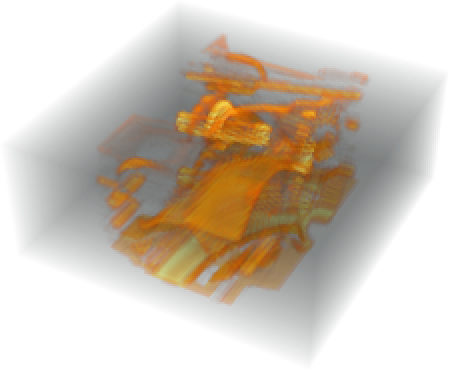

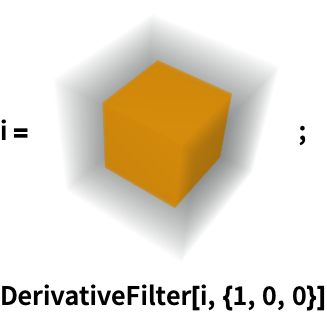

Vertical derivative of a 3D image:

Parameters  (8)

Zeroth derivative of a list:

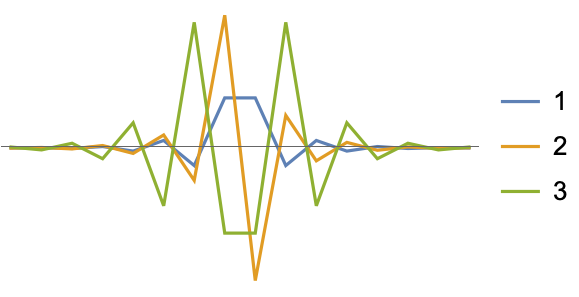

First, second and third derivatives of a step sequence:

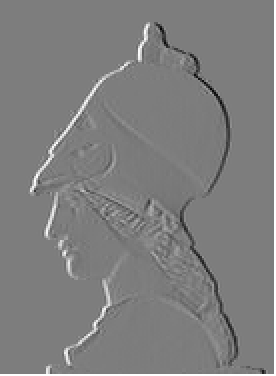

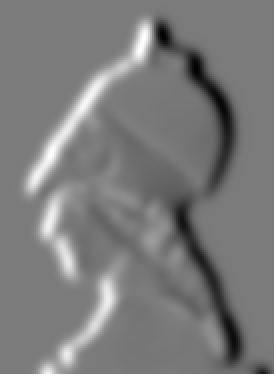

Vertical derivative of an image:

Horizontal derivative:

Second-order derivative in both dimensions:

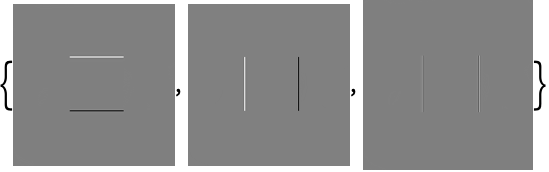

Compute several derivatives of an image:

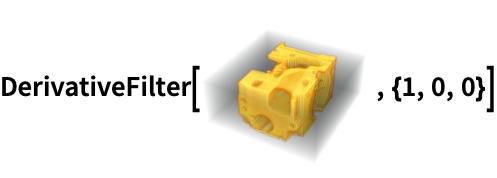

Vertical derivative of a 3D image:

Horizontal derivatives only:

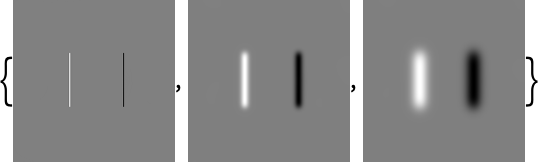

Regularize the derivative using Gaussian smoothing:

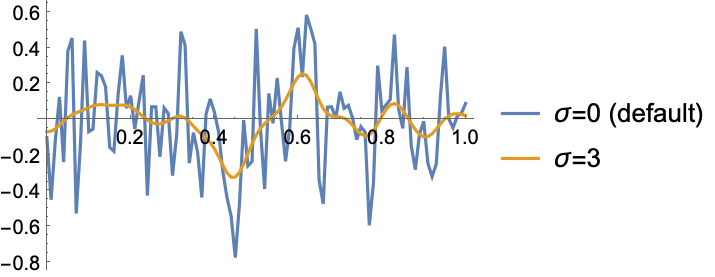

Horizontal derivative at different Gaussian scales:

Options  (3)

InterpolationOrder  (1)

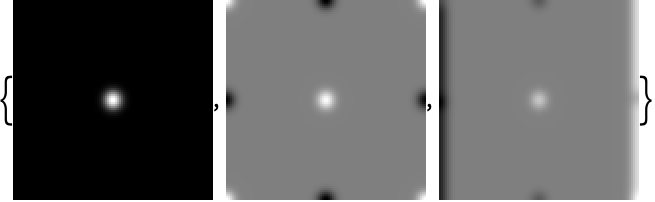

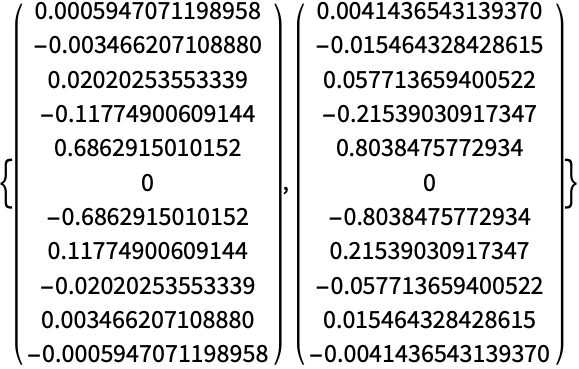

Filtering an array using different InterpolationOrder values:

Padding  (2)

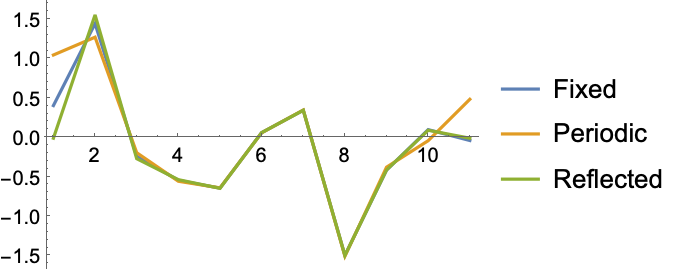

Derivative filtering using different padding schemes:

First derivatives of a grayscale image using different padding schemes:

Use different padding schemes in each spatial direction:

Applications  (5)

Compute the image gradient:

Compute the Laplacian of an image at scale σ=6:

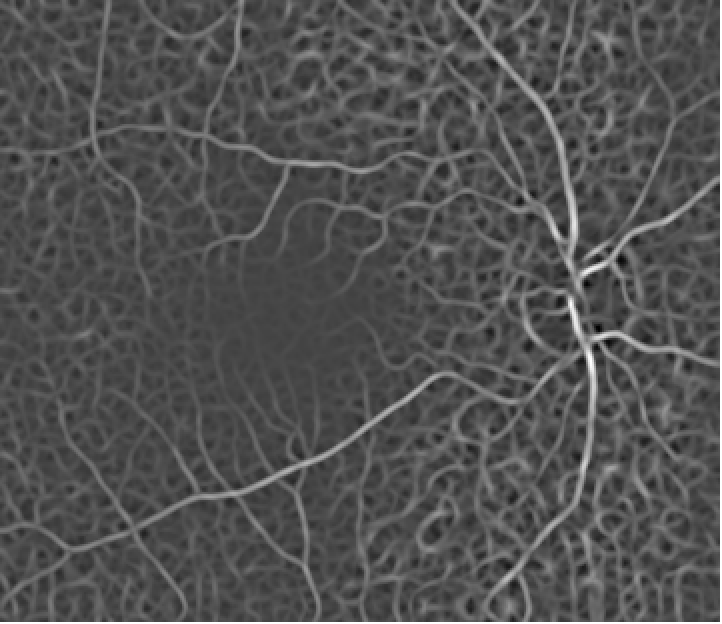

Ridge detection at scale σ=2:

T-junction filter:

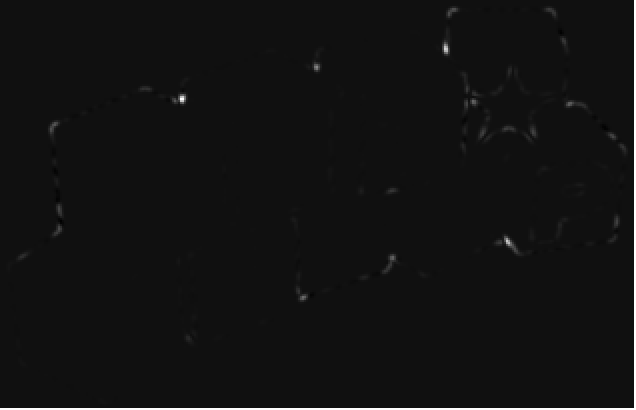

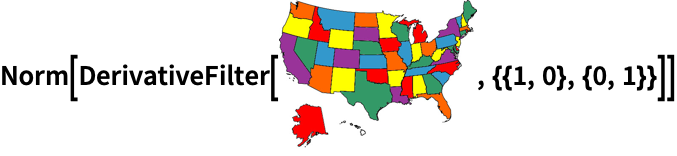

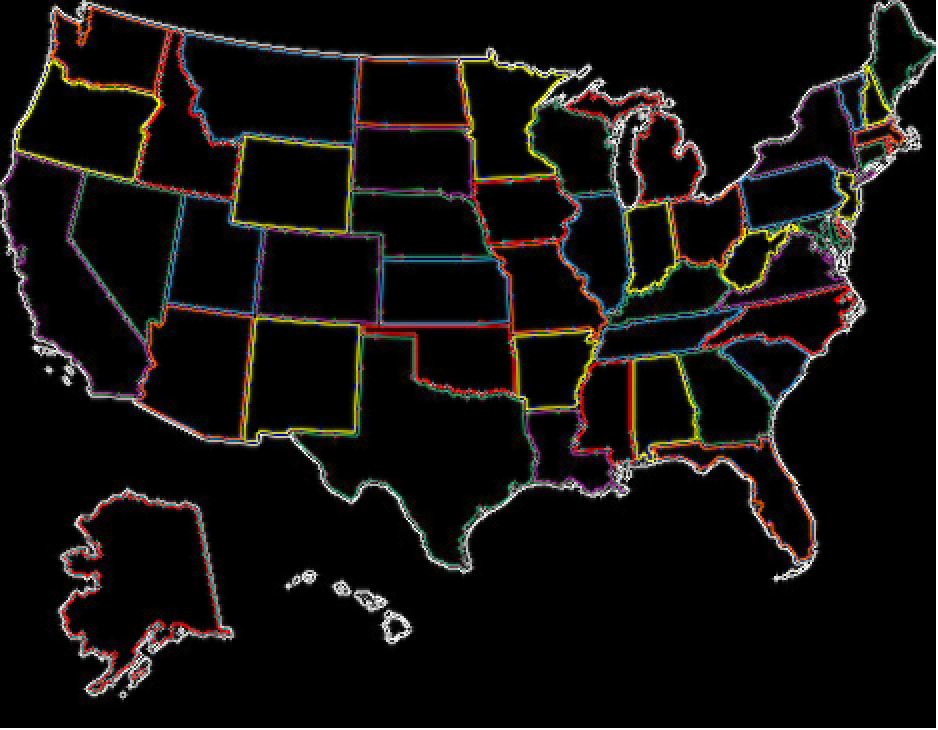

Get borders from a colored map:

Properties & Relations  (4)

For larger values of , the results of GaussianFilter and DerivativeFilter converge:

DerivativeFilter and the corresponding derivatives of a spline interpolation return the same values:

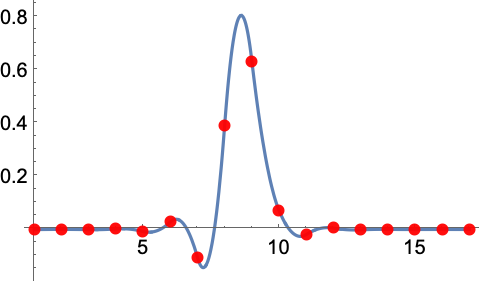

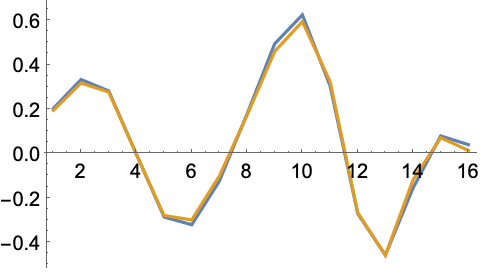

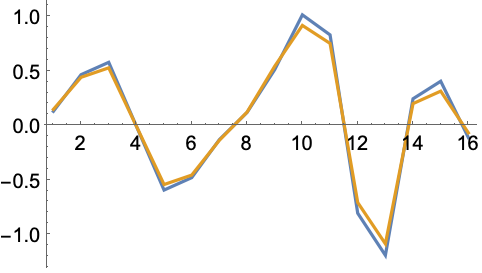

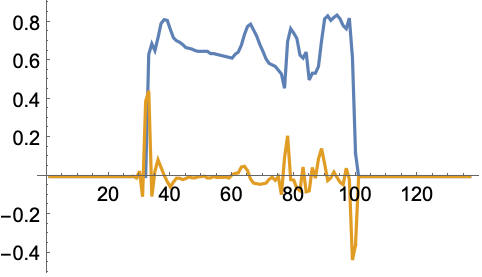

Plot the result of the filter on top of the derivative of the interpolating function:

Derivative filtering of a binary image gives a grayscale image of a real type:

DerivativeFilter is a linear filter:
