ImageForwardTransformation

ImageForwardTransformation[image,f]

gives an image in which each pixel at position f[{x,y}] corresponds to the position {x,y} in image.

ImageForwardTransformation[image,f,size]

gives an image of the specified size.

ImageForwardTransformation[video,…]

transforms frames of a video.

Details and Options

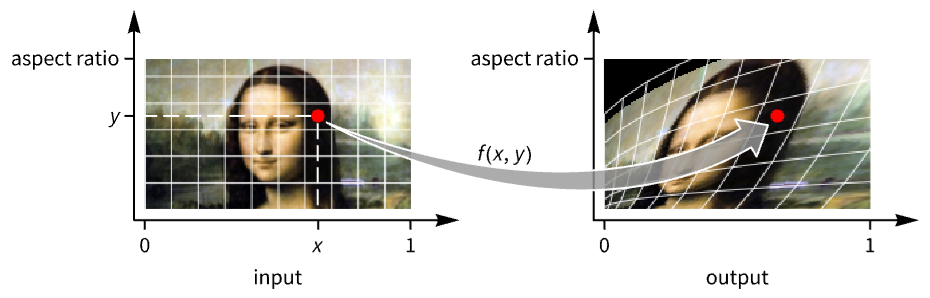

  • ImageForwardTransformation[image, f], also known as forward transformation, transforms every pixel at position {x,y} in image to position f[{x,y}] in the output image.
  • ImageForwardTransformation[image,f] gives an image of the same size as the original.
  • ImageForwardTransformation works with arbitrary 2D images.
  • The pixel positions in the original image are assumed to run from 0 to 1 in the horizontal direction and from 0 to the aspect ratio in the vertical direction.
  • Possible settings for size are:
  • Automaticautomatic image size
    Allsame as input image size
    widthexplicit width, automatic height
    {width,height}explicit width and height
    {width,depth,height}explicit width, depth and height in 3D
  • For possible width, depth and height specifications, see the reference page for ImageResize.
  • For possible size specifications, see the reference page for ImageResize.
  • ImageForwardTransformation can take the following options:
  • Background Blackbackground value
    DataRange Automaticassumed range of and values in the original image
    Method Automaticinterpolation method to use
    PlotRange Automaticrange of coordinates to be included in the result of the transformation
  • Typical settings for DataRange include:
  • Automatic{{0,1},{0,h/w}} in 2D, {{0,1},{0,d/w},{0,h/w}} in 3D
    Full{{0,w},{0,h}} in 2D, {{0,1},{0,d},{0,h}} in 3D
    {{left,right},{bottom,top}}explicit coordinate ranges in 2D
    {{left,right},{front,back},{bottom,top}}explicit coordinate ranges in 3D
  • The coordinate system of the resulting image is specified by the PlotRange option. Typical settings include:
  • Automaticsame as DataRange settings
    Alltry to include all of the transformed pixels
    Fullsame ranges as the input image
    {{left,right},…}explicit coordinate ranges
  • When PlotRange is not Automatic, size is chosen based on the size of the original image and the ratio of PlotRange and DataRange.
  • By default, transformed points are interpolated using Method->"Interpolated". Use MethodNone to avoid interpolation.

Examples

open allclose all

Basic Examples  (1)

Applying a forward transformation on an image:

Scope  (8)

Data  (3)

Transform a grayscale image:

Transform a color image:

Transform frames of a video:

Transformation  (4)

Use any function for the transformation:

Operate explicitly on and pixel positions:

Operate on the vertical dimension only:

Perform a matrix transformation:

Use a geometric transform function:

Rotate image around its center using rotation transform:

Size  (1)

By default, the output image is of the same size as the input image:

Specify the size of the resulting image:

Specify width and height explicitly:

Use a scaled value:

Use a named size:

Use All to obtain an image of the same size as the original:

Options  (4)

Background  (1)

By default, a black background is used:

Use a specific color for the background:

Use a transparent background:

DataRange  (1)

By default, DataRange->Automatic is used:

Use DataRange->Full when defining translation in pixel coordinates:

Specify a custom DataRange:

Choose a data range symmetric on the axis to show a vertical reflection:

Adjust the plot range to include all image pixels:

Method  (1)

By default, transformed points are interpolated to fill the potential gaps in the resulting image:

Use Method->None to avoid interpolation:

PlotRange  (1)

By default, the output image retains the plot range of the input image:

Use PlotRange->All to view all transformed image pixels:

Use explicit plot range values:

Use pixel coordinates with PlotRangeFull option:

Applications  (3)

Reverse an unknown geometric transformation by determining the transformation function from a pair of images:

Apply the transformation to the transformed image:

Make a photo mosaic:

Smudge effect:

Properties & Relations  (3)

Magnify an image:

ImageTransformation does the opposite:

Reversing pixel coordinates is an operation that gives the same result for forward and reverse transforms:

Doing a transformation with a function and its inverse gives back the original image with some blurring due to interpolation:

Neat Examples  (3)

Fisheye effect:

Melting effect:

Mirror facets effect:
