ImageAlign
✖
ImageAlign

✖
ImageAlign[ref,image]

returns a version of image that is aligned with the reference image ref.

✖
ImageAlign[ref,{image1,…,imagen}]

gives the result of aligning each of the imagei with the reference image ref.

✖
ImageAlign[{image1,…,imagen}]

uses image1 as the reference image.

Details and Options

  • ImageAlign[image1,image2] finds a transformation of image2 that registers it with image1 and returns the result of applying this transformation to image2.
  • ImageAlign works with arbitrary 2D and 3D images.
  • Resulting images have the same dimensions as the reference image.
  • Use FindGeometricTransform to compute the geometric transformation used for alignments.
  • The following options can be specified:
  • Background Automaticbackground value
    Method Automaticalignment method to use
    TransformationClass Automaticgeometrical relation between images
  • Possible settings for the Method option are:
  • Automaticautomatically choose a suitable method
    "Keypoints"use corresponding keypoints
    {"Keypoints",method}use an ImageCorrespondingPoints method
    "MeanSquareGradientDescent"minimize the mean square distance of corresponding pixels
    "Fourier"Fourier-based registration
    "FourierBlurInvariant"blur invariant Fourier-based registration
  • With the default setting TransformationClass->Automatic, ImageAlign attempts to find the simplest possible transformation.

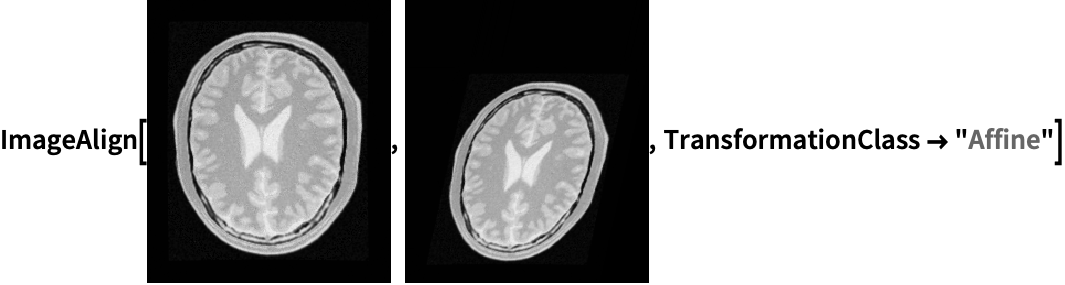

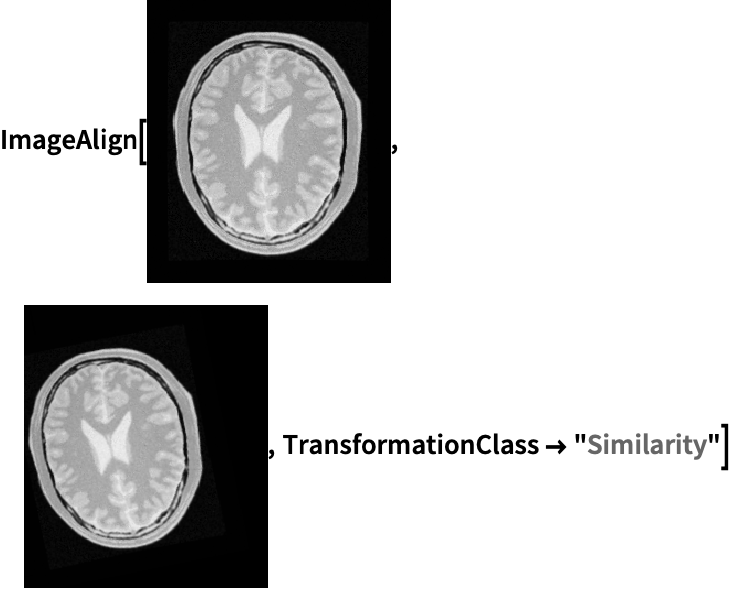

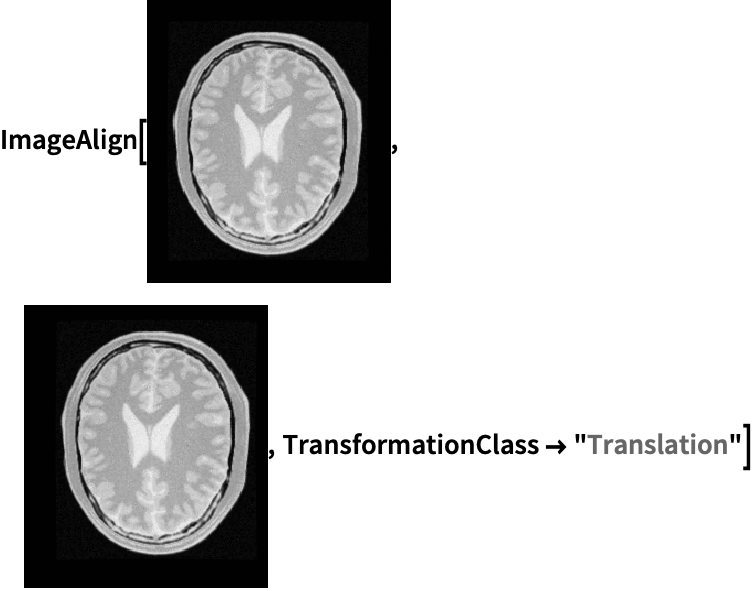

  • Possible transformations in order of increasing complexity are:
  • "Translation"translation only
    "Rigid"translation and rotation
    "Similarity"translation, rotation, and scaling
    "Affine"linear transformation and translation
    "Perspective"linear fractional transformation

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

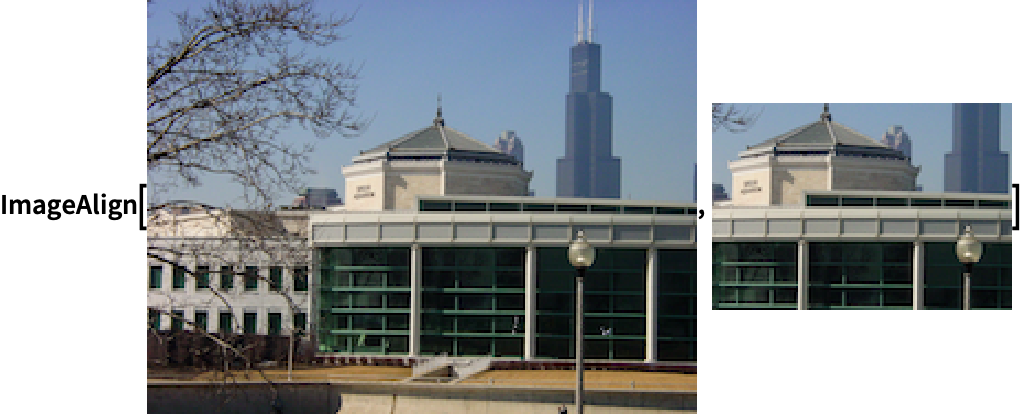

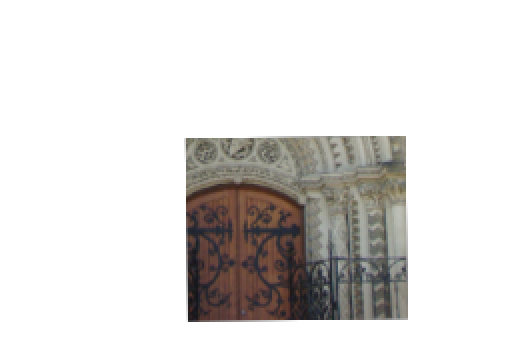

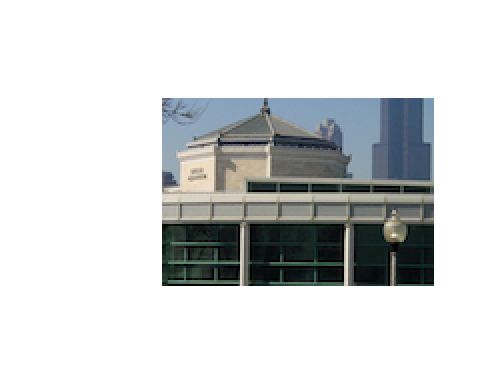

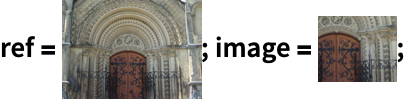

Align a part of an image with the full image:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-z3ymaz
Out[1]=1

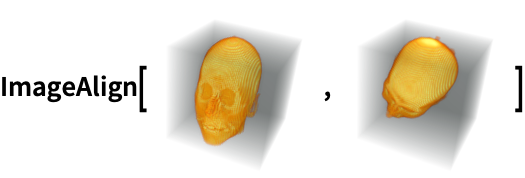

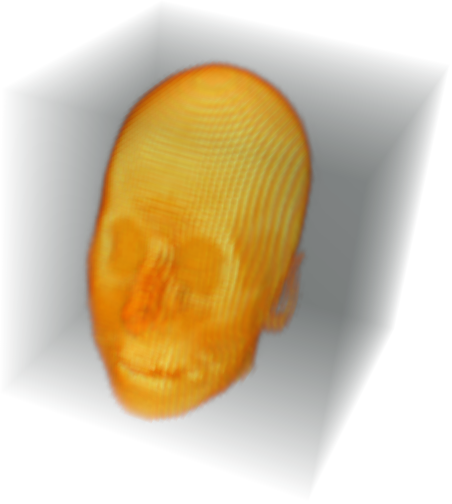

Align two 3D volumes:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-misfot
Out[1]=1

Scope  (2)Survey of the scope of standard use cases

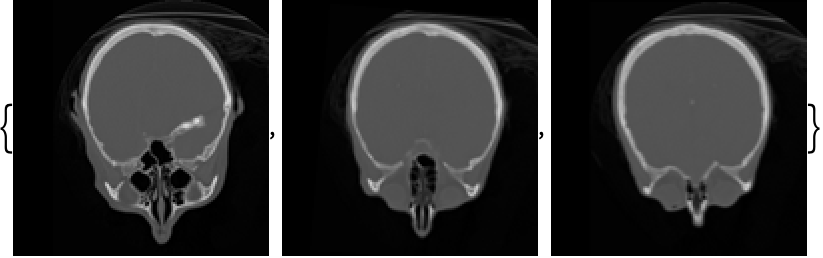

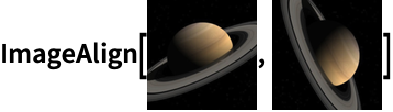

Align a list of three images to a reference image:

In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-rfeddb
Out[2]=2

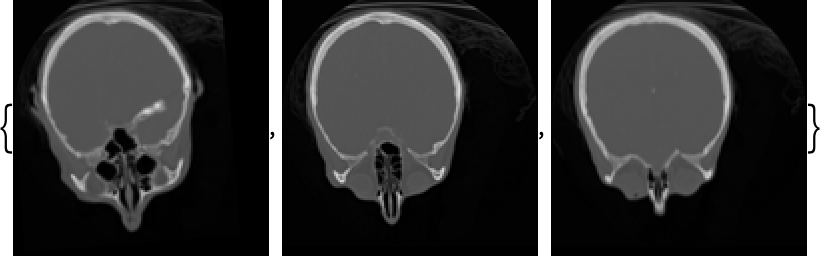

Align a list of three images, using the first image as the reference:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-wlldk4
Out[1]=1

Three images are returned:

In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-82hrp2
Out[2]=2

Options  (11)Common values & functionality for each option

Background  (1)

By default, a transparent background is used:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-nvpnmo
Out[1]=1

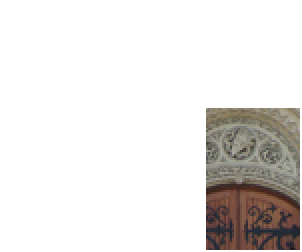

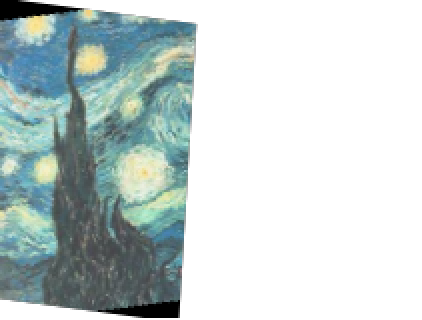

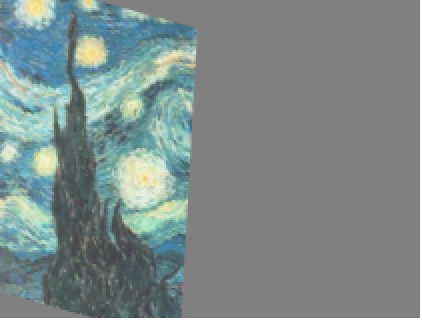

Specify a different background color:

In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-ew0y7k
Out[2]=2

Method  (5)

By default, ImageAlign uses an automatic combination of methods and initializations:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-fsm0e
Out[1]=1

The "Keypoints" method works well with natural 2D photos:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-c66q0o
In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-jbgwtf
Out[2]=2

Use "KAZE" keypoints:

In[3]:=3
✖
https://wolfram.com/xid/0enzd2xpm-sz539y
Out[3]=3

Use all keypoints detected by multiple methods:

In[4]:=4
✖
https://wolfram.com/xid/0enzd2xpm-11mhtc
Out[4]=4

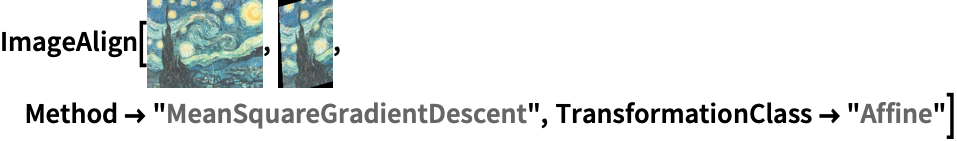

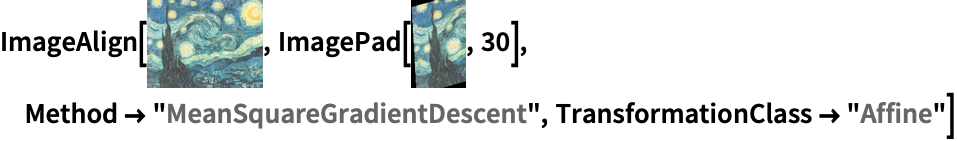

The "MeanSquareGradientDescent" method uses dense distances between images:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-skf6dp
Out[1]=1

This method typically needs a large initial overlap between images:

In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-bzow31
Out[2]=2

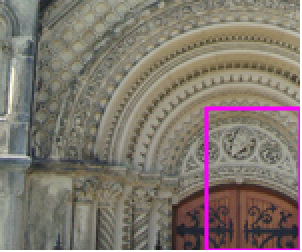

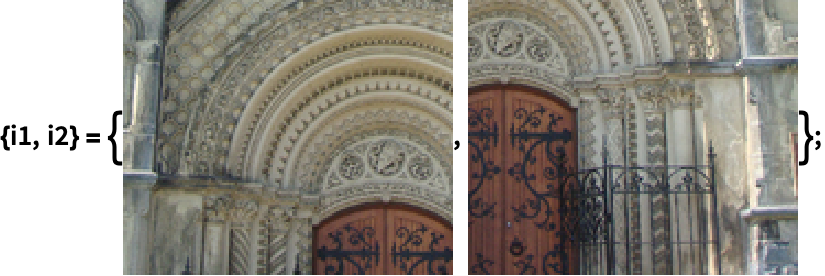

The "Fourier" method can align images even with a small overlap:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-e5mu21
In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-qmewqx
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0enzd2xpm-mvfdaj
Out[3]=3

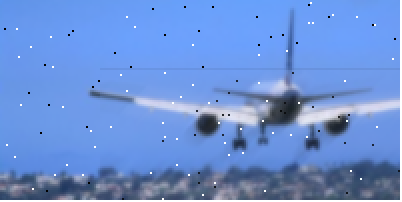

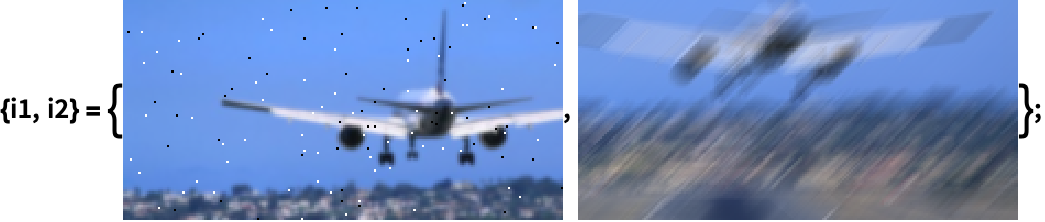

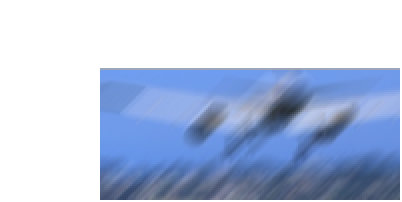

Use the "FourierBlurInvariant" method in the presence of noise and motion blur:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-xwlt7k
In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-tx3zii
Out[2]=2
In[3]:=3
✖
https://wolfram.com/xid/0enzd2xpm-ejdcez
Out[3]=3

TransformationClass  (5)

Restrict the transformation to only translation:

In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-ep3lv6
Out[2]=2

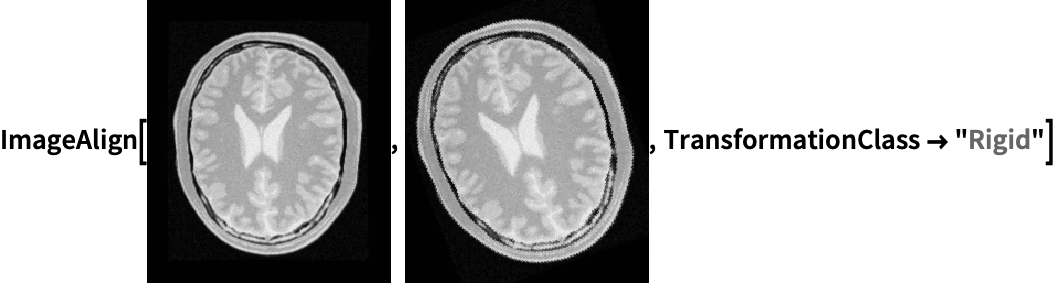

"Rigid" transformation allows for rotations in addition to translations:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-qtlqce
Out[1]=1

"Similarity" transforms allow for translation, rotation, and scaling:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-r220px
Out[1]=1

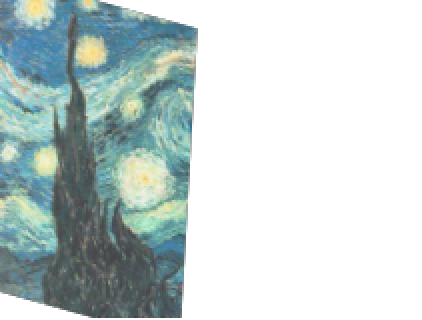

Allow any affine transformation:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-m6qev
Out[1]=1

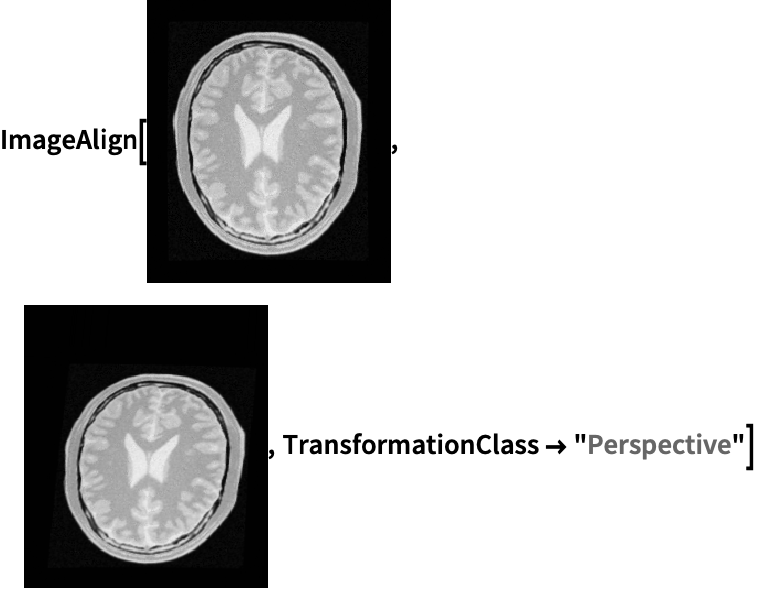

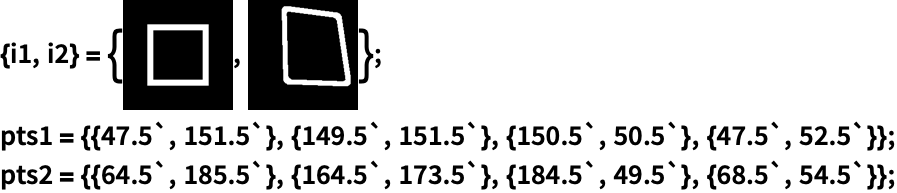

Perspective transformation:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-fpmf4e
Out[1]=1

Applications  (4)Sample problems that can be solved with this function

Align an image with its mirror image:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-ldb13y
Out[1]=1

Overlay the aligned images:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-y2icvj
In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-n6yrlc
Out[2]=2

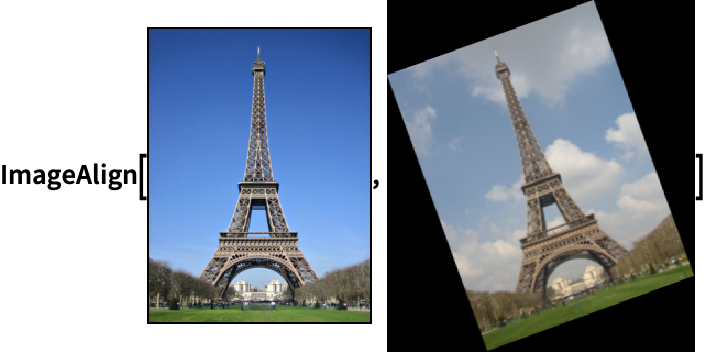

Align two different images of the same object:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-c8rukx
Out[1]=1

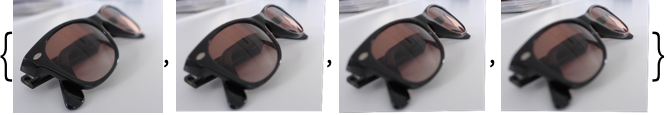

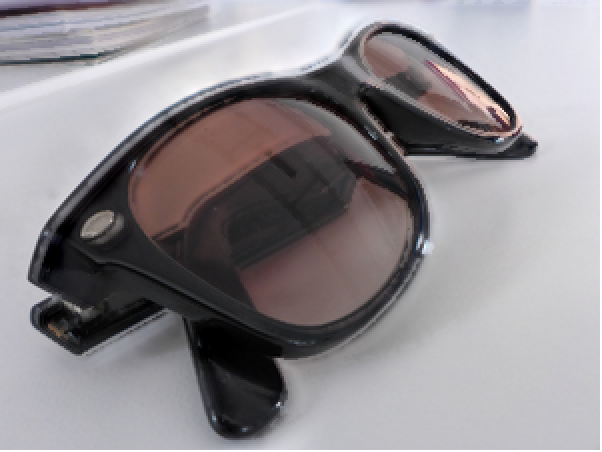

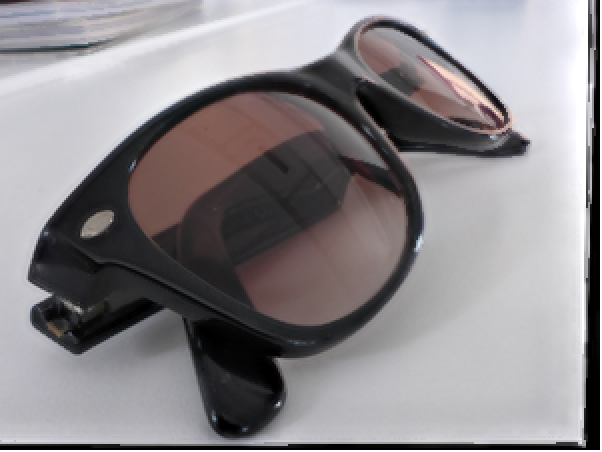

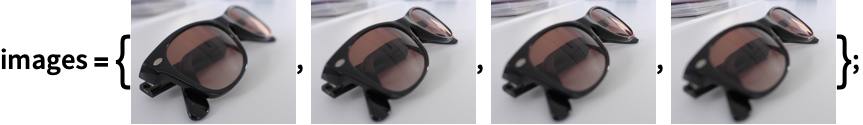

Align images before performing focus stacking:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-qvdolq
In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-obr97t
Out[2]=2

Perform focus stacking:

In[3]:=3
✖
https://wolfram.com/xid/0enzd2xpm-85kl62
Out[3]=3

Compare with the stacking without alignment:

In[4]:=4
✖
https://wolfram.com/xid/0enzd2xpm-y83vom
Out[4]=4

Properties & Relations  (2)Properties of the function, and connections to other functions

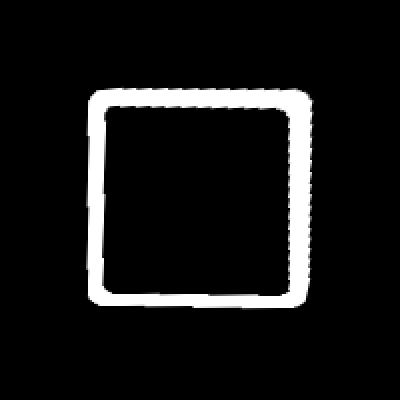

For aligning images using a specific set of corresponding points, use FindGeometricTransform:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-rnltof
In[3]:=3
✖
https://wolfram.com/xid/0enzd2xpm-hs3u7g
Out[3]=3

Transform the image with ImagePerspectiveTransformation:

In[4]:=4
✖
https://wolfram.com/xid/0enzd2xpm-evg88m
Out[4]=4

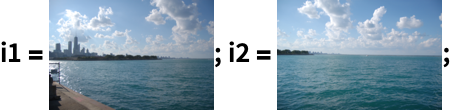

Use FindGeometricTransform to find the geometric transformation that aligns images:

In[1]:=1
✖
https://wolfram.com/xid/0enzd2xpm-wy0w9v
In[2]:=2
✖
https://wolfram.com/xid/0enzd2xpm-gepm7n
Out[2]=2

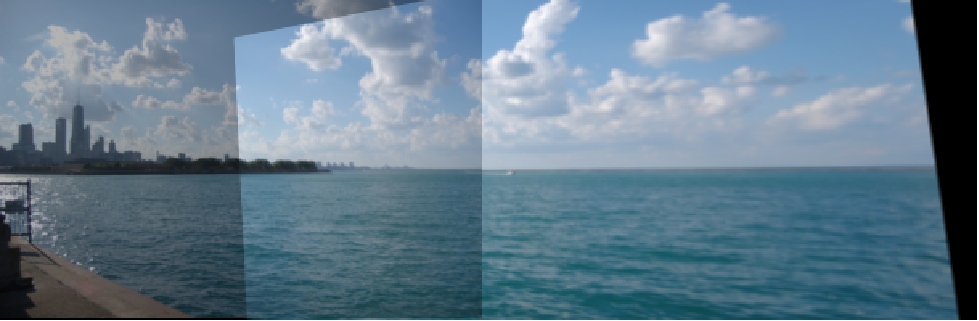

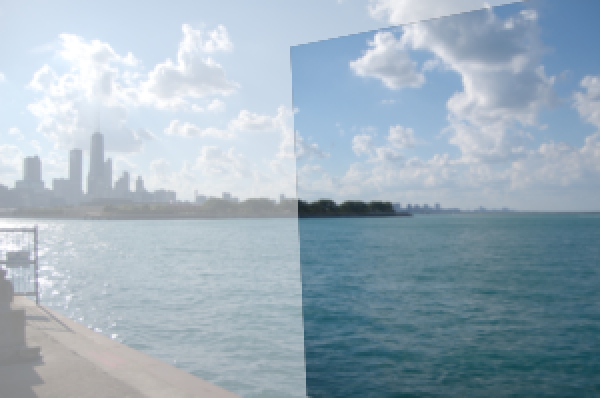

Stitch images together by transforming one and composing on top of the other one:

In[3]:=3
✖
https://wolfram.com/xid/0enzd2xpm-jsa2w0
Out[3]=3
