ParametricNDSolveValue

ParametricNDSolveValue[eqns,expr,{x,xmin,xmax},pars]

gives the value of expr with functions determined by a numerical solution to the ordinary differential equations eqns with the independent variable x in the range xmin to xmax with parameters pars.

ParametricNDSolveValue[eqns,expr,{x,xmin,xmax},{y,ymin,ymax},pars]

solves the partial differential equations eqns over a rectangular region.

ParametricNDSolveValue[eqns,expr,{x,y}∈Ω,pars]

solves the partial differential equations eqns over the region Ω.

ParametricNDSolveValue[eqns,expr,{t,tmin,tmax},{x,y}∈Ω,pars]

solves the time-dependent partial differential equations eqns over the region Ω.

Details and Options

  • ParametricNDSolveValue gives results in terms of ParametricFunction objects.
  • A specification for the parameters pars of {pspec1,pspec2,…} can be used to specify ranges.
  • Possible forms for pspeci are:
  • pp has range Reals or Complexes
    Element[p,Reals]p has range Reals
    Element[p,Complexes]p has range Complexes
    Element[p,{v1,…}]p has discrete range {v1,…}
    {p,pmin,pmax}p has range
  • Typically expr will depend on the parameters indirectly, through the solution of the differential equations, but may depend explicitly on the parameters.
  • Derivatives of the resulting ParametricFunction object with respect to the parameters are computed using a combination of symbolic and numerical sensitivity methods when possible.
  • ParametricNDSolveValue takes the same options and settings as NDSolve.
  • NDSolve and ParametricNDSolveValue typically solve differential equations by going through several different stages, depending on the type of equations. With Method->{s1->m1,s2->m2,…}, stage si is handled by method mi. The actual stages used and their order are determined by NDSolve, based on the problem to be solved.
  • Possible solution stages are the same as for NDSolve, with the addition of:
  • "ParametricCaching"caching of computed solutions
    "ParametricSensitivity"computation of derivatives with respect to parameters

    • List of all options

Examples

open allclose all

Basic Examples  (3)

Get a parametric function of the parameter a for the value of y:

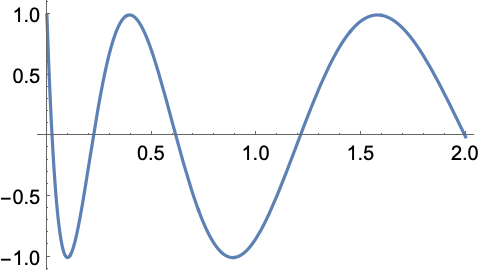

Evaluating with a numerical value of a gives an approximate function solution for y:

Get the value at :

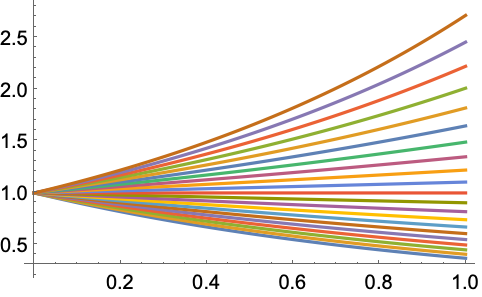

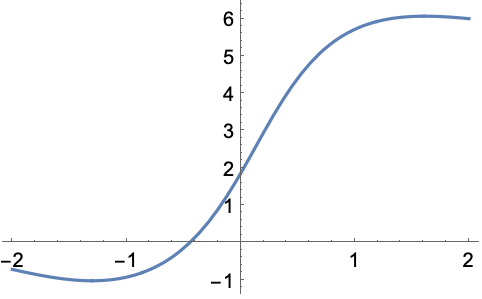

Plot the solutions for several different values of the parameter:

Get a function of the parameter a that gives the value of the function f at :

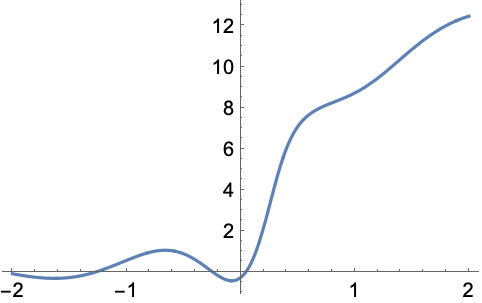

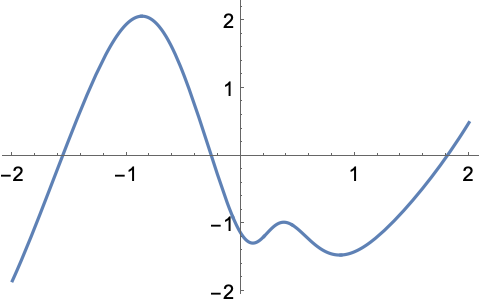

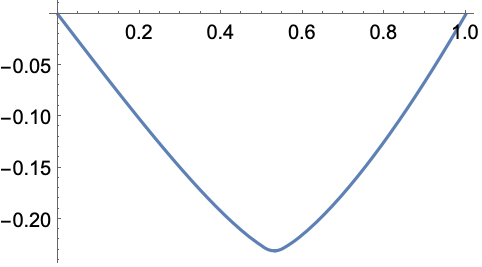

This plots the value as a function of the parameter a:

Use the function with FindRoot to find a root:

Show the sensitivity of the solution of a differential equation to parameters:

The sensitivity with respect to a increases with t:

The sensitivity with respect to b does not increase with t:

Scope  (6)

Parameter Dependence  (4)

ParametricNDSolveValue returns a ParametricFunction object:

Get the solution for :

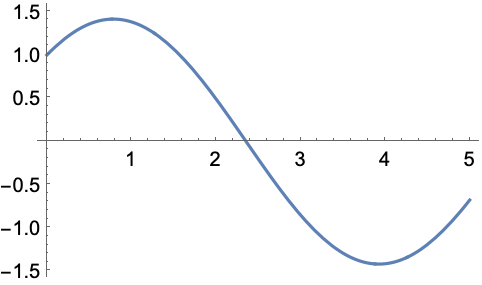

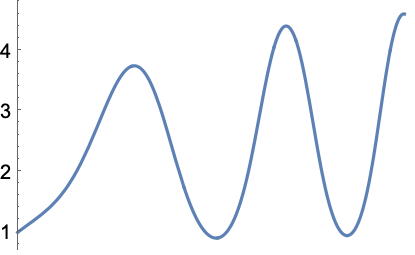

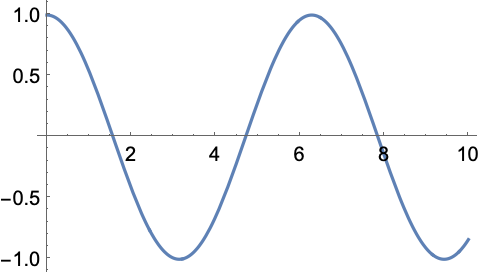

Plot the solution for :

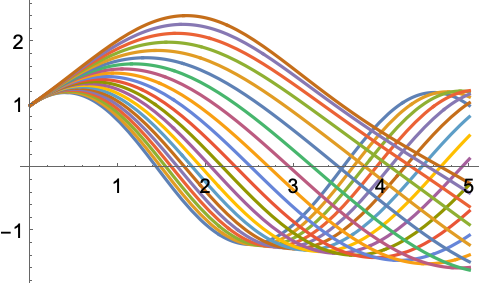

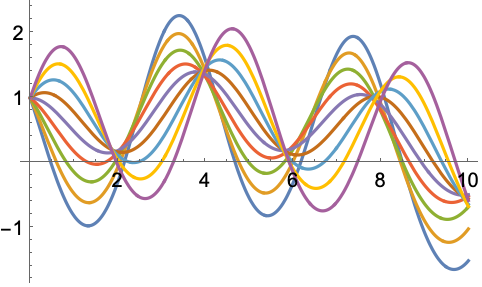

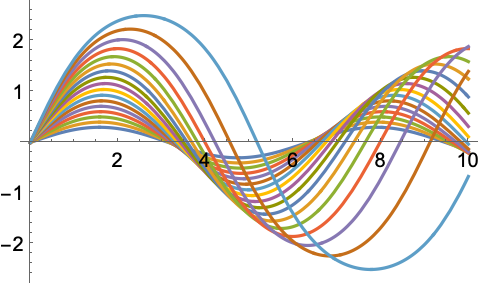

Plot solutions for values of ranging from to :

Initial conditions can be specified as parameters:

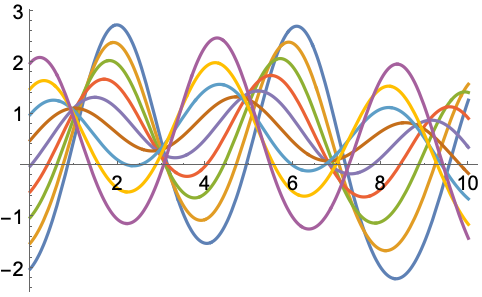

Plot solutions with with for values of ranging from to :

Plot solutions with with for values of ranging from to :

Return a function of the solution :

:

:

:

:

:

Differential equation coefficients and boundary conditions can be specified as parameters:

Plot solutions with for values of ranging from to and with and :

Parameter Sensitivity  (2)

Solve the classical harmonic oscillator with parametric amplitude a:

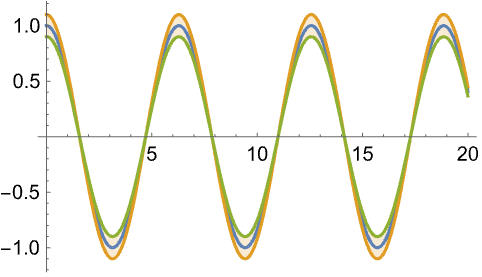

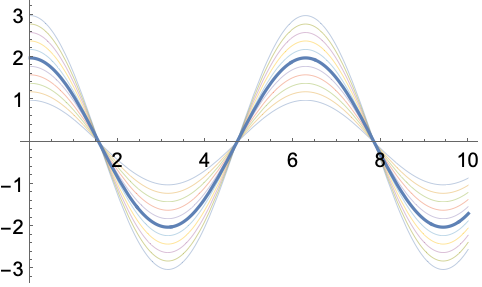

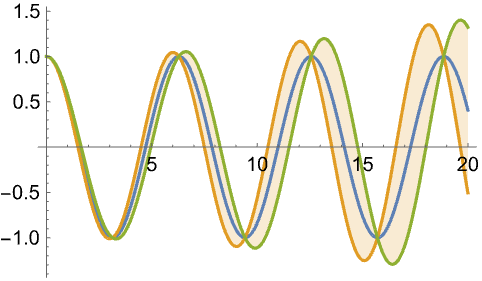

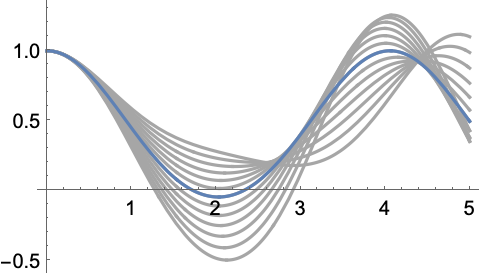

Plot the solution for and several nearby values of :

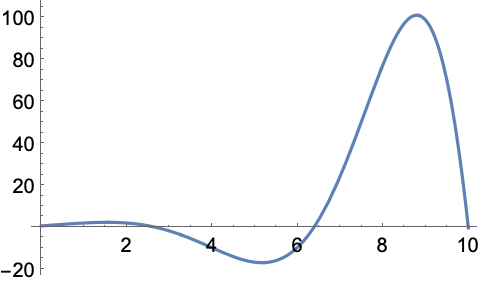

The sensitivity of with respect to is by definition . Plot the sensitivity at :

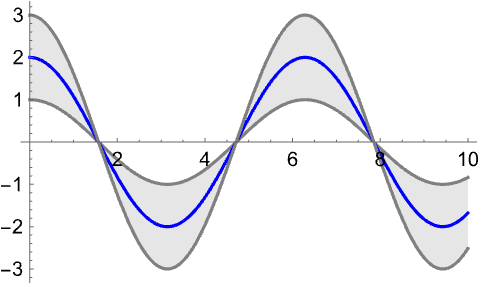

Plot the sensitivity as a band around the solution for :

Sensitivity analysis of a differential equation with multiple parameters:

Plot the sensitivity with respect to the initial condition at , :

Plot the sensitivity with respect to the initial condition at , :

Generalizations & Extensions  (2)

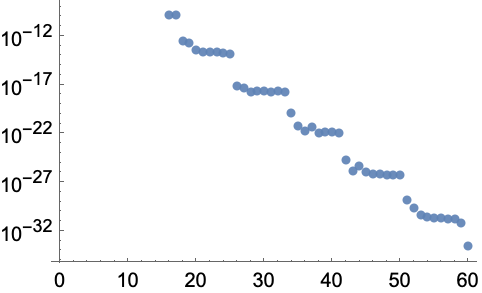

Solve , for various values of WorkingPrecision and plot the error:

Consider finding a solution to a highly nonlinear problem that NDSolveValue cannot solve directly. Set up a boundary condition, a region and the equation that depends on a parameter :

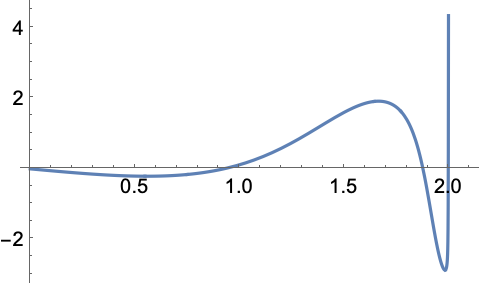

NDSolveValue cannot find a solution:

Set up an initial seeding function:

Create a ParametricNDSolveValue function based on the parameter :

Solve the equation for :

Reset the seeding to use the solution from :

With the reset seeding, find the solution for :

Visualize the solution:

Options  (2)

Method  (2)

ParametricCaching  (1)

Prevent caching of solutions to save memory:

With no caching, the only extra memory required is for the processed equations:

The default is to cache the most recently computed solution:

With caching, the memory requirement is much greater:

ParametricSensitivity  (1)

Specify that no sensitivity should be computed:

The function evaluates quickly:

The derivative is not computed:

Applications  (14)

Parameter Sweeps  (7)

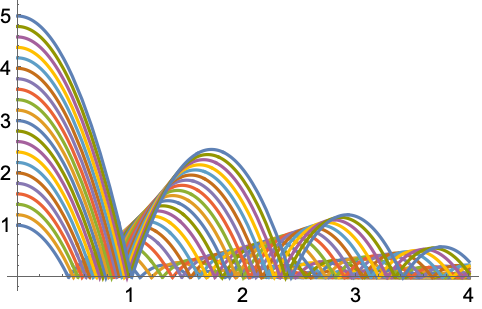

Simulate bouncing balls being dropped from various heights:

Find an initial value for which the solution of a differential equation will have :

Find a solution with :

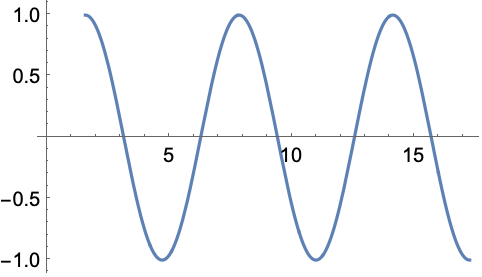

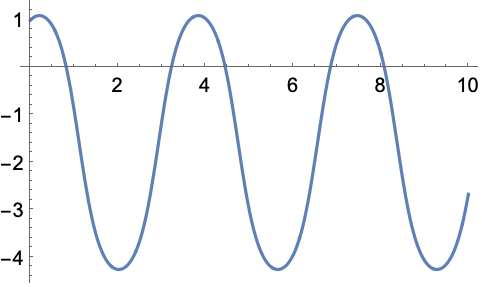

Check the resulting solution:

Compare to nearby values of the parameter s:

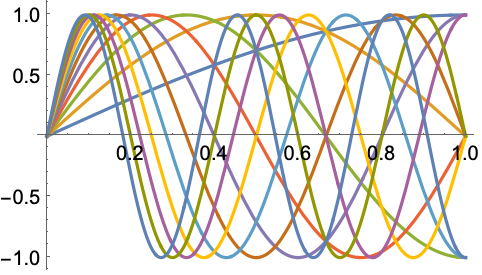

Find several solutions to the boundary value problem , , . First consider several possible values for :

Run a parameter sweep to determine nontrivial solution values of :

Using approximate initial values from the graph above:

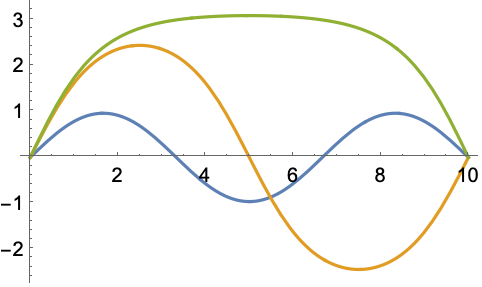

Plot the solutions that were found:

Find all eigenvalues and eigenfunctions for the classical harmonic oscillator with . Start by exploring the possible parameter values:

Find the exact values for :

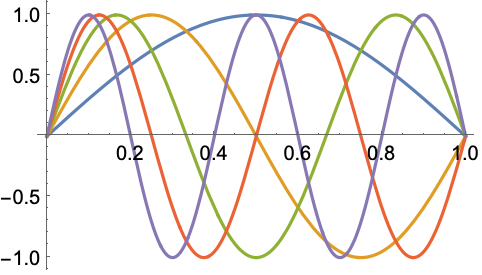

Plot them:

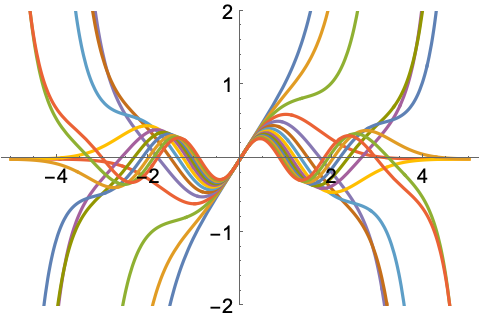

Find the first three eigenfunctions of the quantum harmonic oscillator , , lim_(TemplateBox[{x}, Abs]->infty) y(x)=0. Start by plotting solutions of for :

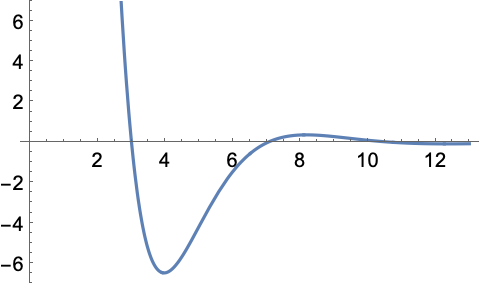

Plot for :

The roots are the approximate eigenvalues. Find the first three:

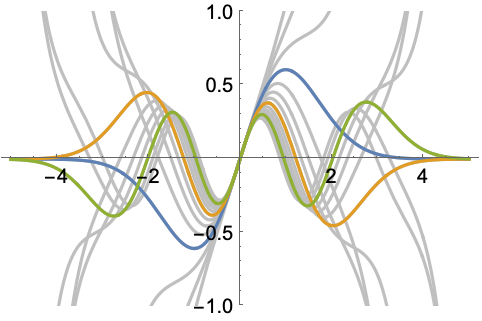

Plot the approximate eigenfunctions together with solutions for nearby :

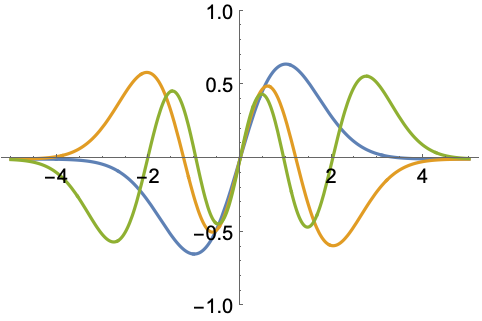

These only differ from the exact eigenfunctions, the Hermite functions, by scaling factors:

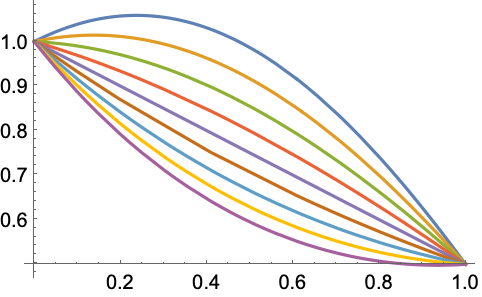

Find the value of for which the solution of , has minimal arc length from to . Begin by plotting the solutions for values of ranging from 0 to 1:

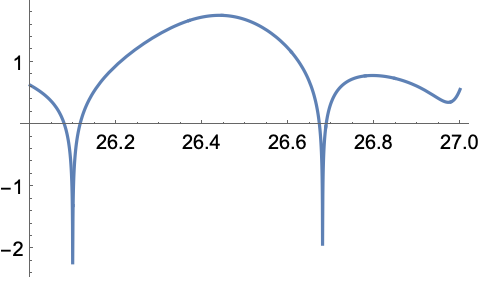

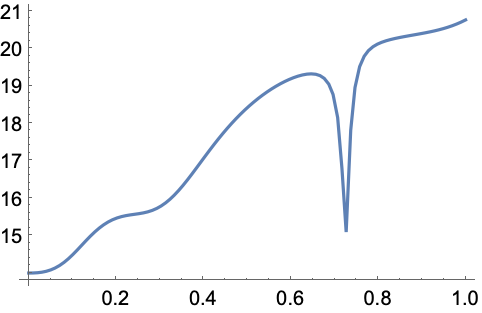

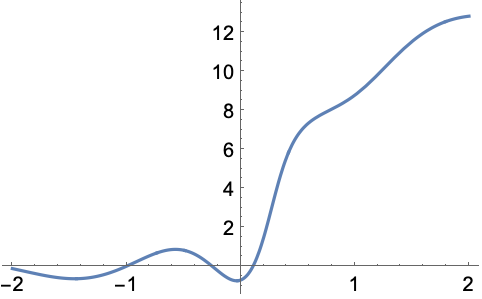

Plot versus the arc length of the solution:

The minimum arc length solution for seems to occur at :

Find the local minimum, which appears near :

Plot the corresponding solution of (locally) minimal arc length together with some nearby solutions:

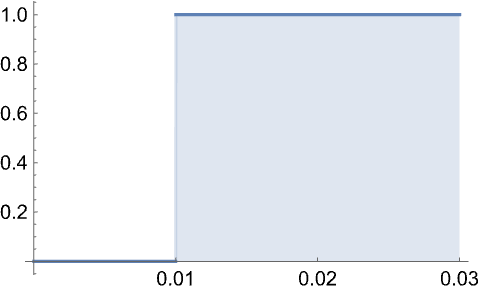

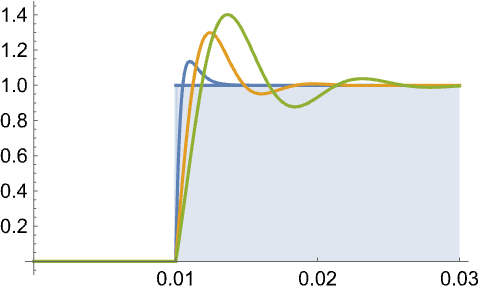

Simulate the response of an RLC circuit to a step in the voltage v1 at time :

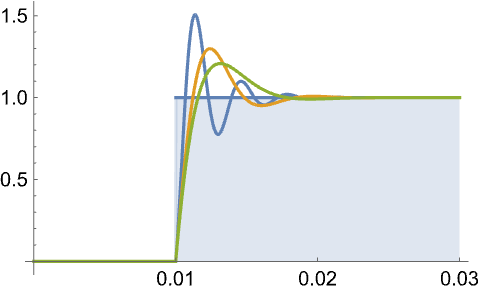

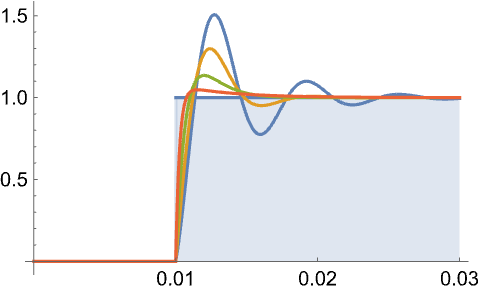

Show the step response when varying component values:

Dependence on resistance r:

The inductance l:

The capacitance c:

Parameter Sensitivities  (5)

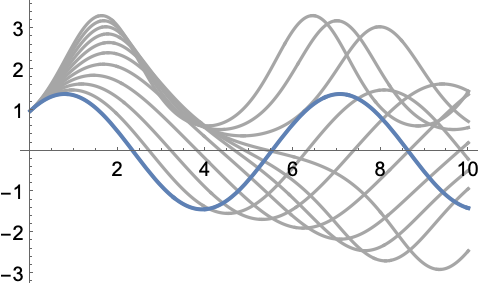

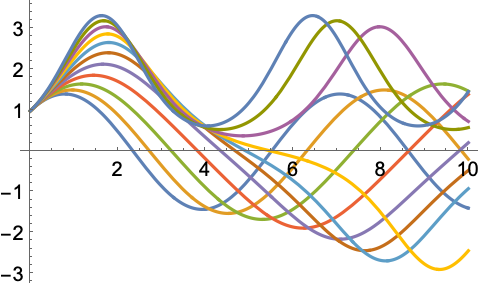

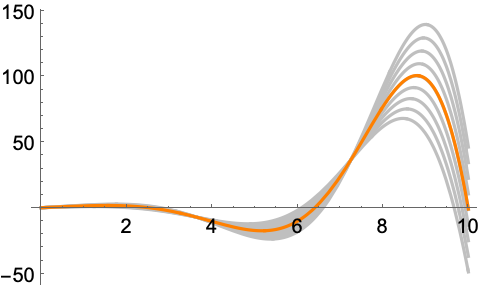

Perturb a parameter in a differential equation and view several of the resulting perturbed solutions:

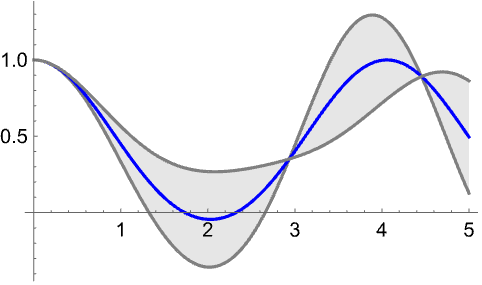

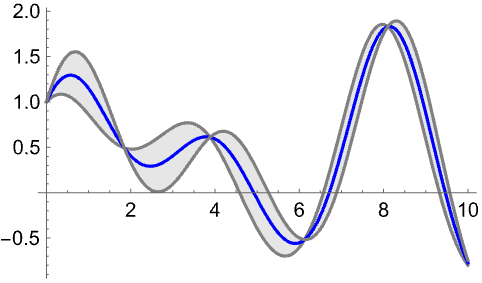

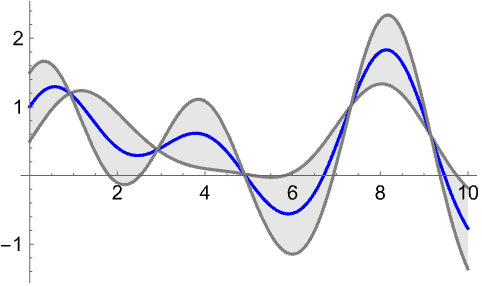

A plot of the solution with its sensitivity band is qualitatively similar:

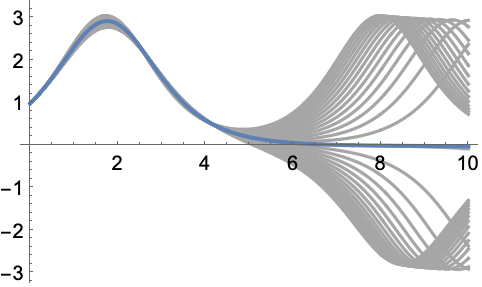

Simulate an inverted pendulum stabilized by a base oscillating with frequency ω and amplitude a:

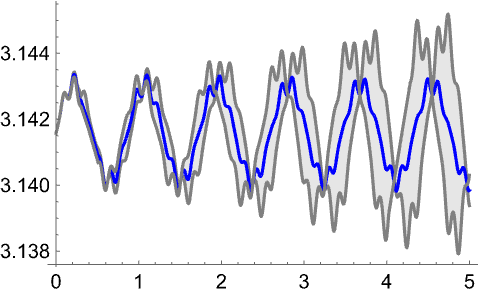

With , the pendulum is stabilized near an inverted position , but the sensitivity increases:

Find the sensitivity of the Lorenz equations to a parameter:

Parametric dependence of the heat equation , :

Find the sensitivities and :

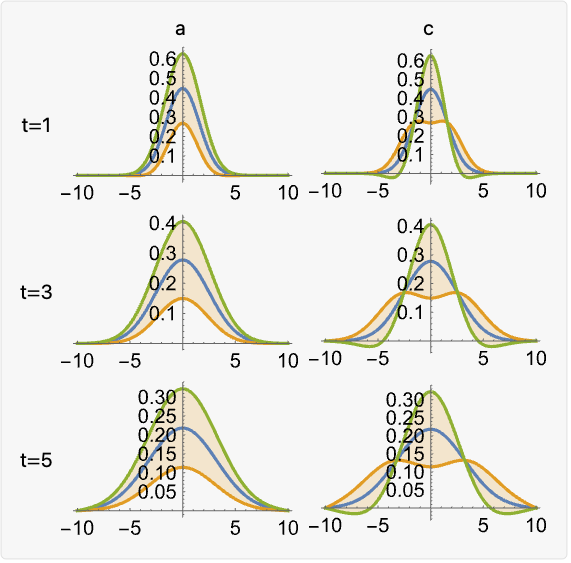

Plot the corresponding sensitivity bands:

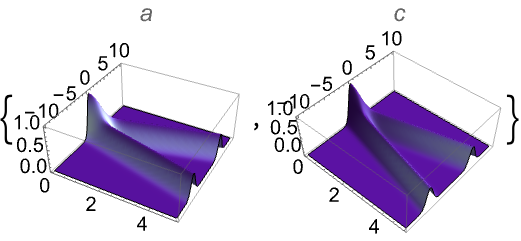

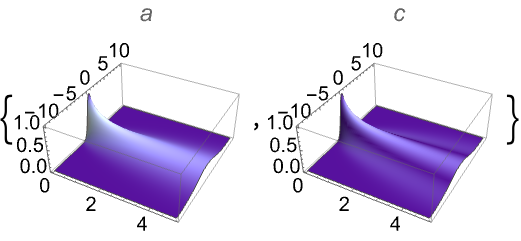

Indicate sensitivity to a and c by changing the color of the solution surface:

Parametric dependence of the wave equation , :

Find the sensitivities and :

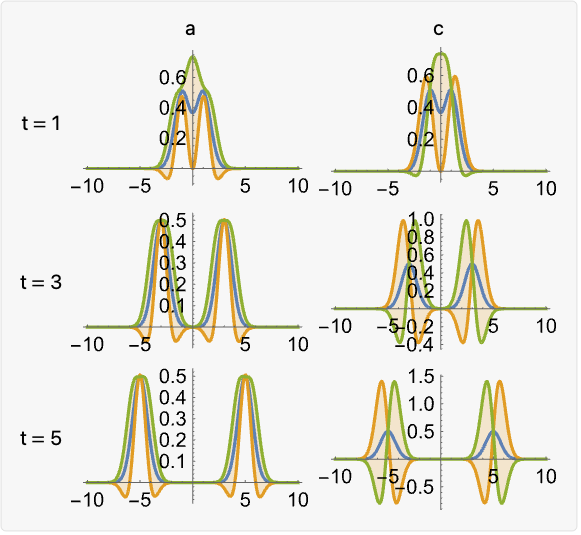

Plot the corresponding sensitivity bands:

Indicate sensitivity to a and c by changing the color of the solution surface:

Parameter Fitting  (2)

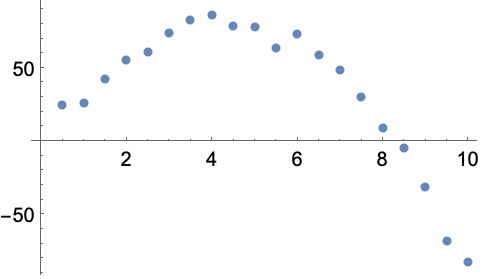

Sample the solution of a differential equation and add noise:

Fit a trigonometric model to the noisy data:

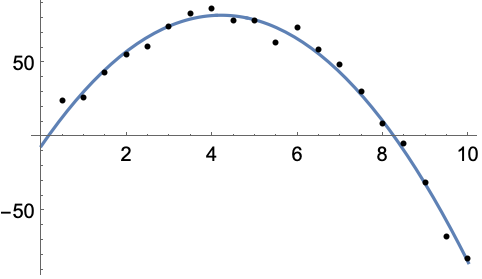

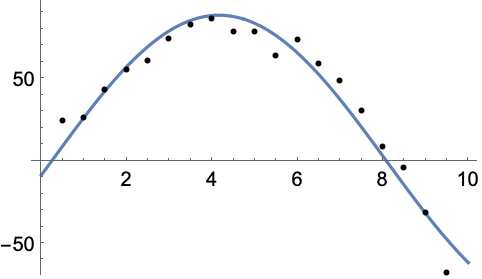

A quadratic model is a better fit:

Find the parameters that make the solution of a differential equation the best fit to data:

Convert data to kelvins and find initial and final (ambient) temperatures:

Find solutions to Newton's law of cooling depending on parameters k1 and k2:

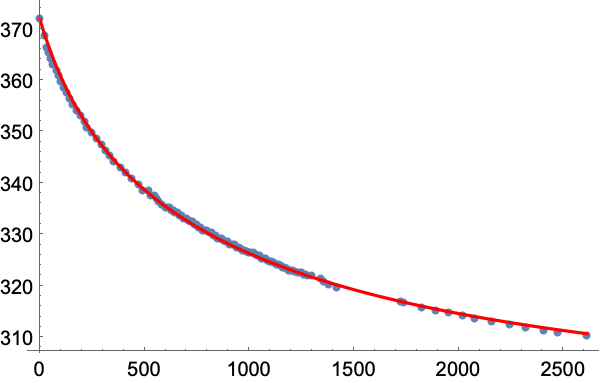

Fit the parameters in the differential equation to the given data:

Properties & Relations  (3)

Use NDSolveValue to solve differential equations with parameters:

For a given parameter value, each function call takes roughly the same amount of time:

ParametricNDSolve caches the solution and subsequently reuses the cached solution values:

DSolve can solve some differential equations with parameters in closed form:

Use ParametricNDSolveValue to solve the example numerically:

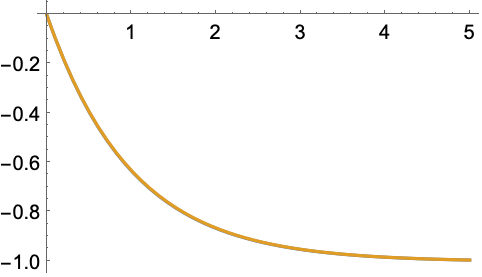

The sensitivity is the same from both paths:

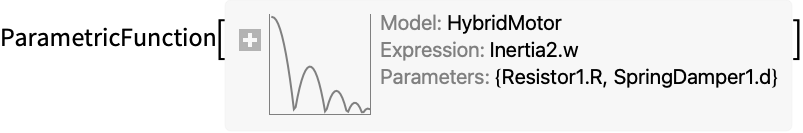

Use SystemModelParametricSimulate to simulate larger hierarchical system models:

Simulate with two sets of resistor and spring damper parameters:

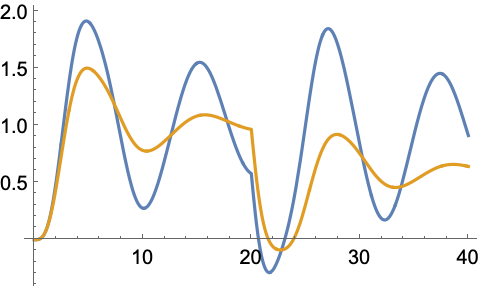

Compare the resulting angular velocities:

Possible Issues  (1)

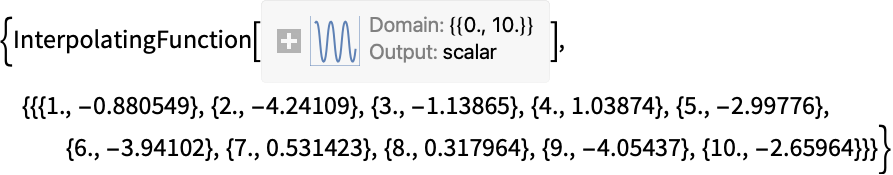

Solution sampling with WhenEvent, Reap, and Sow only works on the first call for each parameter value:

Values are not sown if the solution has already been cached:
