PenttinenPointProcess
✖
PenttinenPointProcess

[Experimental]

✖
PenttinenPointProcess[μ,γ,rp,d]

represents a Penttinen point process with constant intensity μ, interaction parameter γ and interaction radius rp in .

Details

  • PenttinenPointProcess is also known as pairwise area interaction process.
  • PenttinenPointProcess models point configurations where points have a pairwise repulsion that is log-linear in the measure of the overlap between balls around the points of radius rp, which are otherwise uniformly distributed.
  • The Penttinen model is typically used when the process interaction depends on the amount of shared resources within radius rp, such as plants, trees and nests of animals.
  • The Penttinen point process can be defined as a GibbsPointProcess in terms of its intensity μ and the pair potential ϕ or pair interaction h, which are both parametrized by γ and rp as follows:
  • pair potential
    pair interaction
  • Here is the measure of overlapping balls:
  • overlapping area in
    overlapping volume in
    1-r TemplateBox[{{{d, /, 2}, +, 1}}, Gamma] TemplateBox[{{1, /, 2}, {{(, {1, -, d}, )}, /, 2}, {3, /, 2}, {{(, {r, ^, 2}, )}, /, {(, {4, , {{r, _, p}, ^, 2}}, )}}}, Hypergeometric2F1]/(sqrt(pi) r_p TemplateBox[{{{(, {d, +, 1}, )}, /, 2}}, Gamma])overlapping measure in
  • A point configuration from a Penttinen point process in an observation region reg has density function proportional to mu^n product_(i!=j)h(TemplateBox[{{{p, _, i}, -, {p, _, j}}}, Norm]), with respect to PoissonPointProcess[1,d].
  • The Papangelou conditional density for adding a point to a point configuration is mu product_ih(TemplateBox[{{{p, _, i}, -, q}}, Norm]).
  • PenttinenPointProcess allows μ, γ and rp to be positive numbers such that , and d to be any positive integer.
  • PenttinenPointProcess simplifies to PoissonPointProcess when . Smaller values of gamma inhibit points within r_(p).
  • Possible Method settings in RandomPointConfiguration for StraussPointProcess are:
  • "MCMC"Markov chain Monte Carlo birth and death
    "Exact"coupling from the past
  • Possible PointProcessEstimator settings in EstimatedPointProcess for PenttinenPointProcess are:
  • Automaticautomatically choose the parameter estimator
    "MaximumPseudoLikelihood"maximize the pseudo-likelihood
  • PenttinenPointProcess can be used with such functions as RipleyK and RandomPointConfiguration.

Examples

open allclose all

Basic Examples  (2)Summary of the most common use cases

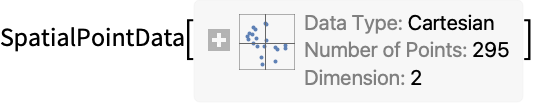

Sample from a Penttinen point process:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-2mnetb
In[2]:=2
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-cr2aru
In[3]:=3
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-tfb0w
Out[3]=3

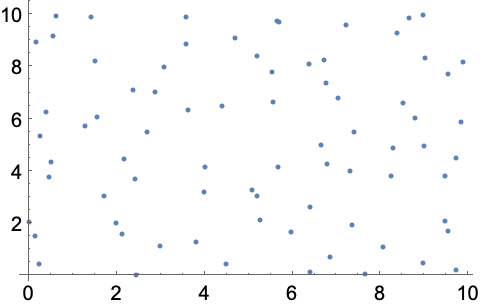

Visualize the points in the sample:

In[4]:=4
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-1pasjf
Out[4]=4

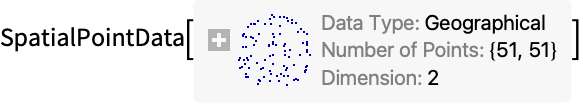

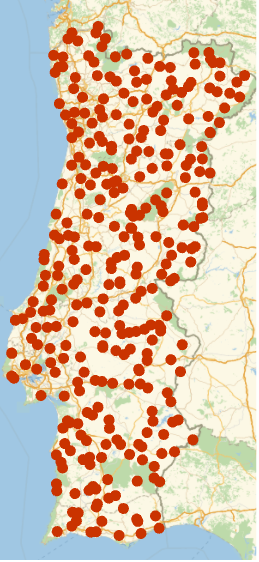

Sample from a Penttinen point process defined on the surface of the Earth:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-dm5er3
In[2]:=2
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-h6txtp
Out[2]=2

Visualize the points:

In[3]:=3
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-c96vjb
Out[3]=3

Scope  (2)Survey of the scope of standard use cases

Generate three realizations from a Penttinen point process:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-y8f38b
Out[1]=1
In[2]:=2
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-kv2ge2
Out[2]=2

Estimate the parameters:

In[3]:=3
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-casa32
Out[4]=4

Generate three realizations from a Penttinen point process on the surface of the Earth:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-omonh
In[2]:=2
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-ccigf0
In[3]:=3
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-2efjv
Out[3]=3

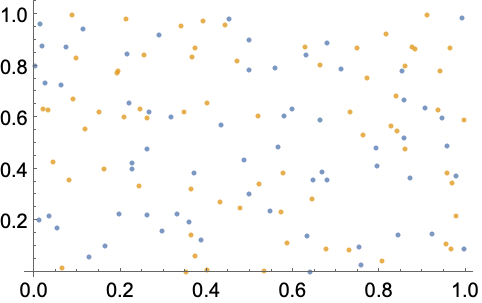

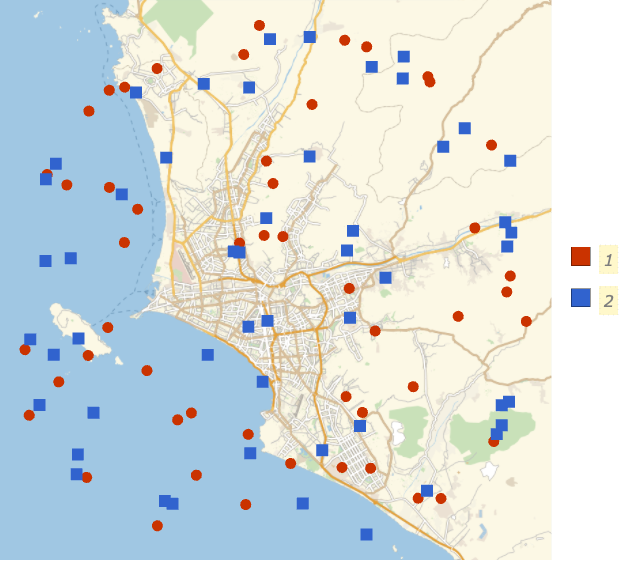

Visualize the point configurations:

In[4]:=4
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-nozzkz
Out[4]=4

Estimate the parameters:

In[5]:=5
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-e4zptm
Out[5]=5

Options  (3)Common values & functionality for each option

Method  (3)

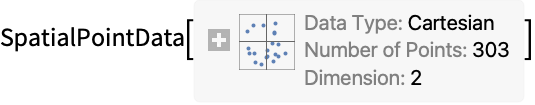

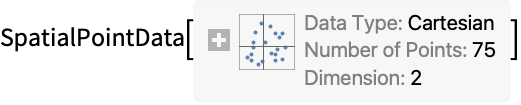

Sample using the Markov chain Monte Carlo method:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-mr431h
In[3]:=3
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-q096j
Out[3]=3

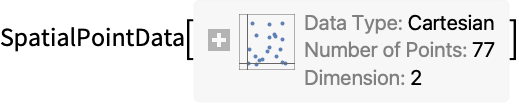

Specify the number of recursive calls to the sampler:

In[4]:=4
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-b28ma3
Out[4]=4

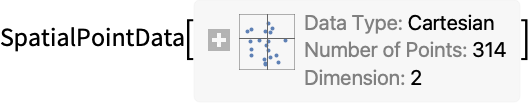

Specify the length of run:

In[5]:=5
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-hxjlyn
Out[5]=5

Provide an initial state for the simulation:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-gx4n0o
In[2]:=2
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-ca6pqg
Out[2]=2

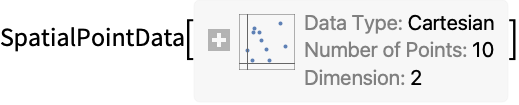

Sample using an exact method:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-6rjhmz
In[2]:=2
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-bdh1bd
In[3]:=3
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-hxc47q
Out[3]=3

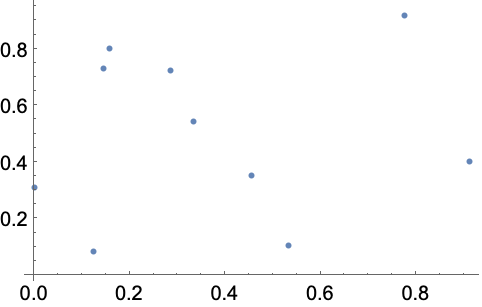

Visualize the points in the sample:

In[4]:=4
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-scg73
Out[4]=4

Possible Issues  (1)Common pitfalls and unexpected behavior

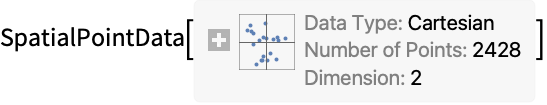

By default, the simulation will run until the number of points converges to a steady state, or until the default number of iterations is reached:

In[1]:=1
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-o98jqw
In[3]:=3
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-u8mwy4
Out[3]=3

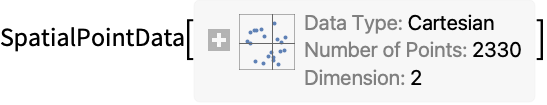

Raise the number of recursive calls to the sampler:

In[4]:=4
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-3b099d
Out[4]=4

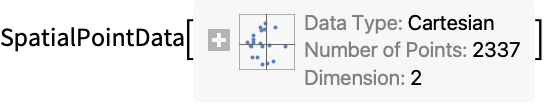

Specify a larger length of run:

In[5]:=5
✖
https://wolfram.com/xid/0g33v44ab0z9rrb1e-1mpfbh
Out[5]=5
