SectorChart

SectorChart[{{x1,y1},{x1,y2},}]

makes a sector chart with sector angles proportional to xi and radii yi.

SectorChart[{,wi[{xi,yi},],,wj[{xj,yj},],}]

makes a sector chart with sector features defined by the symbolic wrappers wk.

SectorChart[{data1,data2,}]

makes a sector chart from multiple datasets datai.

Details and Options

  • Data elements for SectorChart can be given in the following forms:
  • {xi,yi}pure sector angle and radius
    {Quantity[xi,ux],Quantity[yi,uy]}sector angle and radius with units
    wi[{xi,yi},]a sector with size {xi,yi} and wrapper wi
    formi->mia sector form with metadata mi
  • Data not given in these forms is ignored in forming the sector chart.
  • Datasets for SectorChart can be given in the following forms:
  • {e1,e2,}list of elements with or without wrappers
    <|k1e1,k2e2,|>association of keys and lengths
    TimeSeries[],EventSeries[],TemporalData[]time series, event series, and temporal data
    WeightedData[]dataset with weights
    w[{e1,e2,},]wrapper applied to a whole dataset
    w[{data1,data1,},]wrapper applied to all datasets
  • The following wrappers can be used for chart elements:
  • Annotation[e,label]provide an annotation
    Button[e,action]define an action to execute when the element is clicked
    Callout[e,label]display the element with a callout
    EventHandler[e,]define a general event handler for the element
    Hyperlink[e,uri]make the element act as a hyperlink
    Labeled[e,]display the element with labeling
    Legended[e,]include features of the element in a chart legend
    Mouseover[e,over]make the element show a mouseover form
    PopupWindow[e,cont]attach a popup window to the element
    StatusArea[e,label]display in the status area when the element is moused over
    Style[e,opts]show the element using the specified styles
    Tooltip[e,label]attach an arbitrary tooltip to the element
  • In SectorChart, Labeled, Callout and Placed allow the following positions:
  • "RadialOuter","RadialCenter","RadialInner"positions within sectors
    "RadialOutside","RadialInside","RadialEdge"positions outside sectors
    "RadialCallout"positions with callout lines
    {{sθ,sr},{lx,ly}}scaled position {lx,ly} in the label at scaled polar position {sθ,sr} in the sector
  • In SectorChart, Callout allows the following positions pos:
  • Automaticautomatic placement
    {x,y}position in the graphic
    Scaled[{sθ,sr}]scaled polar position {sθ,sr} in the sector
    {pos,{lx,ly}}scaled position {lx,ly} in the label at position pos
  • SectorChart has the same options as Graphics with the following additions and changes:
  • ChartBaseStyleAutomaticoverall style for sectors
    ChartElementFunctionAutomatichow to generate raw graphics for sectors
    ChartLabelsNonelabels for data elements and datasets
    ChartLayoutAutomaticoverall layout to use
    ChartLegendsNonelegends for data elements and datasets
    ChartStyleAutomaticstyle for sectors
    ColorFunctionAutomatichow to color sectors
    ColorFunctionScalingTruewhether to normalize arguments to ColorFunction
    LabelingFunctionAutomatichow to label sectors
    LabelingSizeAutomaticmaximum size of callouts and labels
    LegendAppearanceAutomaticoverall appearance of legends
    PerformanceGoal$PerformanceGoalaspects of performance to try to optimize
    PlotRangeAutomaticrange of values to include
    PlotTheme$PlotThemeoverall theme for the chart
    PolarAxesFalsewhether to draw polar axes
    PolarAxesOriginAutomaticwhere to draw polar axes
    PolarGridLinesNonepolar gridlines to draw
    PolarTicksAutomaticpolar axes ticks
    SectorOriginAutomaticinitial angle and radius of sectors
    SectorSpacingAutomaticspacing between sectors
    TargetUnitsAutomaticunits to display in the chart

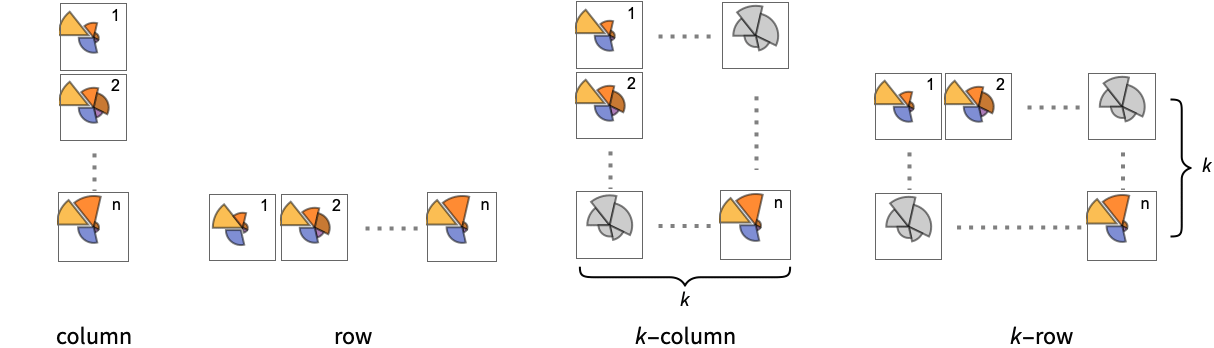

  • Possible settings for ChartLayout that show multiple datasets in a single display panel include:
  • "Grouped"separate the data for each dataset
    "Stacked"accumulate the data for each dataset
  • Possible settings for ChartLayout that show individual datasets in different panels include:
  • "Column"use separate group sectors in a column of panels
    "Row"use separate group sectors in a row of panels
    {"Column",k},{"Row",k}use k columns or rows
    {"Column",UpTo[k]},{"Row",UpTo[k]}use at most k columns or rows
  • The arguments supplied to ChartElementFunction are the sector region {{θmin,θmax},{rmin,rmax}}, the values {xi,yi}, and the metadata {m1,m2,} from each level in a nested list of datasets.
  • A list of built-in settings for ChartElementFunction can be obtained from ChartElementData["SectorChart"].
  • The arguments supplied to ColorFunction are θ and r, where θ is the angle of sector and r the radius.
  • Style and other specifications from options and other constructs in SectorChart are effectively applied in the order ChartStyle, ColorFunction, Style and other wrappers, and ChartElementFunction, with later specifications overriding earlier ones.

Examples

open allclose all

Basic Examples  (5)

A sector chart with the second component representing the radial size:

An annular sector chart:

Multiple datasets:

Show multiple sets as a row of sector charts:

Use categorical labels:

Categorical legends:

Set the style for sectors:

Scope  (38)

Data and Layouts  (13)

Items in a dataset are grouped together:

Datasets do not need to have the same number of items:

Nonreal data is taken to be missing and typically is ignored in the pie chart:

The data may include units:

The time stamps in TimeSeries, EventSeries, and TemporalData are ignored:

The values in associations are taken as the values of the sectors:

Use the keys as labels:

Use the keys as callouts:

Use the keys as legends:

Associations can be nested:

The weights in WeightedData are ignored:

Use different layouts to display multiple datasets:

Use a row of sector charts:

Use a column of sector charts:

Multiple rows or columns:

Control the direction of sectors:

Control the starting angle of sectors:

Control the starting radius of sectors:

Adjust the spacing between sectors and groups of sectors:

Wrappers  (4)

Use wrappers on individual data, datasets, or collections of datasets:

Wrappers can be nested:

Override the default tooltips:

Use any object in the tooltip:

Use PopupWindow to provide additional dropdown information:

Button can be used to trigger any action:

Styling and Appearance  (9)

Use an explicit list of styles for the sectors:

Use any gradient or indexed color schemes from ColorData:

Use color schemes designed for charting:

Use themes to control the overall appearance:

ChartBaseStyle can be used to set an initial style for all chart elements:

Style can be used to override styles:

Use built-in programmatically generated sectors:

For detailed settings, use Palettes ChartElementSchemes:

Use a theme with dark background and bezel sectors:

Use a monochrome theme:

Labeling and Legending  (12)

Use Labeled to add a label to a sector:

Use symbolic positions for label placement:

Provide categorical labels for the columns of data:

For rows of data:

For both:

Use Placed to control the positioning of labels, using the same positions as for Labeled:

Use Callout to add a label to a sector:

Change the appearance of the callout:

Automatically position callouts:

Provide value labels for sectors by using LabelingFunction:

Generate callouts from the data:

Add categorical legend entries for the columns of data:

For rows of data:

Use Legended to add additional legend entries:

Use Placed to affect the positioning of legends:

Options  (56)

ChartBaseStyle  (5)

Use ChartBaseStyle to style all sectors:

ChartBaseStyle combines with ChartStyle:

ChartStyle may override settings for ChartBaseStyle:

ChartBaseStyle combines with Style:

Style may override settings for ChartBaseStyle:

ChartBaseStyle combines with ColorFunction:

ColorFunction may override settings for ChartBaseStyle:

ChartElementFunction  (5)

Get a list of built-in settings for ChartElementFunction:

For detailed settings, use Palettes ChartElementSchemes:

Use ChartElementData to specify the same chart element rendering function as above:

Write a custom ChartElementFunction:

Use metadata passed on from the input, in this case charting the data:

ChartLabels  (8)

By default, labels are placed in the center:

Labeled wrappers in data will place additional labels:

Use Placed to control label placement:

Positions outside the sector:

Callout positions:

Coordinate-based placement relative to a sector:

Place all labels at the first outer corner and vary the coordinates within the label:

Use the third argument to Placed to control formatting:

Use a hyperlink label:

By default, labels are associated with columns of data:

Associate labels with rows or datasets:

Label both rows and columns:

Use Placed to affect placements:

Use Callout to connect the labels to the sectors:

Place multiple labels:

ChartLayout  (4)

ChartLayout is grouped by default in concentric rings:

Use stacked sectors:

The stacked layout can display many datasets:

Place each of the sectors in a separate panel using shared scales:

Use a row instead of a column:

Use multiple columns or rows:

Prefer full columns or rows:

ChartLegends  (4)

Generate a legend based on chart style:

Use Legended to add additional legend entries:

Or to specify individual legend entries:

Generate a legend for datasets:

Unused legend labels are dropped:

Legends can be applied to several dimensions:

Use Placed to control the placement of legends:

ChartStyle  (6)

Use ChartStyle to style sectors:

Give a list of styles:

Use "Gradient" colors from ColorData:

Use "Indexed" colors from ColorData:

Styles are used cyclically:

Style each column of data:

Style each row of data:

Style both rows and columns of data:

With both row and column styles the last style may override earlier ones:

Style overrides settings for ChartStyle:

ColorFunction overrides settings for ChartStyle:

ColorFunction  (4)

Color by sector angle:

Use ColorFunctionScaling->False to get unscaled angular values:

Color by area:

ColorFunction overrides styles in ChartStyle:

Use ColorFunction to combine different style effects:

ColorFunctionScaling  (2)

Use ColorFunctionScaling->False to get unscaled height values:

Color by area:

ImageSize  (7)

Use named sizes, such as Tiny, Small, Medium and Large:

Specify the width of the plot:

Specify the height of the plot:

Allow the width and height to be up to a certain size:

Specify the width and height for a graphic, padding with space if necessary:

Use maximum sizes for the width and height:

Use ImageSizeFull to fill the available space in an object:

Specify the image size as a fraction of the available space:

LabelingFunction  (8)

Use automatic labeling by values through Tooltip and StatusArea:

Do no labeling:

Use Placed to control label placement:

Symbolic positions outside the sector:

Positions for callout labels:

Coordinate-based placement relative to a bar:

Use Callout to place labels automatically:

Control the formatting of labels:

Use the given chart labels as arguments to the labeling function:

LabelingSize  (3)

Textual labels are shown at their actual sizes:

Image labels are automatically resized:

Specify a maximum size for textual labels:

Specify a maximum size for image labels:

Applications  (7)

Generate a sector graph:

Generate a vector graph:

Generate a circular column graph:

Click on the sectors to hear the name of the country, its GDP per capita, and population:

Create a radar graph of nutritional content:

Visualizing GDP per capita:

Add a fancy Tooltip label for each sector:

Wind direction from WeatherData ranges from 0° to 360°:

Get wind direction data for Willard Airport (CMI) in Champaign, Illinois:

Remove missing data:

Define a chart element function that stores bin width and count data using Sow:

Create a histogram of the wind directions, and store the bin width and frequencies:

Create a polar histogram of the wind direction frequencies:

Properties & Relations  (4)

SectorChart is a generalization of PieChart:

Use SectorChart3D to render sectors in 3D:

Use RectangleChart to render pairs as bars:

Use ListPlot and ListLinePlot to produce line graphs from pairs of numbers:

Neat Examples  (3)

Detailed chart using ticks:

Detailed chart using grid lines:

Here is some chart work:

Wolfram Research (2008), SectorChart, Wolfram Language function, https://reference.wolfram.com/language/ref/SectorChart.html (updated 13).

Text

Wolfram Research (2008), SectorChart, Wolfram Language function, https://reference.wolfram.com/language/ref/SectorChart.html (updated 13).

CMS

Wolfram Language. 2008. "SectorChart." Wolfram Language & System Documentation Center. Wolfram Research. Last Modified 13. https://reference.wolfram.com/language/ref/SectorChart.html.

APA

Wolfram Language. (2008). SectorChart. Wolfram Language & System Documentation Center. Retrieved from https://reference.wolfram.com/language/ref/SectorChart.html

BibTeX

@misc{reference.wolfram_2021_sectorchart, author="Wolfram Research", title="{SectorChart}", year="13", howpublished="\url{https://reference.wolfram.com/language/ref/SectorChart.html}", note=[Accessed: 21-May-2022 ]}

BibLaTeX

@online{reference.wolfram_2021_sectorchart, organization={Wolfram Research}, title={SectorChart}, year={13}, url={https://reference.wolfram.com/language/ref/SectorChart.html}, note=[Accessed: 21-May-2022 ]}
